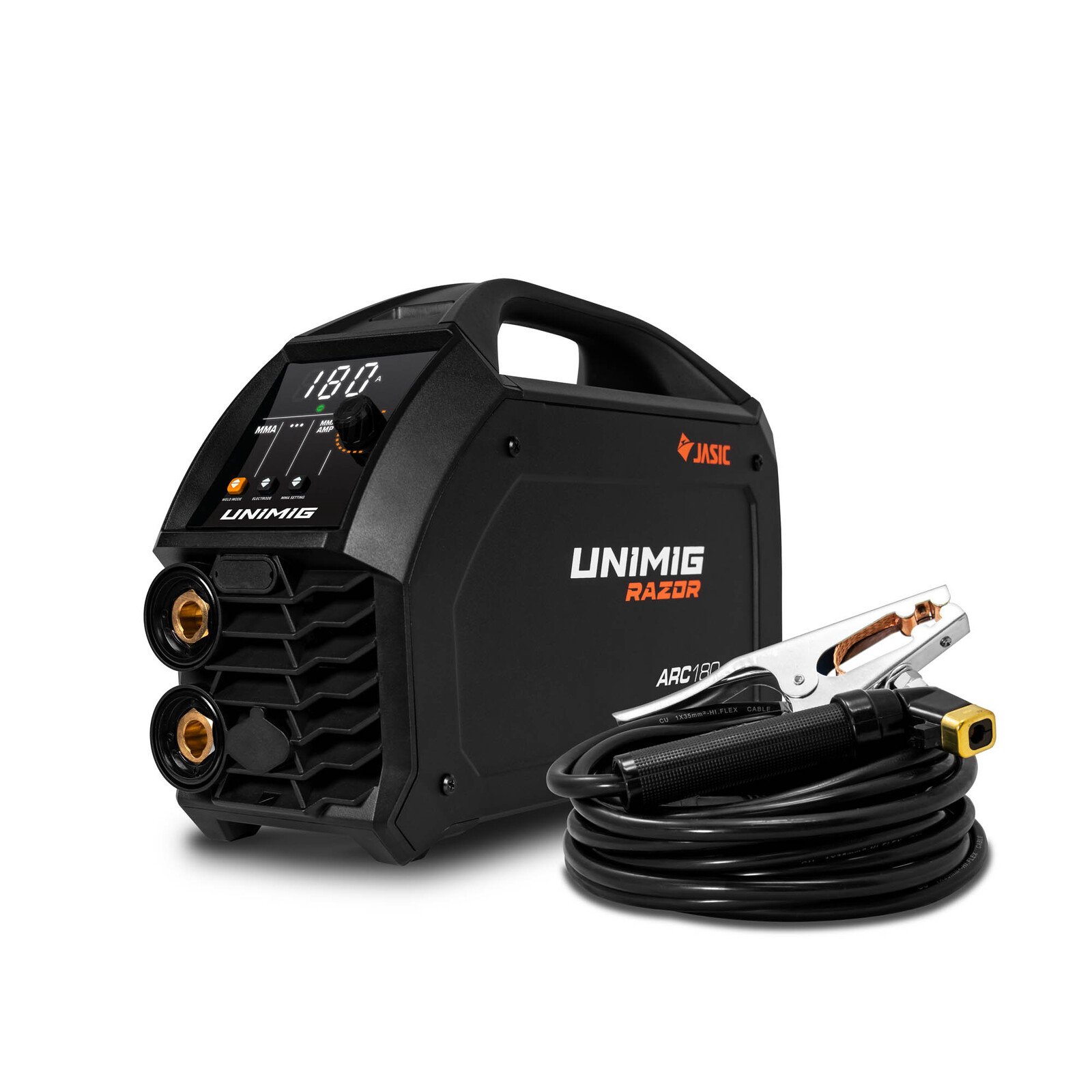

UNIMIG Razor 180 AMP MMA/TIG Caddy Welder
$599.00
Product Introduction
The UNIMIG Razor 180 AMP MMA Stick/TIG Caddy Welder features advanced IGBT inverter technology, offering smooth DC MMA and Lift TIG welding for mild steel, stainless steel, cast iron, copper, and more. Compact (370¡Á125¡Á255mm) and portable (5.8kg), it’s ideal for light industrial, farming, and repair applications, with a 5-year warranty.
Product Specifications
| Input Voltage | 240V Single Phase |
| Welding Current Range | MMA:20-180A; TIG:10-180A |
| Key Features | IGBT Inverter, VRD, Hot Start, Arc Force |
| Weight | 5.8kg |
| Warranty | 5 Years |
UNIMIG Razor 180 AMP MMA Stick / TIG Caddy Welder: Professional Welding Solution for Precision & Power
Core Specifications
| Input Voltage | 240V Single Phase (15 AMP Plug) |
| Welding Processes | DC MMA (Stick) & DC Lift TIG |
| Current Range | MMA: 20-180A; TIG: 10-180A |
| Duty Cycle (40¡ãC) | MMA: 20%@180A, 100%@81A; TIG: 25%@180A, 100%@90A |
| Material Compatibility | Mild Steel, Stainless Steel, Cast Iron (MMA); Copper, Bronze (TIG) |
| Key Features | IGBT Inverter, Hot Start, Keyable VRD, Arc Force, Lift Arc Ignition |
| Generator Compatibility | Minimum 10.0 KVA |
| Dimensions | 370¡Á125¡Á255 mm |
| Weight | 5.8 kg |
| Warranty | 5-Year National Warranty |
Why Choose UNIMIG Razor 180?
Engineered with cutting-edge IGBT inverter technology, the Razor 180 delivers a smooth, stable arc for flawless welds on diverse materials. Its dual MMA/TIG capability makes it ideal for light industrial projects, farming, site welding, and repairs. The compact design (5.8kg) and robust carry case ensure portability without sacrificing power.
Superior Performance
– Hot Start & Arc Force: Effortless electrode ignition and consistent current to prevent extinguishing.
– Lift Arc TIG: Minimizes tungsten sticking, ensuring precise, high-quality TIG welds (1-6mm thickness).
– VRD Protection: Keyable voltage reduction for safe arc striking with hard-to-start electrodes.
Package Includes
– RAZOR ARC 180 PFC Welder
– 4m Twist Lock Electrode Holder
– 4m 300 Amp Earth Clamp & Lead
– Operating Manual (TIG torch sold separately as combo kit U13005_TIG-COMBO)
Applications
Perfect for mild steel, stainless steel, cast iron (MMA), and copper/bronze (TIG). Ideal for metal fabrication, automotive repair, agricultural equipment maintenance, and DIY projects.
Quality You Can Trust
Complies with AS/NZ60974.1 standards and backed by a 5-year warranty through UNIMIG dealers. Built to withstand variable power supplies and generator use (10KVA minimum).
FAQ
– Q: What electrode sizes can it handle? A: 2.5-4.0mm for MMA.
– Q: Is it suitable for home use? A: Yes, with 240V single-phase input.
– Q: Can I use it with a generator? A: Yes, recommend 10.0 KVA minimum.
Ready to Elevate Your Welding Projects?
Contact us now for bulk pricing, technical support, or to customize your order. Experience professional-grade welding performance with UNIMIG Razor 180!
