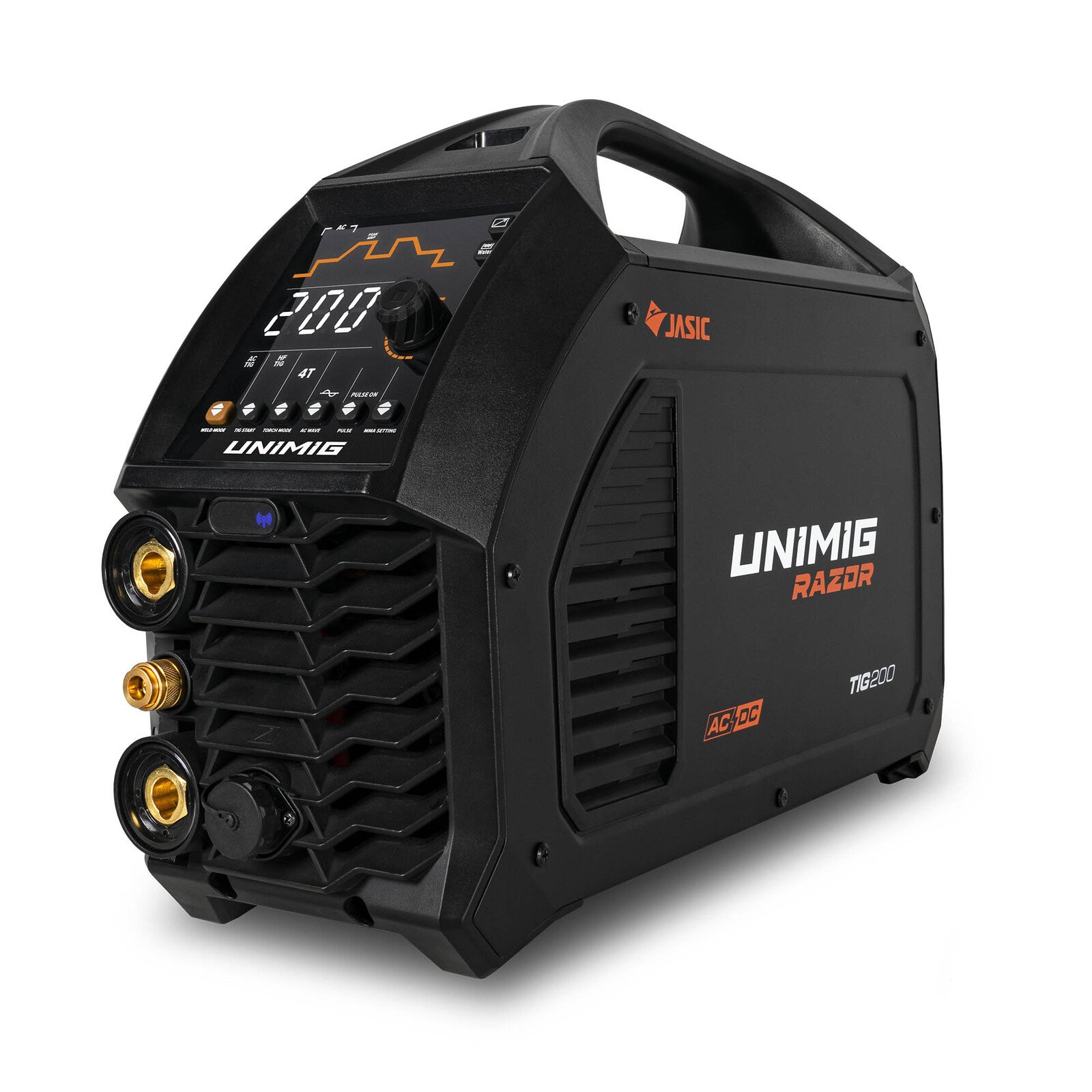

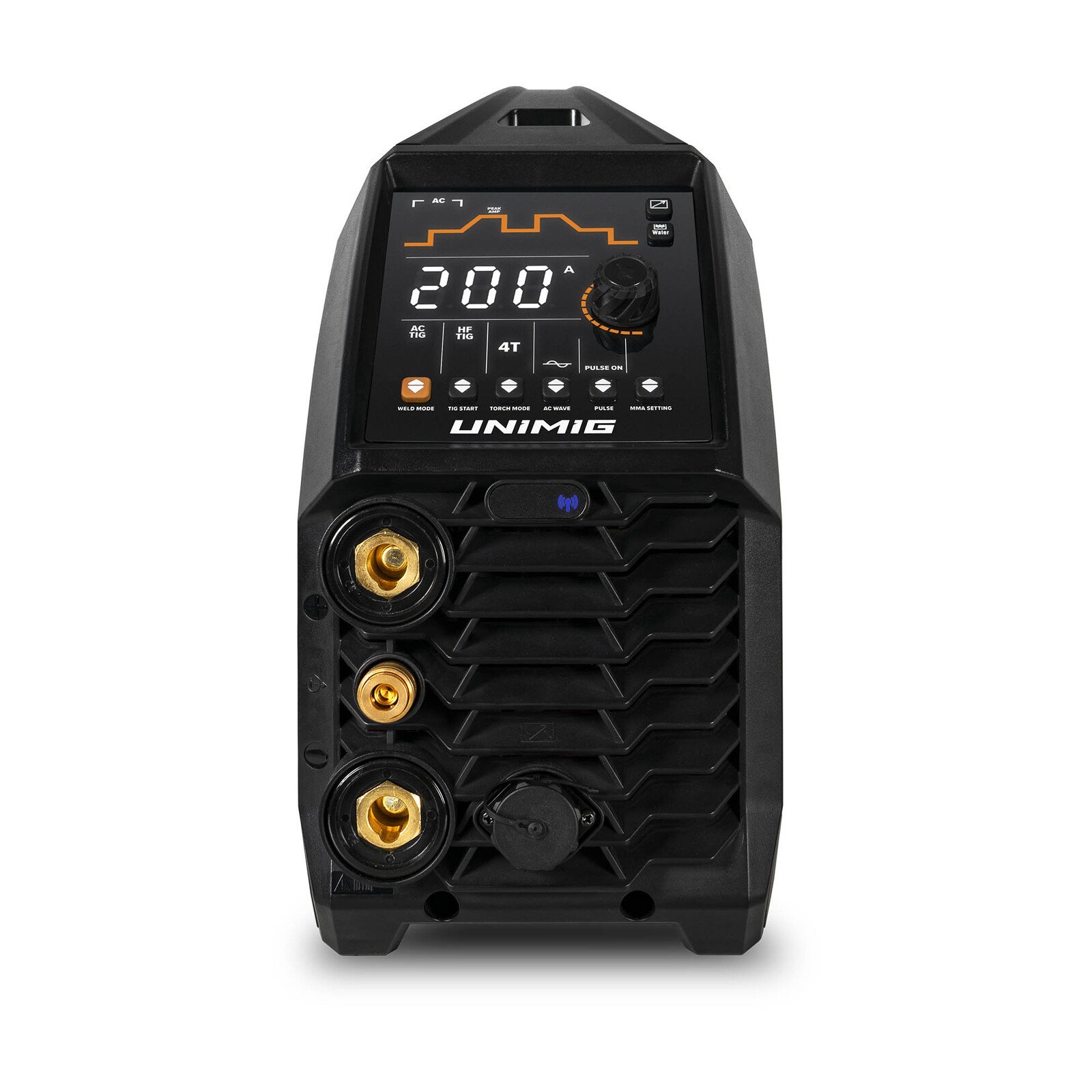

UNIMIG Razor U12002K 200A ACDC Pulse TIG Welder
$2,079.00
Product Introduction
The UNIMIG Razor Digital Pulse ACDC 200 Amp Inverter TIG Welder U12002K offers professional AC/DC HF TIG and MMA welding with Pulse function, ideal for various materials like Aluminium, Stainless Steel, and Mild Steel. Features 5-200A TIG current, 20-160A Stick range, and comes with T2 TIG Torch, Earth Clamp, and 5-year warranty.
Key Specifications
| Input Voltage | 240V Single Phase |
| Welding Current (TIG) | 5-200A |
| Welding Current (Stick) | 20-160A |
| Functions | AC/DC HF TIG, Pulse, MMA |
| Weight | 11.7kg |
UNIMIG Razor Digital Pulse ACDC 200 Amp Inverter TIG Welder U12002K – Professional-Grade Welding Precision
Core Specifications
| Function | AC/DC HF TIG & Pulse TIG, MMA |
| Welding Current Range | TIG: 5-200A, MMA: 20-160A |
| Input Voltage | 240V Single Phase (10 AMP Plug) |
| Duty Cycle (40¡ãC) | 20%@200A, 60%@115A, 100%@90A (TIG) |
| Pulse Control | 0.2-200Hz Frequency, 10-90% Pulse Width |
| AC Balance & Frequency | Adjustable Balance, 20-250Hz Square Wave |
| Torch | ARC TORCHOLOGY T2 (30% Better Power-to-Weight Ratio) |
| Material Compatibility | Aluminium, Steel, Stainless Steel, Titanium, Copper |
| Dimensions | 500¡Á170¡Á340mm, 11.7kg |
| Warranty | 5-Year Nationwide Coverage |
Why Choose the RAZOR? 200 AC/DC?
Experience unmatched precision with High Frequency TIG ignition¡ªstart arcs without workpiece contact, eliminating tungsten contamination. The Pulse TIG function minimizes heat input for distortion-free welding on thin materials (1-8mm TIG, 2-10mm MMA). Its 43KHz inverter technology delivers stable performance, while adjustable pre/post gas times and slope controls ensure professional results every time.
Applications & Versatility
Ideal for workshops, job sites, and fabrication shops. Welds aluminium, stainless steel, mild steel, titanium, and more. Compatible with remote foot control for hands-free amperage adjustment, boosting workflow efficiency. Perfect for automotive repairs, aerospace components, and custom metal projects.
Included Accessories

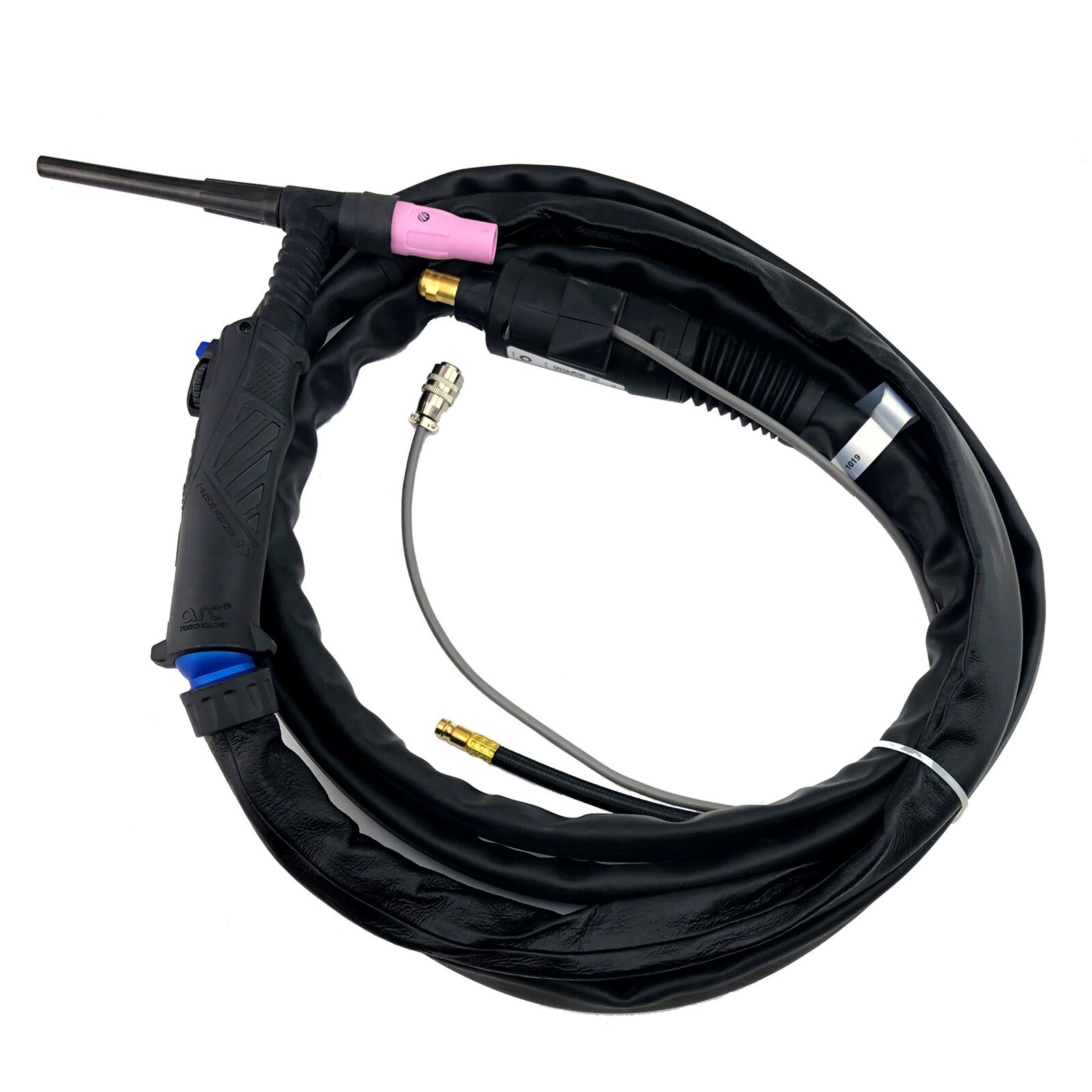

Comes complete with 8m T2 TIG Torch, 4m electrode holder, 300A earth clamp, argon flowmeter, 1.8m gas hose, and operating manual. Add the UNIMIG 8m 360A Push Pull MIG Torch (U41002) for expanded capabilities.
Quality You Can Trust
Built to AS/NZ60974-1 standards with IP23S protection and H-class insulation. Backed by a 5-year warranty through UNIMIG dealers, ensuring long-term reliability for professional use.
FAQ
– Q: What generator size is required? A: Minimum 8.0kVA.
– Q: Can I use MMA electrodes? A: Yes, supports 2.5-4.0mm electrodes.
– Q: Is the torch air-cooled? A: Yes, the T2 torch features efficient air cooling.
Ready to Elevate Your Welding?
Contact us today for bulk pricing, technical support, or to discuss custom solutions. Perfect for manufacturers and distributors seeking premium welding equipment.
Packaging & Transportation
