Cigweld

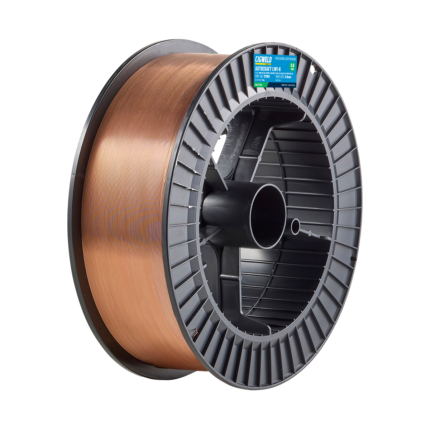

15kg 0.9mm Cigweld LW1-6 ER70S-6 Mild Steel MIG Wire
Product Introduction
Autocraft LW1-6 is a high quality copper coated mild steel MIG welding wire, ideal for all positional GMAW of mild and low alloy steels. It offers excellent operator appeal, improved fillet shape, and low spatter.
Product Specifications
| Grade | ER70S-6 |
| Diameter | 0.9mm |
| Spool Weight | 15kg |
| Spool Bore | 52mm |
| Brand | CIGWELD |
15kg 1.0mm CIGWELD Autocraft LW1-6 MIG Wire 720094
15kg 1.2mm 316LT Cigweld Verti-Cor Flux Cored Welding Wire
Product Description
15kg spool of 1.2mm 316LT Cigweld Verti-Cor flux cored stainless steel welding wire. Designed for low carbon 18%Cr-12%Ni-2%Mo stainless steel, ideal for chemical engineering and power plants. Features E316LT1-1/4 grade, smooth feeding, minimal spatter, and excellent bead appearance with CO2 or Ar+>20%CO2 shielding gas.
Specifications
| Grade | E316LT1-1/4 |
| Diameter | 1.2mm |
| Spool Weight | 15kg |
| Bore Size | 52mm |
| Shield Gas | CO2 or Ar+>20%CO2 |
15kg 1.2mm CIGWELD Verti-Cor Ultra Flux Cored MIG Wire
Product Parameters
| Diameter | 1.2mm |
| Weight | 15kg |
| Type | Rutile Flux Cored |
| Shielding Gas | CO2 Required |
| Position | All-position |
Description
CIGWELD Verti-Cor Ultra Flux Cored MIG Wire is a smooth-running all-position wire for mild/medium strength steels. Offers low spatter, fume levels, excellent operator appeal. Ideal for general steel construction/fabrication where downhand rotation isn't possible.
15kg 1.2mm ER110S-G Mild Steel MIG Welding Wire
Product Description
ER110S-G is a copper-coated low alloy solid MIG wire for high-strength Q&T steels, offering 800N/mm2 tensile strength and good low-temperature toughness. Ideal for all positional welding with Argon 5-25% CO2 shielding gas.
Specifications
| Classification | ER110S-G |
| Diameter | 1.2mm |
| Weight | 15kg Spool |
| Type | Solid, Copper Coated, Gas Shielded |
15kg 1.2mm ER308LSi Stainless MIG Welding Wire for 304
Product Introduction
ER308LSi stainless MIG welding wire, 1.2mm diameter, 15kg spool, ideal for general purpose welding of 304 grade and other stainless steels. Ensures low carbon content to prevent intergranular cracking, with bright finish welds. Premium quality with certificate of conformance, suitable for exhaust headers, chemical tanks, and restaurant equipment.Product Parameters
| Grade | ER308LSi |
| Diameter | 1.2mm |
| Weight | 15Kg |
| Spool OD | 300mm |
| Spool ID | 51mm |
15kg 1.2mm ER316LSi Stainless Steel MIG Welding Wire 721287
Product Parameters
| Grade | ER316LSi |
| Diameter | 1.2mm |
| Weight | 15kg |
| Brand | Cigweld |
| Spool O.D./I.D. | 300mm/51mm |
Description
Hampdon Industrial premium Omega MIG welding wire with increased silicon for improved wetting and smooth bead appearance. Optimal for quality welds where appearance matters. Includes certificate of conformance, ideal for manufacturers data reports (MDR).
15m Oxy Acetylene Twin Hose 5/8 UNF Fittings
Product Introduction
A top-of-the-line 15m oxy/acetylene twin hose for gas industry welding/cutting equipment. Features simultaneous gas flow, high-quality rubber construction, and compliance with Australian Standard 1335 for reliable performance.
Specifications
| Length | 15 Metre |
| Fittings | 5/8 UNF L/H & R/H |
| Inside Diameter | 5mm |
| Outside Diameter | 12.2mm |
| Standard | Australian Standard 1335 |
240A 8m Spool Gun W4011250 for CIGWELD MIG
Product Description
Premium 240 Amp spool gun value pack for CIGWELD MIG machines, featuring 8m cable, 24V DC motor, and Binzel MB24 consumables. Ideal for aluminium welding with 0.8-0.9mm wire, includes 31-piece consumable kit and 2 rolls of 0.8mm aluminium wire. 12-month warranty.Specifications
| Amperage | 240 Amp (CO2 @ 30% duty cycle) |
| Cable Length | 8 meters |
| Wire Size | 0.8mm - 0.9mm |
| Motor | 24V DC |
| Compatibility | Most CIGWELD MIG machines (see list) |

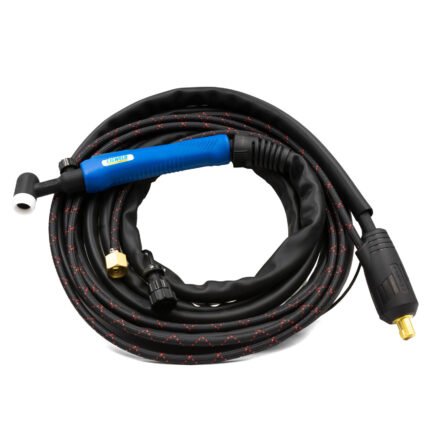

4m WP17 TIG Torch with Valve 8 Pin for Cigweld WS TM BV
Product Description
Designed for Cigweld machines with 8 Pin connector (WS, TM & BV models), this 4m WP17 TIG torch features a lightweight, ergonomic handle with a knuckle joint and durable high-temperature silicone rubber body. Ideal for medium amp TIG applications with precise on/off trigger control.Specifications
| Amperage | 170A DC, 140A AC @ 35% Duty Cycle |
| Length | 4 Meters |
| Connection | 3550 Dinse Style, 5/8UNF Female Gas |
| Trigger | Button On/Off with Valve |
| Compatibility | Cigweld 8 Pin Connector Machines |

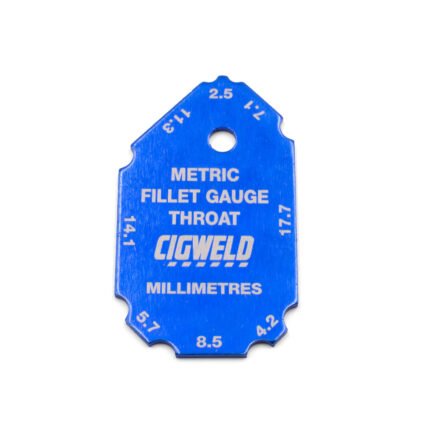

CIGAGE Metric Fillet Gauge Weld Joint Throat Depth Leg Length
Product Introduction
Advanced two-piece fillet weld gauge for tee joints, ensuring precise throat depth and leg length measurements. Portable, durable stainless steel construction with wear-resistant marked surface for clear readings, ideal for welding field work.
Specifications
| Material | Stainless Steel |
| Throat Gauge (mm) | 4.0,5.0,6.0,7.0,8.0,9.0,10.0,12.0 |
| Leg Gauge (mm) | 4.0,6.0,7.5,10.0,12.0,14.0,16.0,18.0 |

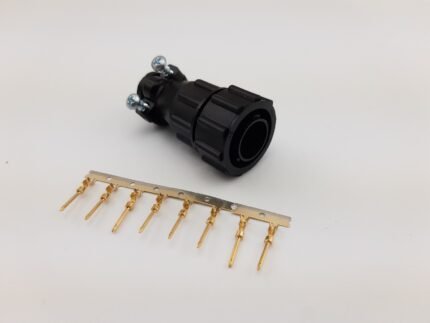

CIGWELD 8 Pin Male Plug UOA706900 for Cigweld Machines
Product Introduction
8-pin male plug designed for Cigweld TIG torches and spool guns, compatible with most Cigweld machines on the market. Genuine Cigweld part UOA706900 ensures reliable connection for welding equipment.Product Parameters
| Type | Male Plug |
| Pins | 8 Pol / Pin |
| Compatibility | Cigweld TIG Torches, Spool Guns |
| Part Number | UOA706900 |
