Tricab

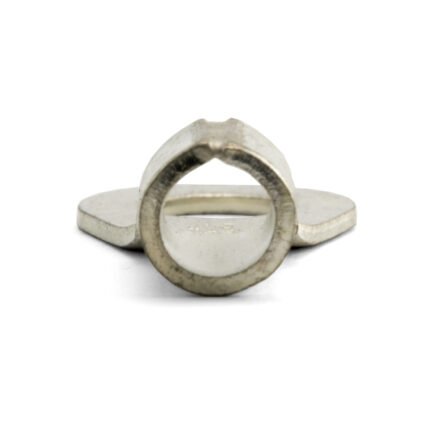

100 x 35mm2 Crimp Welding Cable Lugs 8mm Hole
Product Introduction
Hampdon Industrial crimp welding cable lugs, suitable for solid/stranded wires. Can be crimped or soldered for permanent joints, ideal for quick connect. Used with welding cable to attach earth lead to earth clamp. Zinc-coated copper construction, 100pcs per pack.
Specifications
| Wire Size | 35mm2 |
| Hole Diameter | 8mm |
| Length | 35mm |
| Material | Zinc-coated Copper |
| Pack Quantity | 100pcs |
100x16mm2 Crimp Welding Cable Lug 8mm Hole
Product Introduction
Hampdon Industrial crimp cable lugs, suitable for solid/stranded wires, can be crimped or soldered for permanent joints. Ideal for welding cable to attach earth lead to earth clamp, with zinc-coated copper construction and heat shrink for tight seal. Pack of 100.
Specifications
| Wire Size | 16mm2 |
| Ring Diameter | 8mm |
| Length | 30mm |
| Material | Zinc-Coated Copper |
| Pack Quantity | 100x |
100x25mm2 Crimp Welding Cable Lug 10mm Hole China Factory
Product Introduction
Hampdon Industrial Crimp Welding Cable Lugs, made from zinc-coated copper, offer permanent joints via crimping or soldering. Ideal for welding cable to attach earth lead to earth clamp, with heat shrink ensuring tight seal. Pack of 100, UNIMIG Part # WCL25.
Specifications
| Wire Size | 25mm2 |
| Inner Ring Diameter | 10mm |
| Length | 30mm |
| Material | Zinc-Coated Copper |
| Pack Quantity | 100pcs |
100x50mm2 Crimp Welding Cable Lug – 8mm Hole
Product Description
Hampdon Industrial crimp cable lugs, suitable for welding cable earth lead connection. Can be crimped or soldered for permanent joints, with zinc-coated copper construction. Heat shrink ensures tight seal, preventing solder leakage.
Specifications
| Wire Size | 50mm2 |
| Hole Diameter | 8mm |
| Thickness | 1.9mm |
| Length | 47mm |
| Quantity | 100 Each |
100x50mm2 Crimp Welding Cable Lug 12mm Hole
Product Introduction
Hampdon Industrial crimp cable lugs, made from zinc-coated copper, can be soldered or crimped for permanent joints. Ideal for quick connect, used with welding cable to attach earth lead to earth clamp. 100 pcs pack, BOSSWELD #500040D and UNIMIG #WCL50 equivalent.Specifications
| Wire Size | 50mm2 |
| Hole Diameter | 12mm |
| Thickness | 1.9mm |
| Length | 47mm |
| Quantity | 100 Each |
100x70mm2 Crimp Welding Cable Lugs 12mm Hole
Product Introduction
These 70mm2 crimp welding cable lugs, zinc-coated copper made, fit solid/stranded wires. Ideal for welding cable earth lead attachment, compatible with BOSSWELD 500040E and UNIMIG WCL70. 100 pieces per pack, ensuring secure, permanent joints via crimping or soldering.Specifications
| Wire Size | 70mm2 |
| Hole Diameter | 12mm |
| Length | 47mm |
| Thickness | 2mm |
| Quantity | 100 Each |
100x95mm2 Crimp Welding Cable Lugs 12mm Hole
Product Introduction
Hampdon Industrial crimp welding cable lugs, compatible with BOSSWELD 500040F and UNIMIG WCL95. Can be crimped/soldered for permanent joints, ideal for welding cable earth lead connections. Zinc-coated copper construction ensures durability. 100 pieces per pack.
Specifications
| Wire Size | 95mm2 |
| Inner Ring Diameter | 12mm |
| Length | 50mm |
| Wire Square Diameter | 13mm |
| Material | Zinc-Coated Copper |
10m 16mm2 6 Gauge Welding Cable Australian Made
Product Introduction
10m Australian made welding cable with 16mm2 (6 Gauge) 100% oxygen free copper conductors. Double insulated NBR/NBR to V90HT outer shell ensures softness and flexibility, ideal for welding applications, complying with AS1995:2003.
Specifications
| Length | 10m |
| Cross Section | 16mm2 (6 Gauge AWG/B&S) |
| Max Current | 250 Amp (30% Duty Cycle) |
| Conductor | High Purity Oxygen Free Copper |
| Insulation | Double Insulated NBR/NBR (90oC Rated) |
10m 25mm2 3 Gauge Welding Cable Australian Made
Product Introduction
Australian made 10m welding cable with 25mm2 (3 Gauge) 100% oxygen free copper conductors. Double insulated NBR/NBR outer shell (90oC rated) for flexibility and durability, compliant to AS1995:2003, ideal for welding applications.
Specifications
| Length | 10m |
| Cross Section | 25mm2 |
| Gauge | 3 AWG/B&S |
| Max Current | 333 Amp (30% Duty Cycle) |
| Material | 100% Oxygen Free Copper |
10m 35mm2 2 Gauge Welding Cable Solar Car Battery AU MADE
Product Introduction
Australian made 10m welding cable with 35mm2 (2 Gauge) 100% oxygen free copper conductors. Double insulated NBR/NBR outer shell (90oC rated) ensures flexibility and durability, ideal for welding applications. Complies to AS1995:2003 standard.Specifications
| Length | 10m |
| Cross Section | 35mm2 (2 Gauge AWG/B&S) |
| Max Current | 416 Amp (30% Duty Cycle) |
| Conductor | High purity oxygen free copper |
| Insulation | Double NBR/NBR (90oC rated) |
10m 50mm2 0 Gauge Welding Cable AUSTRALIAN MADE
Product Introduction
Australian made 10m welding cable with 50mm2 (0 Gauge) 100% oxygen free copper conductors. Double insulated NBR/NBR to V90HT, soft, flexible, ideal for welding applications, complies to AS1995:2003.
Specifications
| Length | 10m |
| Cross Section | 50mm2 (0 Gauge AWG/B&S) |
| Max Current | 527 Amp (30% Duty Cycle) |
| Insulation | Double Insulated NBR/NBR (90oC rated) |
| Compliance | AS1995:2003 |
10m 70mm2 00 Gauge Welding Cable Australian Made
Product Introduction
Australian-made 10m welding cable with 70mm2 (00 Gauge) 100% oxygen-free copper conductors. Double insulated NBR/NBR outer shell (90oC rated) for flexibility and durability, ideal for welding applications.
Specifications
| Length | 10m |
| Cross Section | 70mm2 (00 Gauge) |
| Max Current | 655 Amp (30% Duty Cycle) |
| Material | 100% Oxygen Free Copper |
| Insulation | Double Insulated NBR/NBR (90oC) |
