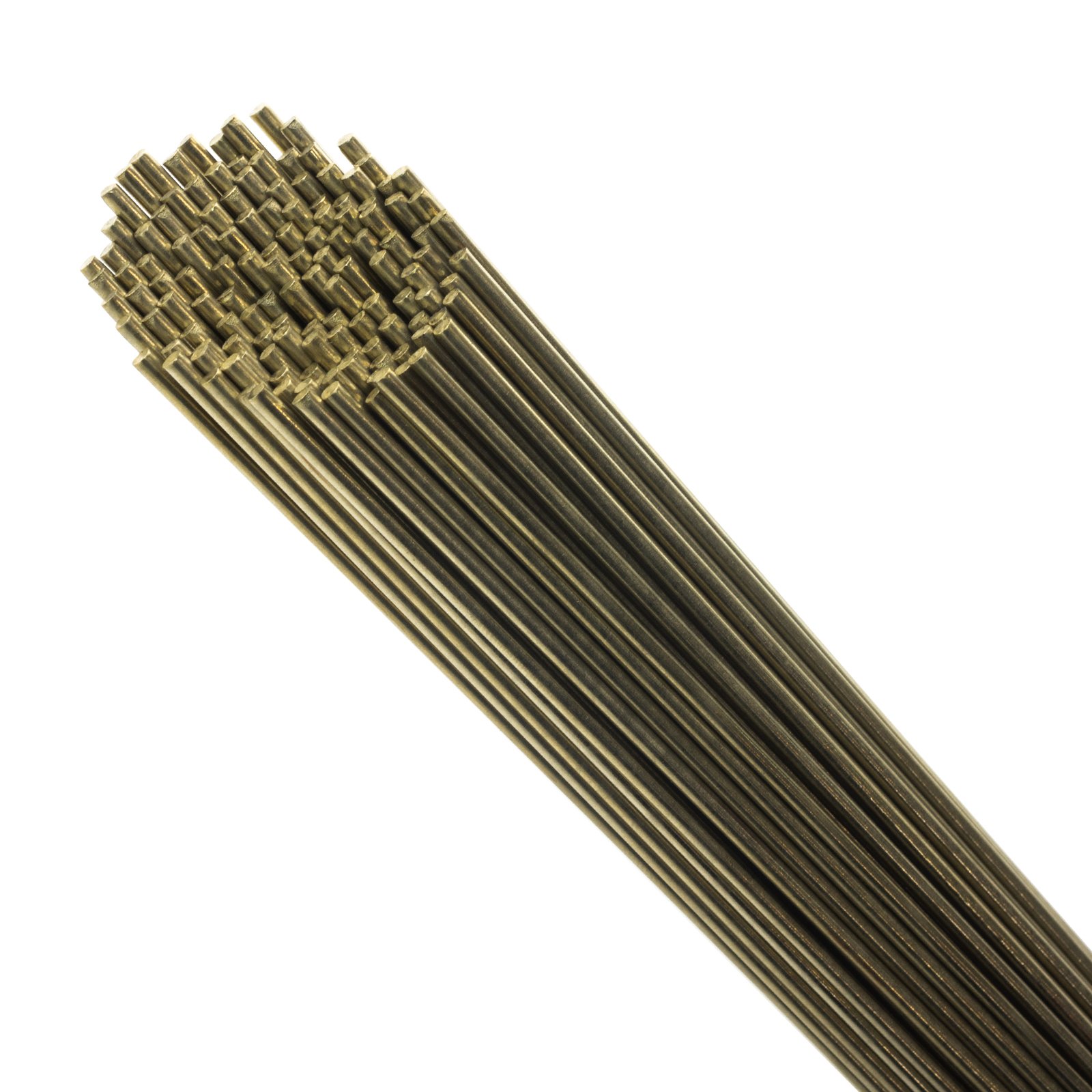

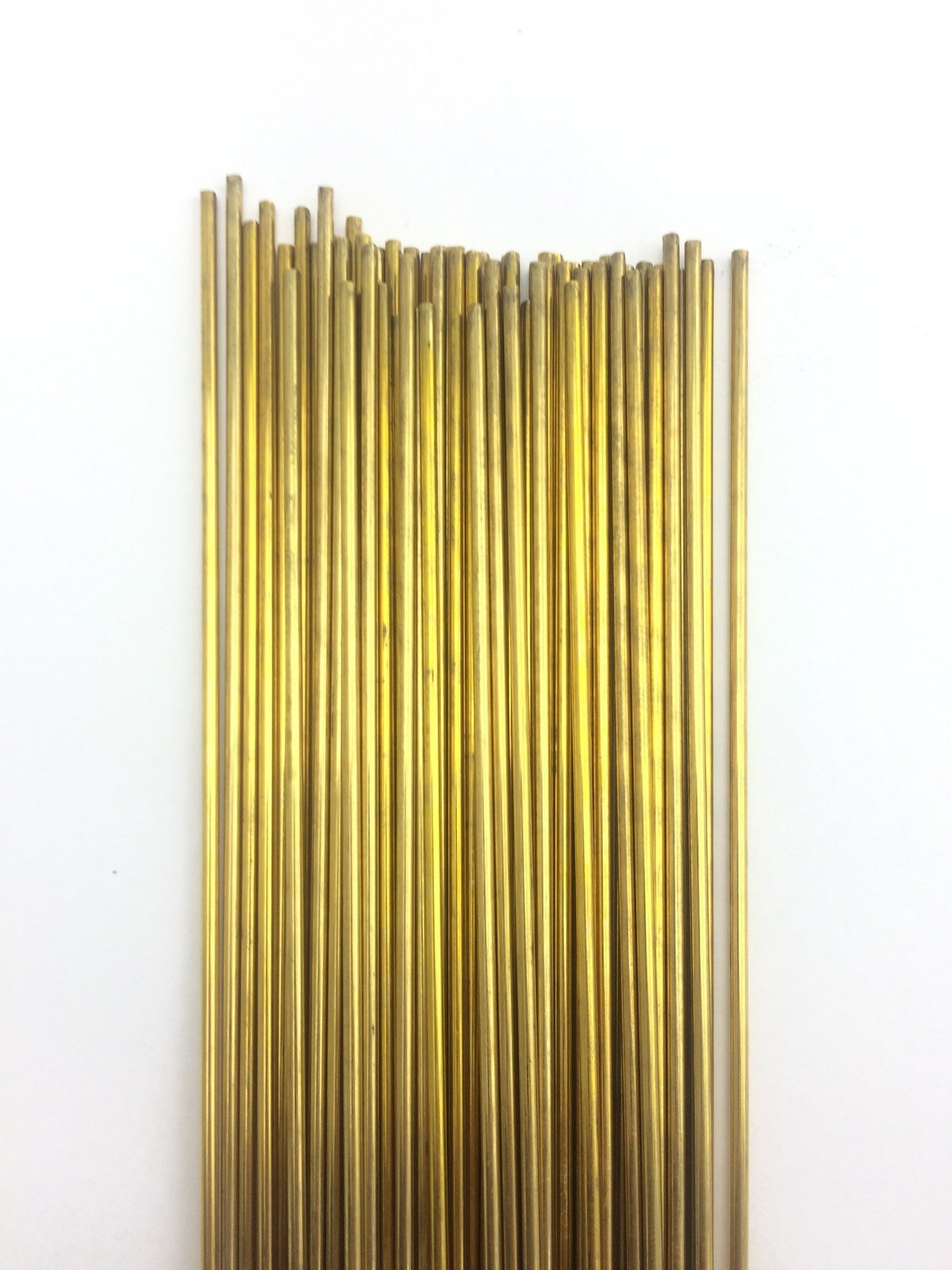

1.6mm x 200g Nickel Bronze Bare OXY Brazing Rods
$39.99
Product Introduction
A premium nickel bronze bare brazing rod with excellent bond strength, hardness, and wear resistance for oxy brazing steel, cast iron, copper-zinc alloys, nickel, and nickel-based alloys. Not suitable for TIG welding.
Specifications
| Dimensions | 1.6mm diameter, 1000mm length |
| Weight | 200g per pack |
| Melting Point | 935¡ãC |
| Tensile Strength | 90 KPSI |
| Brinell Hardness | 90-110 |
1.6mm x 200g Nickel Bronze Bare OXY Brazing Rods – Premium Strength for Industrial Welding
Struggling with weak welds on steel, cast iron, or nickel alloys? Our Nickel Bronze Bare OXY Brazing Rods deliver maximum bond strength and wear resistance, engineered for professional-grade oxy brazing applications. Upgrade your welding results today!
Core Specifications
| Material | Nickel Bronze |
| Diameter | 1.6mm |
| Weight | 200g per pack |
| Length | 1000mm (varies by weight) |
| Melting Point | 935¡ãC |
| Tensile Strength | 90 KPSI |
| Brinell Hardness | 90-110 |
| Flux Requirement | 303 flux (sold separately) |
| Certification | Batch Certificate of Conformance |
| Standard | AWS A5.8 RBCuZn-D |
Key Benefits
- Superior Bond Strength: Ideal for high-stress applications on steel and cast iron
- Enhanced Control: Bare rod design offers precise manipulation vs. flux-coated alternatives
- Wear Resistance: Excellent hardness (90-110 Brinell) for long-lasting repairs
- Versatility: Suitable for copper-zinc alloys and nickel-based materials
- Quality Assurance: Includes batch certification for industrial compliance
Applications
Perfect for maintenance and repair welding on:
- Steel structures and machinery
- Cast iron engine components
- Copper-zinc alloy fabrication
- High-temperature nickel alloy joints
Note: Not compatible with TIG welding processes
Why Choose Our Brazing Rods?
Our nickel bronze rods outperform standard options with higher tensile strength (90 KPSI) andÑϸñµÄ quality control. Unlike generic rods, we provide full traceability through batch certificates, ensuring consistency for critical industrial applications.
FAQ
Q: What flux should I use?
A: Recommended for use with 303 flux (available in our store)
Q: Can this be used for aluminum?
A: No, designed specifically for steel, cast iron, copper-zinc alloys, and nickel-based materials
Q: Are larger quantities available?
A: Yes, check our store for 1kg and 5kg packaging options
Ready toÌáÉý your welding performance? Contact us now for bulk pricing or technical support!
Packaging & Transportation
Weldsuper Nozzles
Related products
15Kg 1.2mm COBRA E71T1 Flux Cored Welding Wire
Product Introduction
Hampdon Industrial premium COBRA E71T1 flux cored welding wire, 1.2mm diameter, 15kg spool. Features fast-freezing rutile flux, low spatter, smooth arc, suitable for all positions. Runs on Co2 or Argon/Co2 20%, ideal for structural steel, rural equipment, pressure vessels, earthmoving equipment.
Product Parameters
| Diameter | 1.2mm |
| Spool Weight | 15kg |
| Classification | E71T-1C-H8 |
| Gas Compatibility | Co2 or Argon/Co2 20% |
| Applications | Structural steel, rural equipment, pressure vessels, earthmoving equipment |
15kg 3.2mm WIA AUSTARC 16TC Low Hydrogen Electrodes
Product Description
WIA AUSTARC 16TC 3.2mm Low Hydrogen Electrodes, bulk packed 15kg per carton. Features unique twin coating for exceptional arc stability, all positional welding (except vertical down), X-Ray quality deposits with -40¡ãC notch toughness. Ideal for structural steel, pipe welding, sub-zero applications, and maintenance. Made in New Zealand.Specifications
| Weight | 15kg (Bulk Pack) |
| Diameter | 3.2mm |
| Type | Low Hydrogen Stick Electrodes |
| Positionality | All positions (except vertical down) |
| Notch Toughness | -40¡ãC |
1kg 1.6mm ER70S-2 Mild Steel TIG Welding Wire Rods
Product Introduction
Premium ER70S-2 mild steel TIG filler welding wire, copper-coated for clean welding on carbon steel, chrome molly steels, structural works, and thin/galvanized plates. Features titanium/zirconium addition for minimal spatter, high purity with excellent flow, and crack-free welds. Individually packed in sturdy packaging with batch certificate.Specifications
| Grade | ER70S-2 |
| Weight | 1kg |
| Diameter | 1.6mm |
| Length | 1000mm |
| Quantity | Approx. 65 sticks |
1kg 2.4mm 2% Silver Solder Brazing Rods High Quality
Product Introduction
2% Silver Solder Brazing Rods, ideal for brazing copper and joining copper in low zinc brass with silver flux. Widely used in hot water tanks and copper tubing manufacturing. Cadmium free, meeting Industry Specification A5.8-B CuP6.
Product Parameters
| Silver Content | 2% |
| Diameter | 2.4mm |
| Length | 74cm (approx 35 sticks/pack) |
| Brazing Temp | ~875¡ãC |
| Weight | 1kg |
1kg 2.4mm ER309L Stainless Steel TIG Filler Wire
Product Introduction
Premium ER309L stainless steel TIG filler wire, ideal for joining dissimilar materials like mild steel to stainless steel. Features excellent corrosion resistance, smooth flow, and crack-free welds. Individually marked rods ensure traceability, packed in sturdy containers for protection. Suitable for industrial use and fishing lure making.Specifications
| Grade | ER309L |
| Diameter | 2.4mm |
| Length | 330mm |
| Packaging | 1kg (¡Ö30 sticks) |
| UNIMIG Part # | TI309L-2.4 |
1kg 2.4mm ER4043 Aluminium TIG Filler Wire Rods
Product Introduction
Premium ER4043 Aluminium TIG Filler Wire Rods, ideal for general-purpose aluminium welding. Features 5% silicon for improved fluidity, bright weld finish, and high purity to prevent cracks. Suitable for various aluminium grades, with batch certification for manufacturing reports.
Specifications
| Grade | 4043 |
| Weight | 1kg |
| Diameter | 2.4mm |
| Length | 1000mm |
| Quantity | Approx. 90 sticks |
5kg 0.8mm ER316LSi Stainless Steel MIG Welding Wire
Product Parameters
| Grade | ER316LSi |
| Weight | 5kg |
| Diameter | 0.8mm |
| Equivalent Part # | SS316LSI-0.8-5 (UNIMIG), 720283 (Cigweld) |
Description
Premium stainless steel MIG welding wire with increased silicon content for improved wetting and smooth bead appearance. Ideal for applications where weld cap quality matters. Includes certificate of conformance, suitable for manufacturing data reports (MDR). Trusted quality with over 20 years of performance excellence.MAGMAWELD 6013 3.2mm Stick Electrodes 2.5KG Pack
Product Description
MAGMAWELD 6013 3.2mm Stick Electrodes, 2.5KG pack (84 sticks approx). Mild steel, all-position general-purpose rod for AC/DC machines. Features medium slag, easy removal, smooth arc, and good gap-bridging. Ideal for thin metals, fabrications, and repairs.
Specifications
| Diameter | 3.2mm |
| Length | 350mm |
| Weight | 2.5kg |
| Standard | AWS/ASME SFA-5.1 E6013 |
| Application | All-position welding, mild steel |
