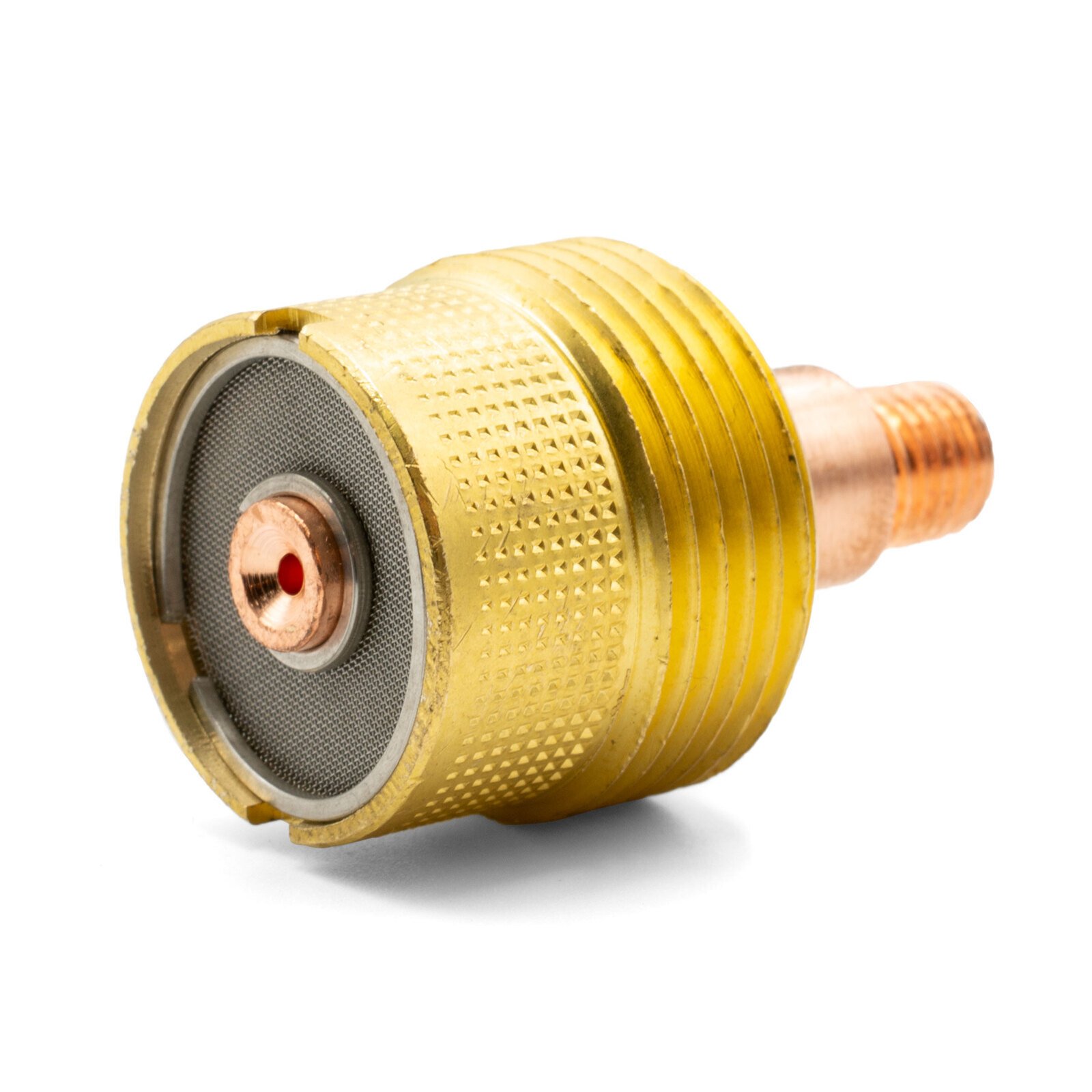

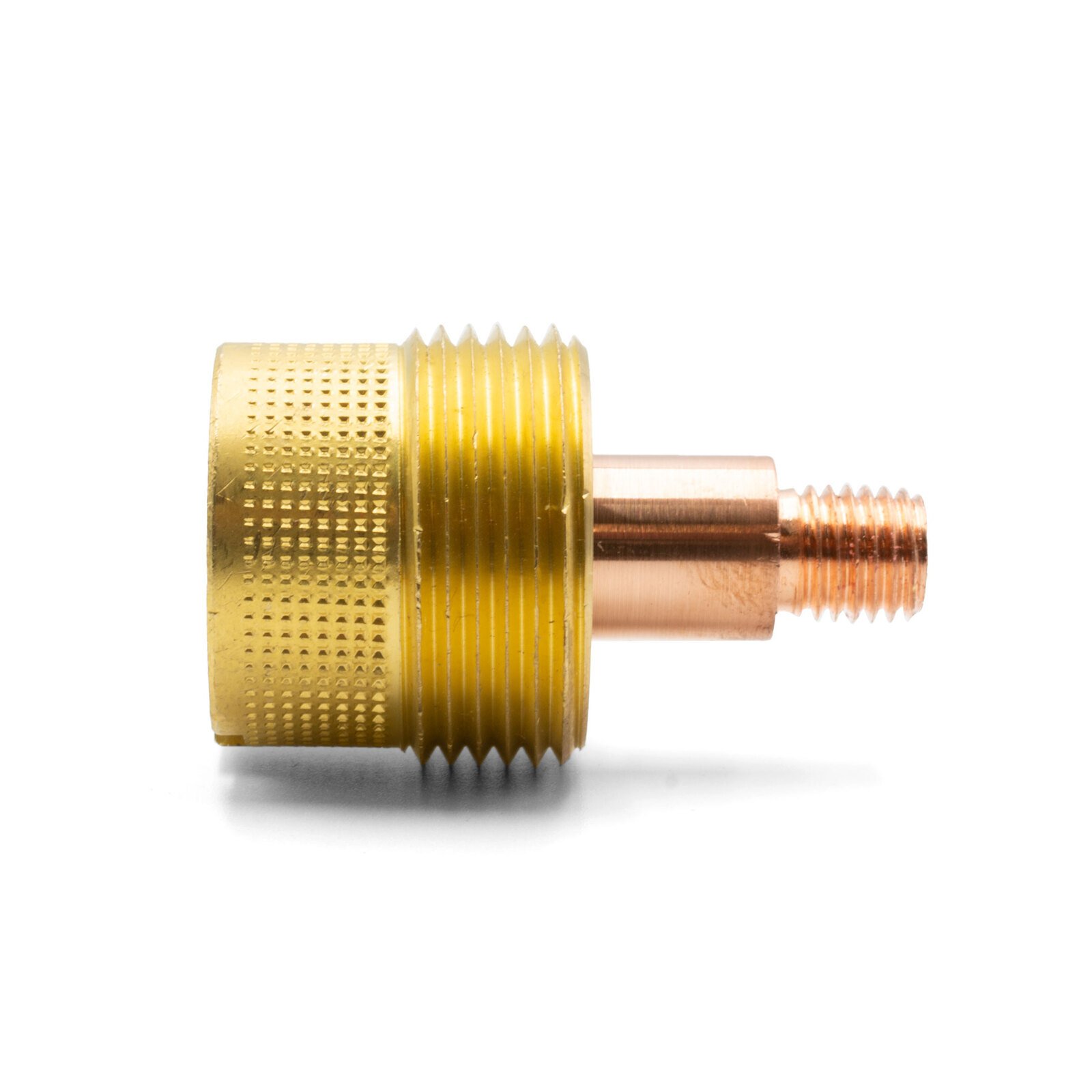

TIG Gas Lens Saver Collet Body 14pc Kit 1.6mm WP9
$49.50
Product Description
A premium 14-piece TIG Gas Lens Collet Body Kit designed for 1.6mm tungsten, compatible with WP9/20 series torches. Features high-quality copper construction and multi-layered mesh for superior gas flow, reducing turbulence and contaminants. This cost-saving kit enhances torch performance with optimal weld zone coverage.
Specifications
| Kit Size | 14 Piece |
| Tungsten Diameter | 1.6mm |
| Torch Compatibility | WP9 / 20 Series |
| Threads | 3/8 UNF (Lower), 1″ UNF (Upper) |
| Key Feature | Multi-layer Mesh Gas Lens |
TIG Gas Lens Saver Collet Body 14 Piece Kit – 1.6mm Large Diameter – WP9 | 20
Upgrade your TIG welding precision with our premium 14-piece Gas Lens Collet Body Kit, engineered to deliver superior gas flow, extended torch life, and cost savings. Perfect for professionals seeking optimal weld quality and efficiency.
Core Specifications
| Description | 14-piece TIG gas lens collet body kit for enhanced welding performance |
| Tungsten Size | 1.6mm |
| Torch Compatibility | WP9 / 20 series (WP or SR style) |
| Thread Specifications | 3/8 UNF lower thread; 1″ UNF upper thread |
| Gas Flow Technology | Multi-layered mesh for laminar flow & turbulence elimination |
| Material | High-quality copper (superior to OEM standards) |

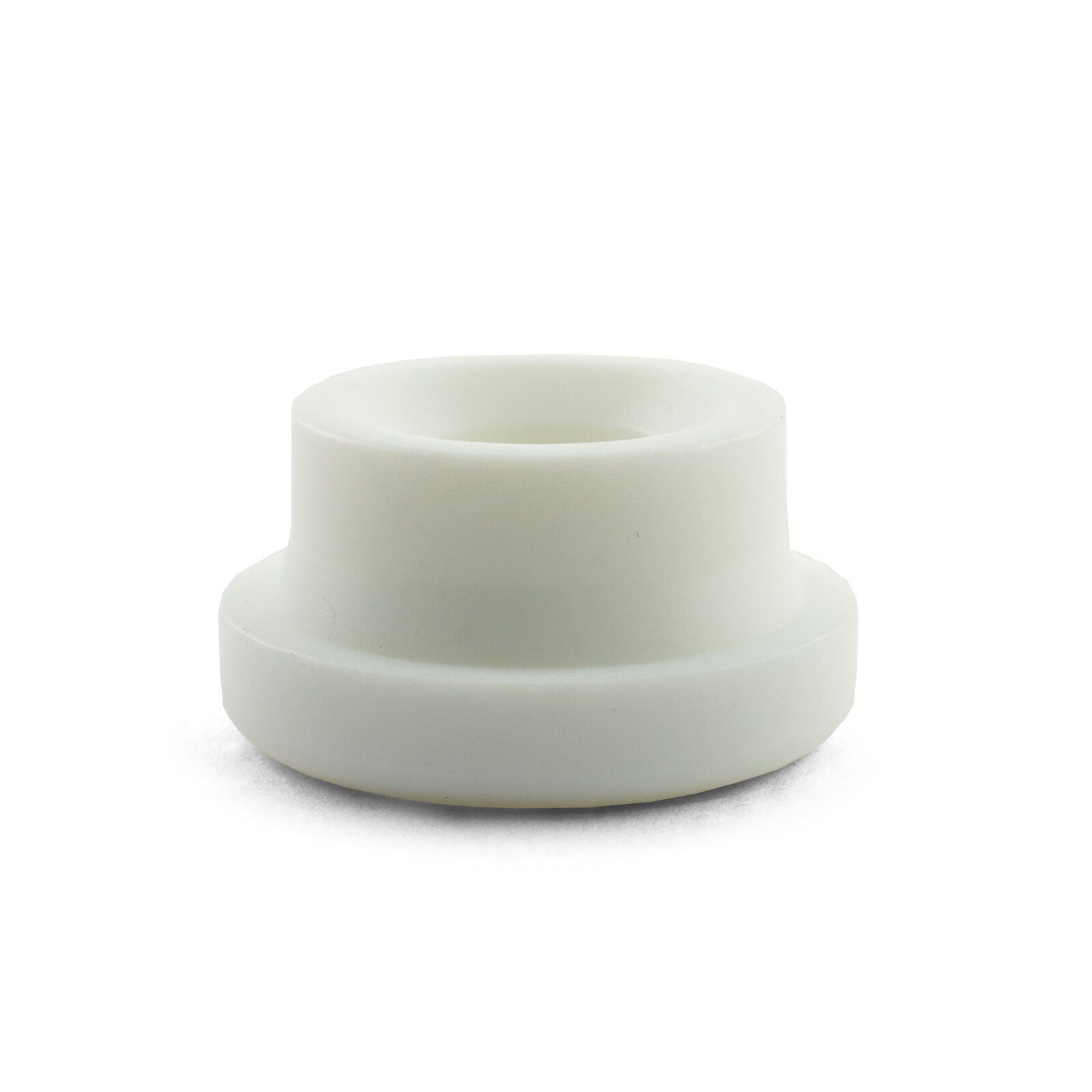

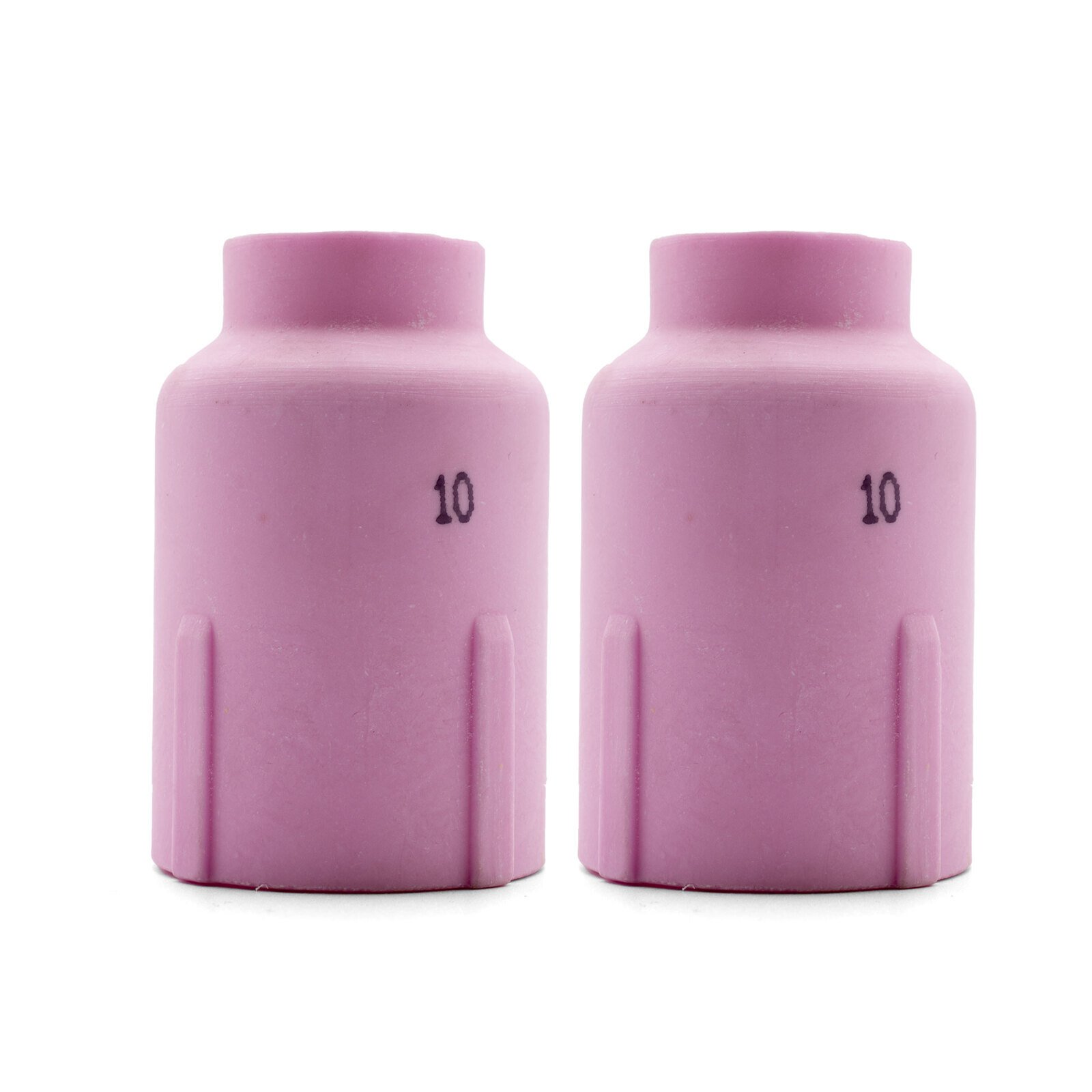

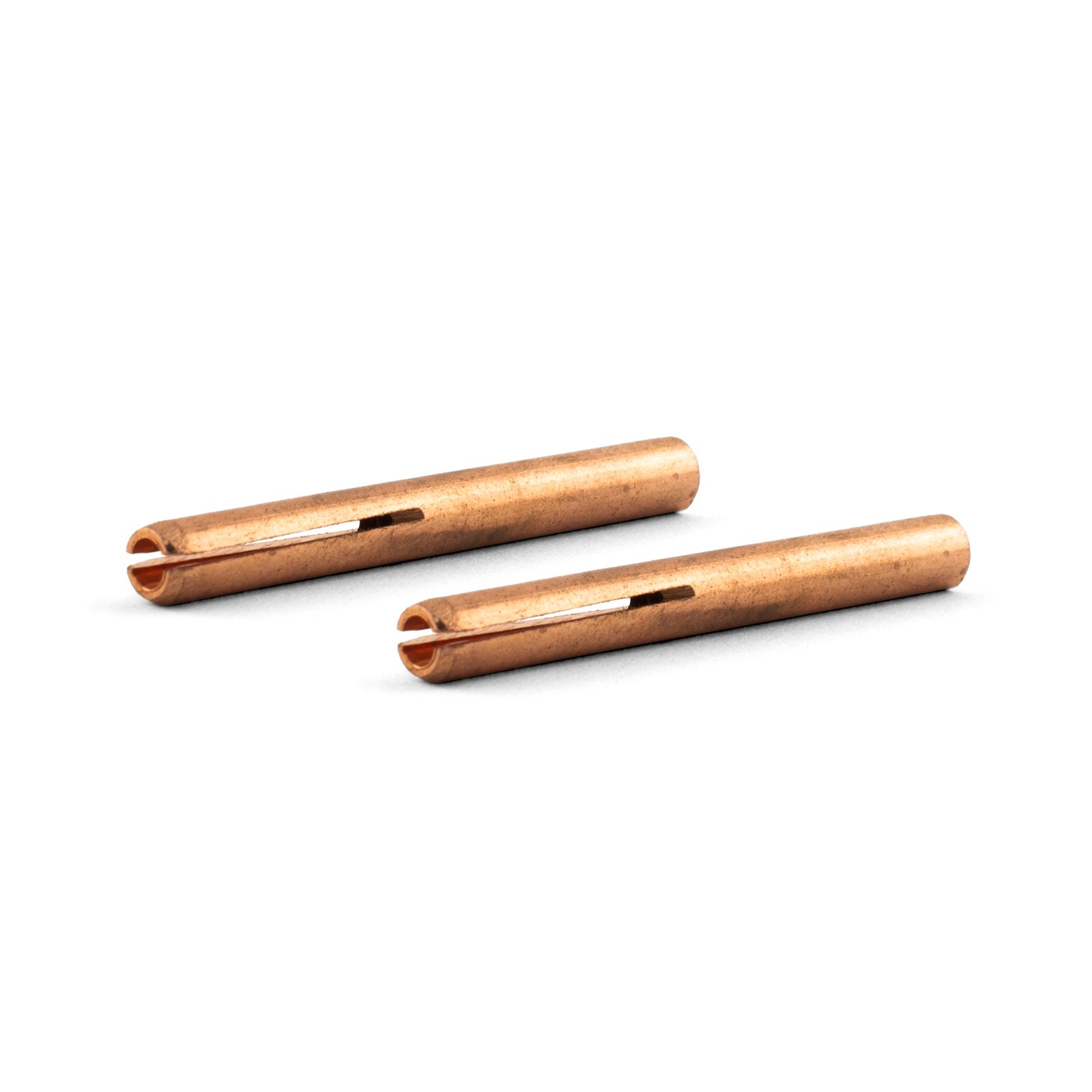

| Kit Includes | 1 insulator, 2 collets, 1 collet body, 8 large diameter cups (#6, #8, #10, #12, #15) |
| Key Benefit | Reduced gas consumption & enhanced weld zone protection |
| Applications | Precision TIG welding in industrial, automotive, and fabrication |
| Quality Standard | Parweld-engineered with additional mesh layers for durability |
Why Choose This Kit?
Our gas lens kit outperforms standard collet bodies by creating a stable, laminar gas flow that shields the weld zone from contaminants. The extra mesh layers ensure longer tool life and consistent performance, while the high-quality copper construction resists overheating. Purchasing as a kit saves over $140 compared to individual parts.
Applications & Performance
Ideal for critical welding tasks requiring precision, such as stainless steel fabrication, aerospace components, and automotive repairs. The large diameter cups (#6 to #15) offer versatility for various joint sizes, ensuring optimal gas coverage and clean, strong welds.
FAQ
Q: Will this fit my WP-20 torch?
A: Yes, it¡¯s compatible with all 9/20 series TIG torches (WP or SR style).
Q: How does this reduce gas usage?
A: The layered mesh design optimizes gas distribution, minimizing waste while maintaining effective shielding.
Q: Can I use other tungsten sizes?
A: This kit is specifically designed for 1.6mm tungstens.
Request a Quote
Ready to elevate your welding results? Contact us today for bulk pricing, technical support, or customization options. Our factory-direct pricing ensures maximum value for your operation.
Packaging & Transportation
