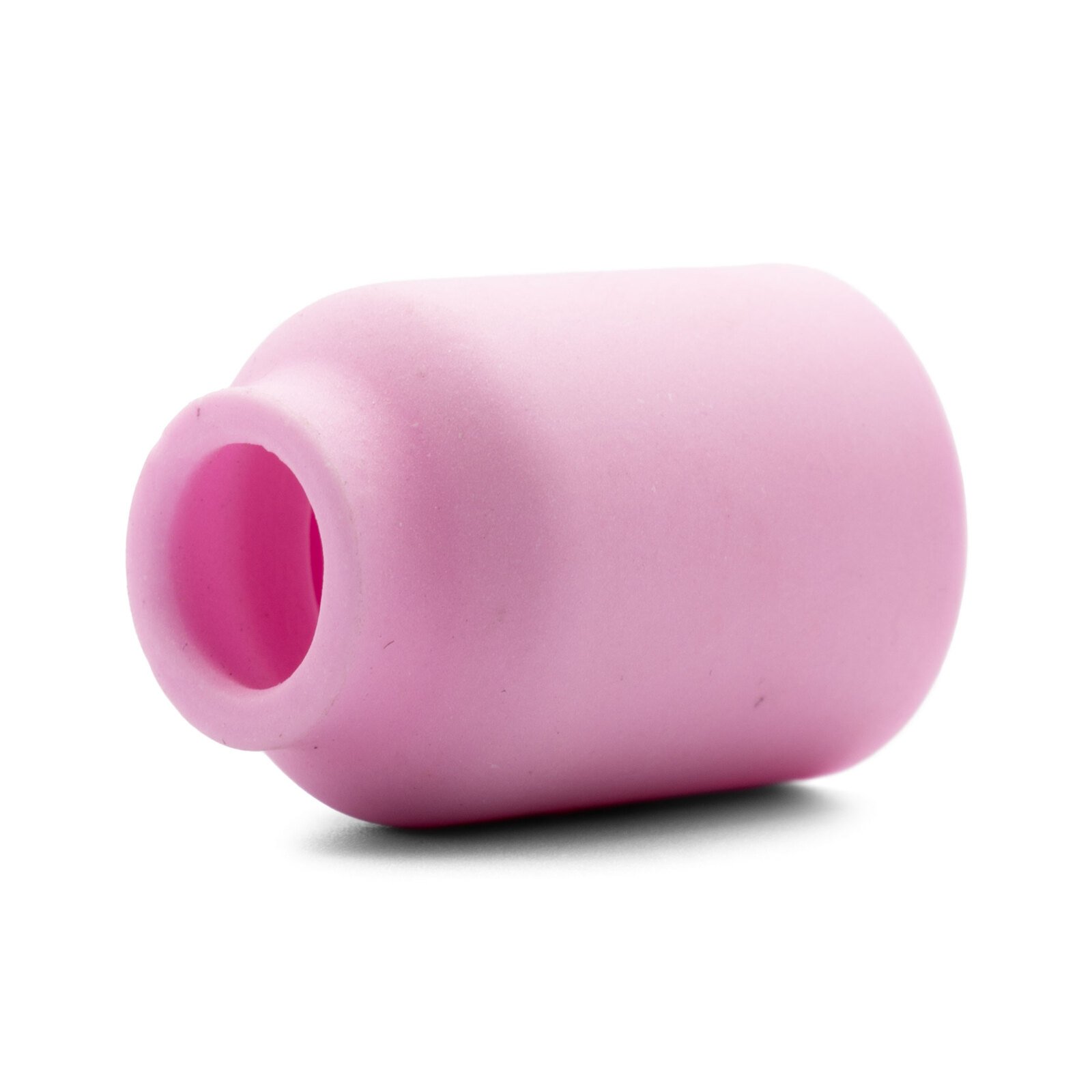

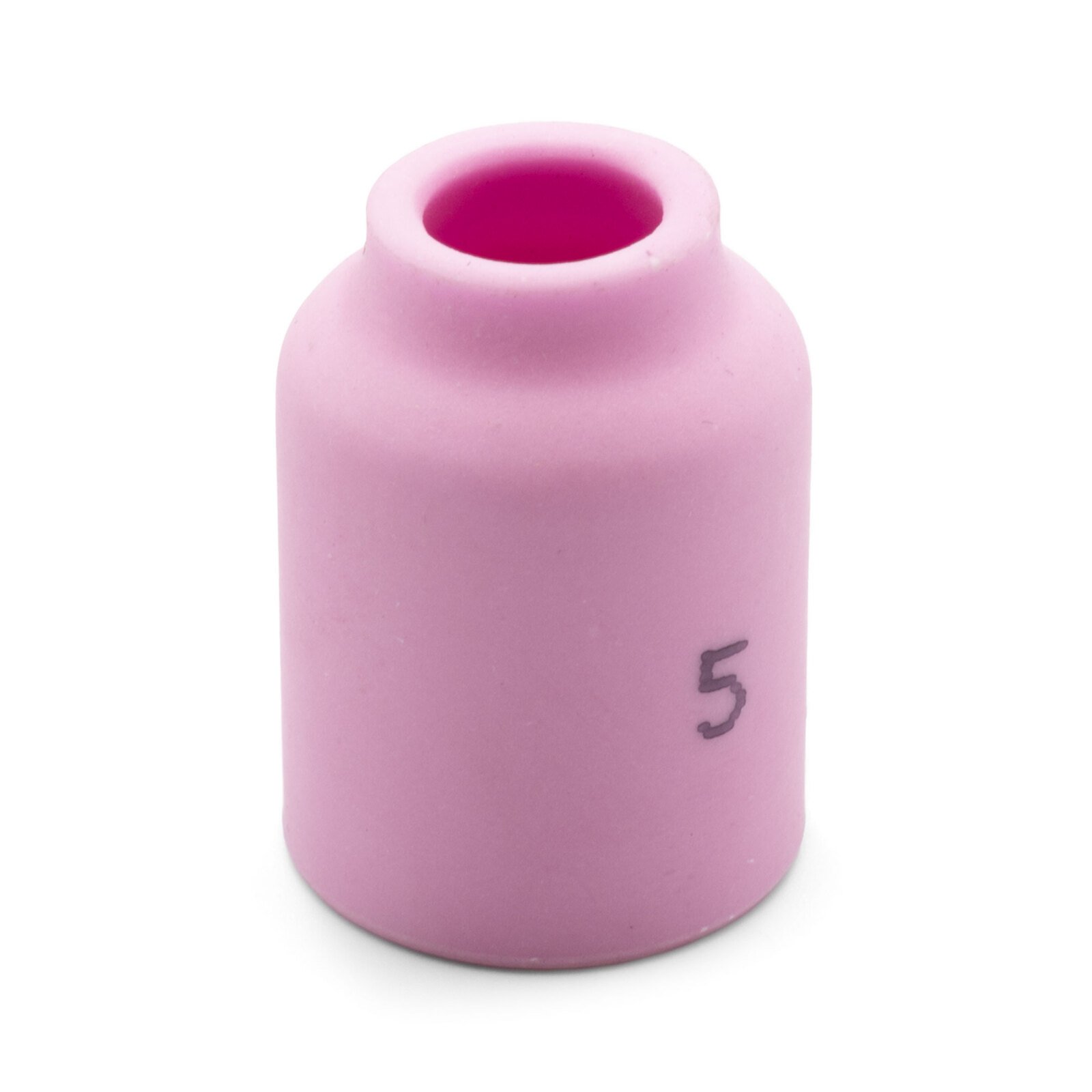

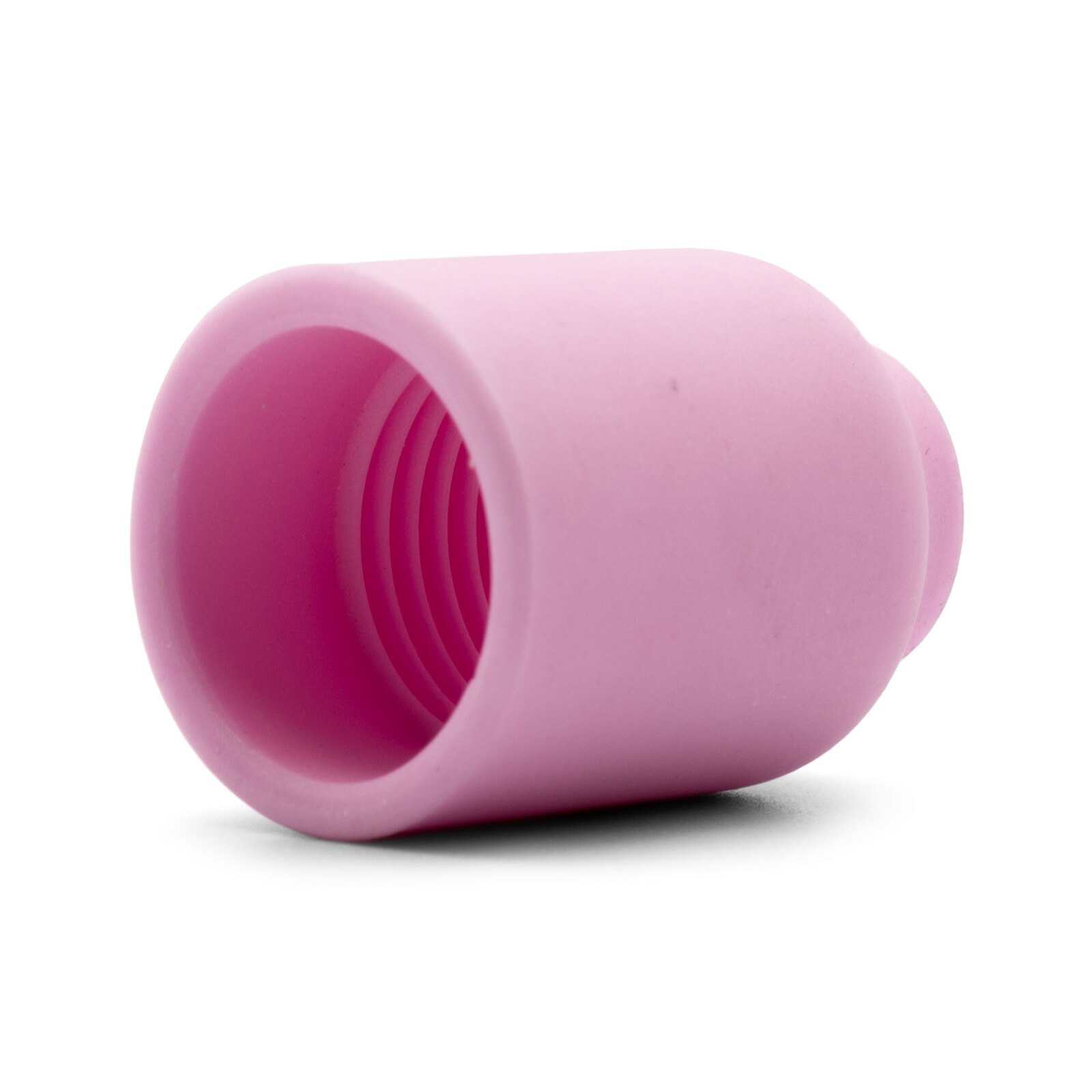

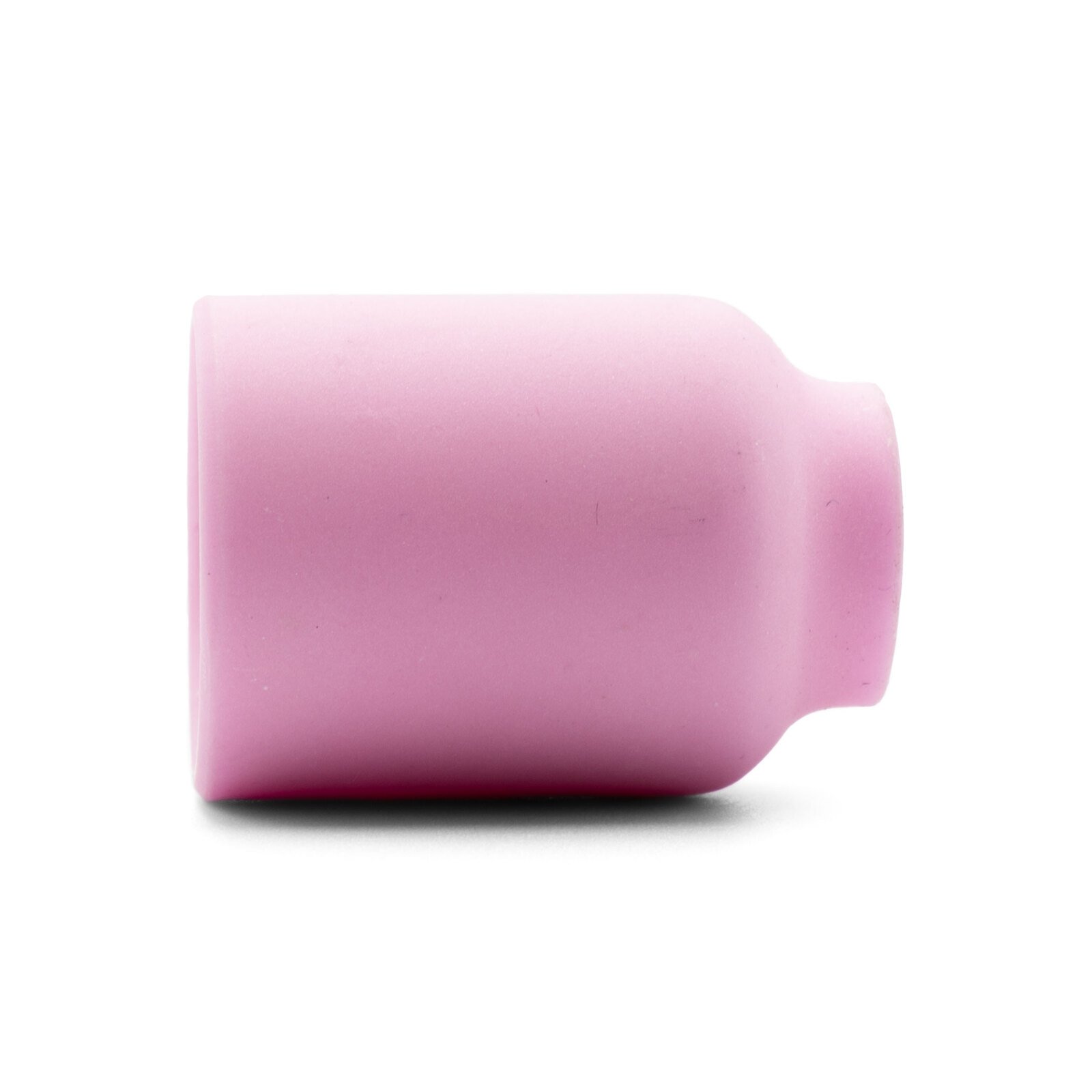

TIG Ceramic Cup Nozzle Gas Lens #5 WP-9/20 5pcs
$23.99
Product Description
Parweld TIG Ceramic Cups, made from high-quality toughened alumina oxide, compatible with WP-9/20 series torches. Durable, impact & spatter resistant for high-temperature welding, offering long life at a great price.
Specifications
| Quantity | 5 Each |
| Cup Size | #5 |
| Compatibility | WP-9/20 Torches (Gas Lens Collet Body) |
| Material | Toughened Alumina Oxide |
| Dimensions | 25mm Length, 14mm Base Diameter, 8mm Bore |
TIG Ceramic Cup Nozzle Gas Lens #5 – 5 Each for WP-9 / 20 Torches
Upgrade your TIG welding setup with Hampdon Industrial Parweld Brand Ceramic Cups ¨C engineered for professionals demanding durability and precision. Crafted from superior toughened alumina oxide, these cups outperform OEM standards, ensuring long-lasting performance in high-temperature welding applications. Perfect for operators seeking reliable, impact-resistant tools that deliver consistent results.
Core Specifications
| Quantity | 5 Each |
| Size | #5 |
| Compatibility | WP-9 & 20 Series TIG Torches (Gas Lens Collet Body) |
| Material | Toughened Alumina Oxide |
| Length | 25mm |
| Base Diameter | 14mm |
| Bore Diameter | 8mm |
| Key Features | Thermal Shock Resistant, Spatter Resistant |
| Part Number | UNIMIG P53N59 |
| Standard | 100% OEM Compatible |
Why Choose Our Ceramic Cups?
- Enhanced Durability: Higher quality ceramic than OEM for extended lifespan
- High-Temp Performance: Withstands extreme welding heat without cracking
- Impact & Spatter Resistance: Reduces wear from daily workshop use
- Perfect Fit: Engineered for seamless compatibility with WP-9/20 torches
- Cost-Effective: Premium quality at competitive pricing
Applications
Ideal for professional TIG welding in automotive, aerospace, metal fabrication, and industrial maintenance. Suitable for stainless steel, aluminum, and other alloy welding tasks requiring precise gas coverage and heat management.
Quality Assurance
Manufactured to strict industrial standards, each cup undergoes rigorous testing to ensure thermal stability and structural integrity. Backed by our factory’s commitment to reliability and performance.
FAQ
Q: Will these fit non-Parweld WP-9 torches?
A: Yes, they are 100% OEM compatible with all standard WP-9/20 series torches with gas lens collet bodies.
Q: What makes these better than OEM cups?
A: Our cups use higher-grade alumina oxide, offering superior thermal shock and impact resistance.
Q: Can they be used with automated welding systems?
A: Yes, their consistent dimensions ensure compatibility with robotic and manual welding setups.
Ready to Elevate Your Welding Performance?
Contact us today for bulk pricing, technical specifications, or to place your order. Our expert team is ready to assist with your TIG welding accessory needs.
Packaging & Transportation
