TIG Ceramic Nozzle #6 LONG 10pk WP17/18/26
$25.99
Product Description

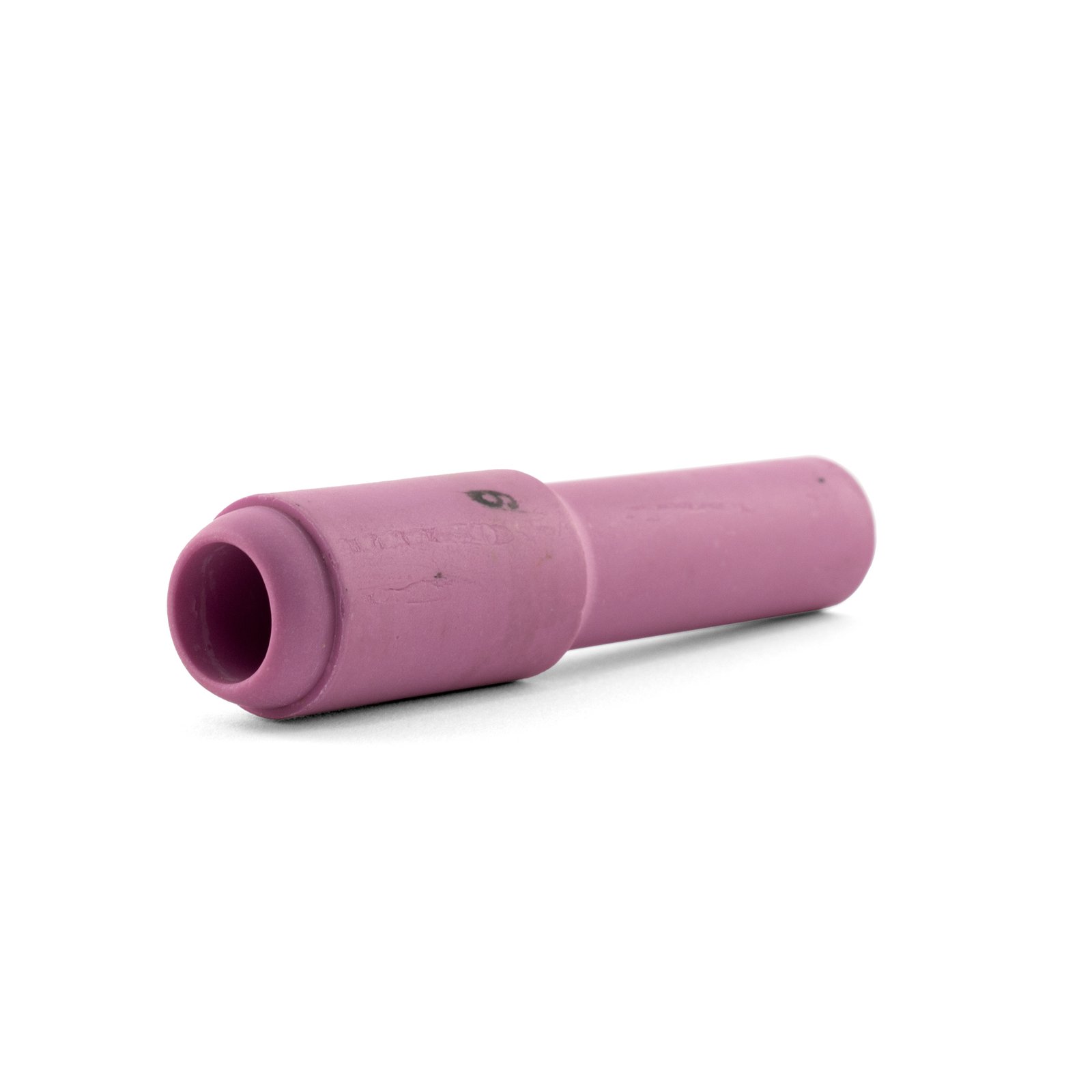

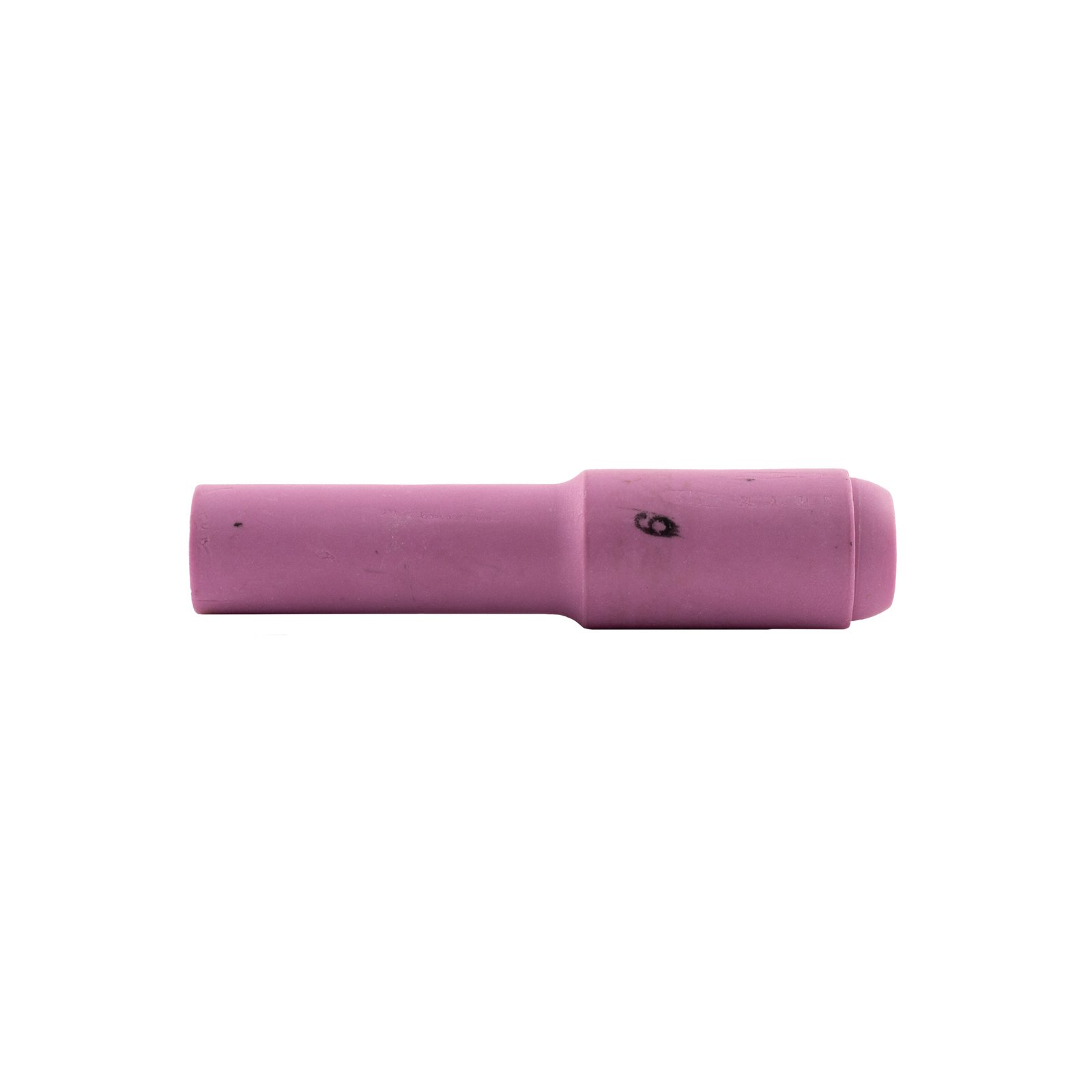

Hampdon Industrial TIG Alumina cups, #6 Long, 10 pack. Suits WP-17, 18, 26 torches. High-quality Alumina for excellent heat resistance, durability, and long service time in harsh welding conditions.
Specifications

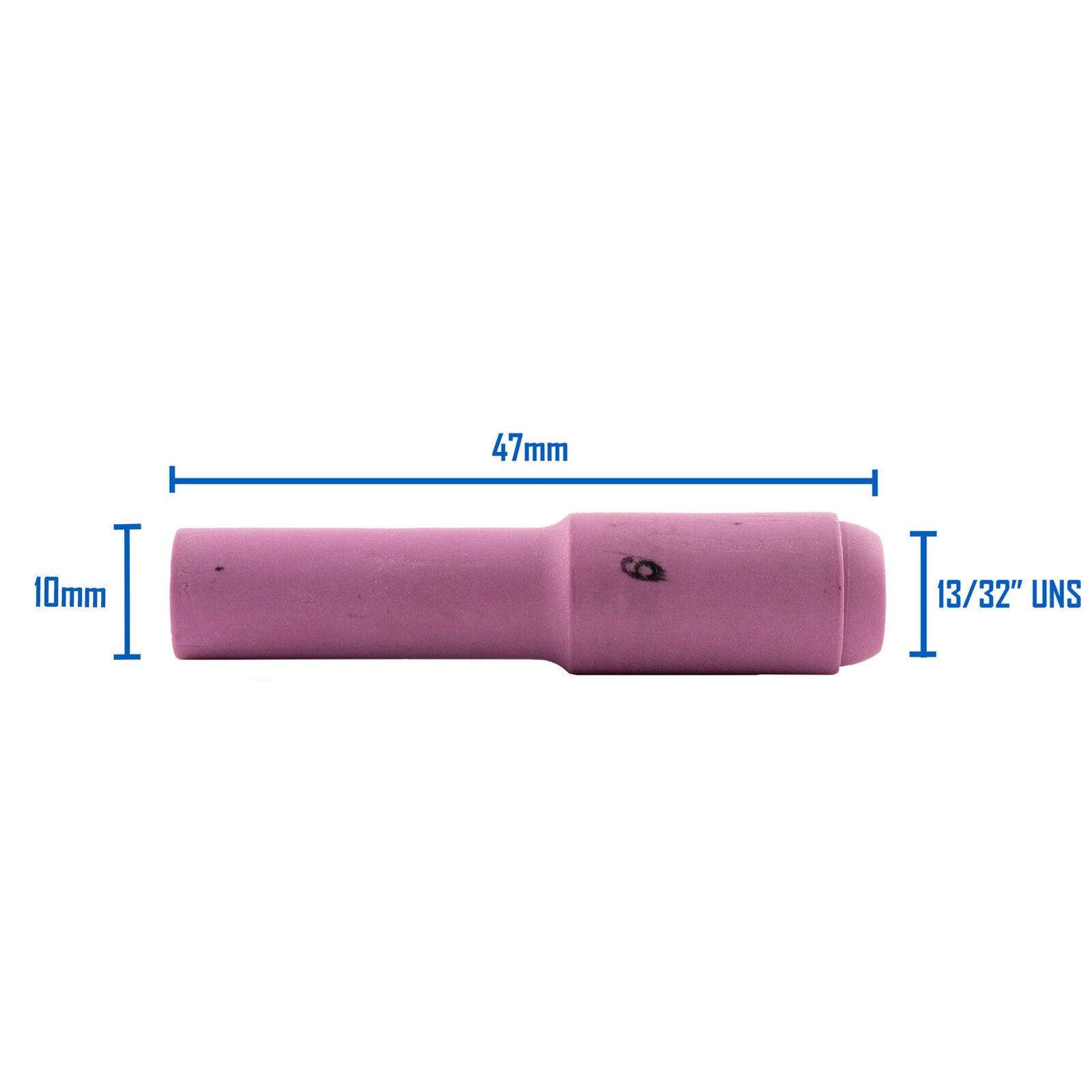

| Cup Size | #6 Long |
| Fit Torch | WP-17, 18, 26 Series |
| Thread | 13/32 UNS |
| Length | 47mm |
| Quantity | 10 Each |
TIG Ceramic Cup Nozzle #6 LONG – 10 Pack for WP 17/18/26 Torches
Upgrade your TIG welding precision with our premium alumina ceramic nozzles! Engineered for professionals, these high-heat resistant cups deliver superior gas control and durability¡ªperfect for demanding welding environments. Don¡¯t settle for subpar accessories that compromise your results¡ªinvest in reliability that lasts.
Core Specifications
| Product Type | TIG Ceramic Nozzle |
| Size | #6 Long |
| Compatibility | WP-17, WP-18, WP-26 Series Torches |
| Material | High-Quality Alumina |
| Thread | 13/32 UNS |
| Length | 47mm |
| Diameter | 10mm |
| Heat Resistance | High-Temperature Tolerance |
| Pack Quantity | 10 Pieces |
| Application | Precision TIG Welding |
Unmatched Performance & Durability
Crafted from industrial-grade alumina, our nozzles withstand extreme temperatures and resist breakage in harsh working conditions. The low thermal conductivity ensures stable gas flow, protecting your weld pool from contamination and delivering clean, consistent results every time.
Perfect for Every Welding Scenario
Ideal for stainless steel, aluminum, and exotic metal welding. Whether you¡¯re working in fabrication shops, automotive repair, or industrial manufacturing, these nozzles provide the precise gas coverage needed for intricate joints and high-quality finishes.
Why Choose Our Ceramic Cups?
- Superior Material: High-purity alumina for extended service life
- Precision Engineering: 13/32 UNS thread ensures secure fit with WP torches
- Cost-Effective: 10-pack offers great value for bulk usage
- Heat Stability: Maintains shape and performance under intense heat
FAQ
Q: Will these fit other torch models besides WP-17/18/26?
A: Designed specifically for WP-17, WP-18, and WP-26 series torches. Contact us for customÊÊÅä options.
Q: How does alumina compare to standard ceramic nozzles?
A: Alumina offers 30% higher heat resistance and 50% better impact strength than regular ceramics.
Ready to Elevate Your Welding?
As a leading Chinese manufacturer, we offer factory-direct pricing and bulk order discounts. For personalized quotes or technical support, send us an inquiry today¡ªour team is ready to help you optimize your welding setup!
