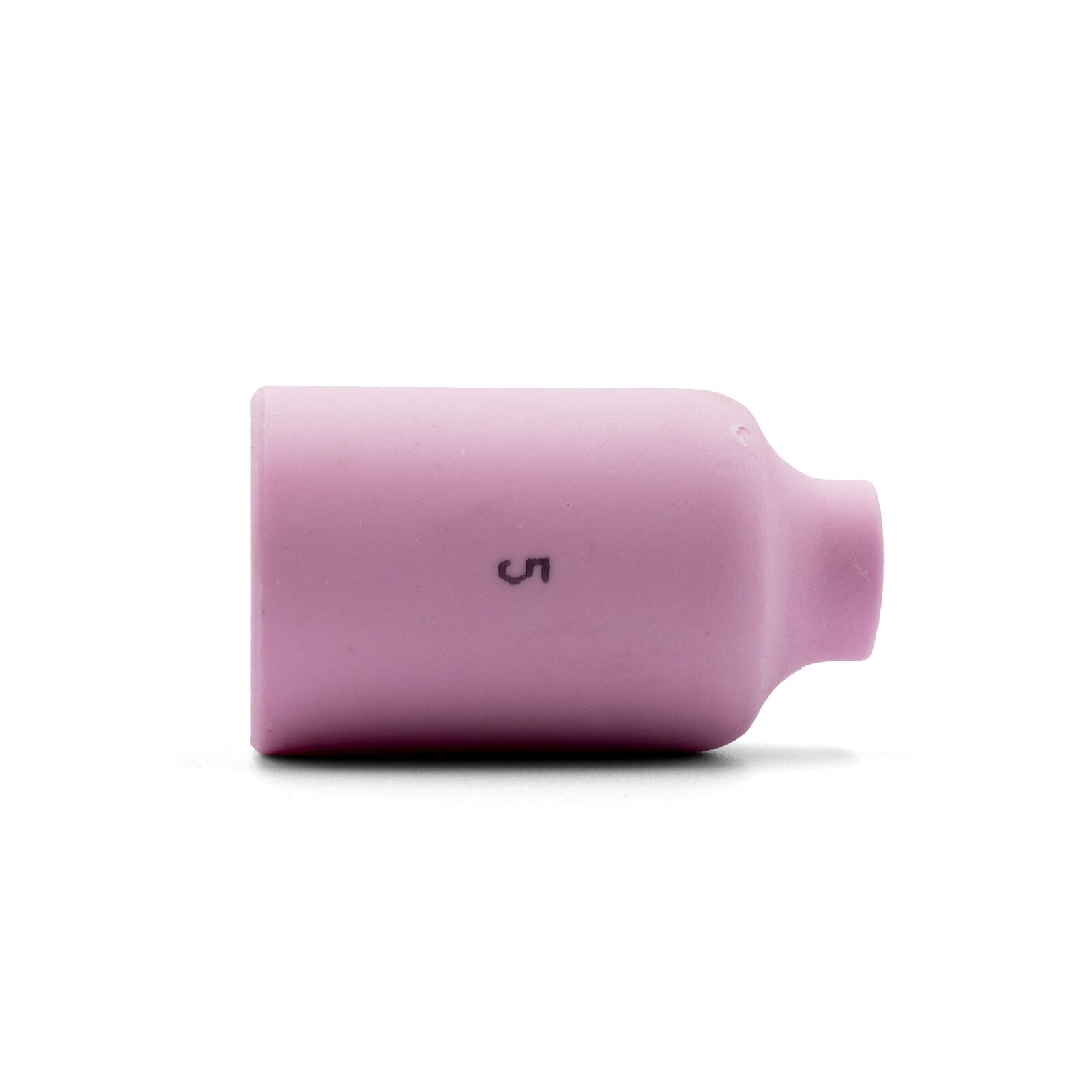

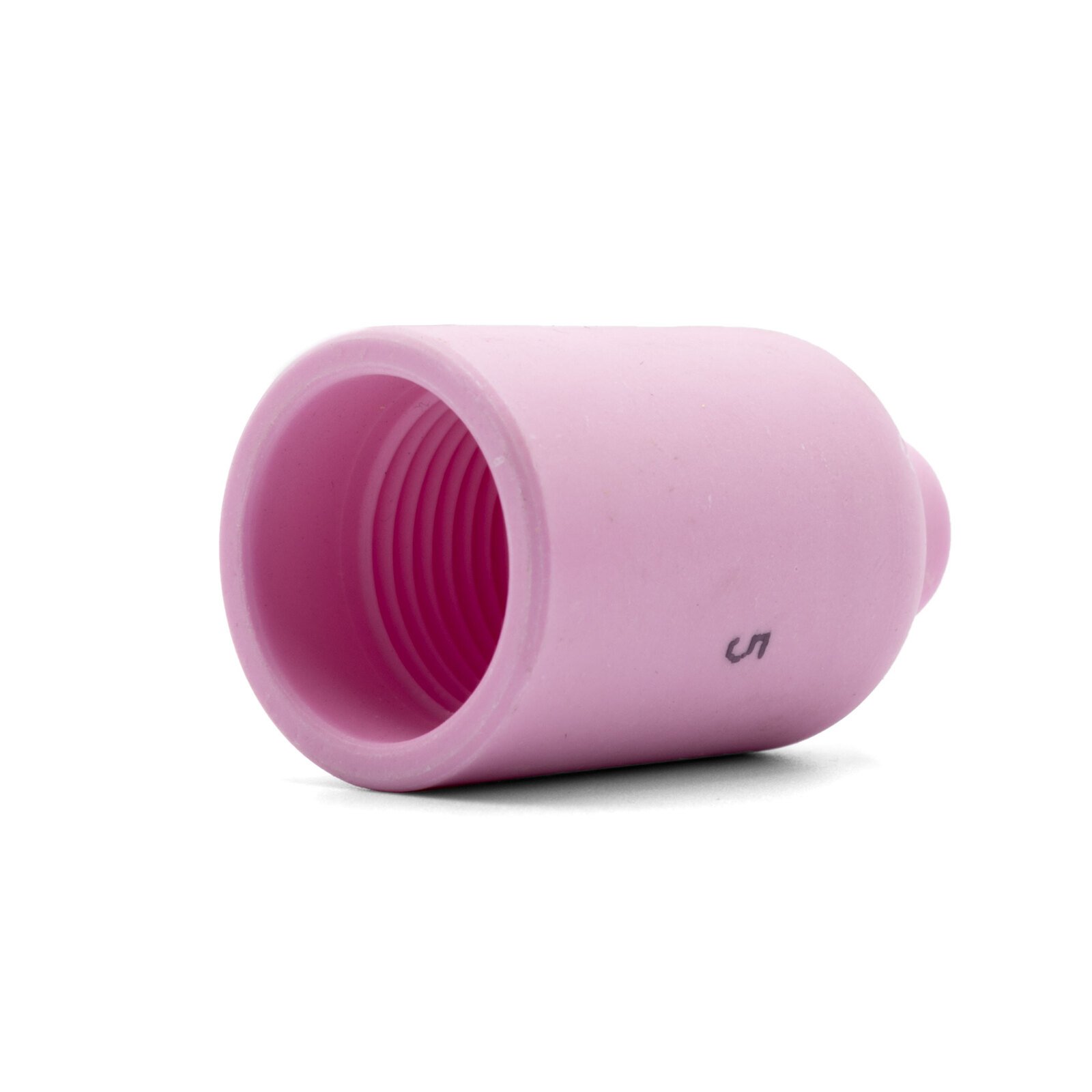

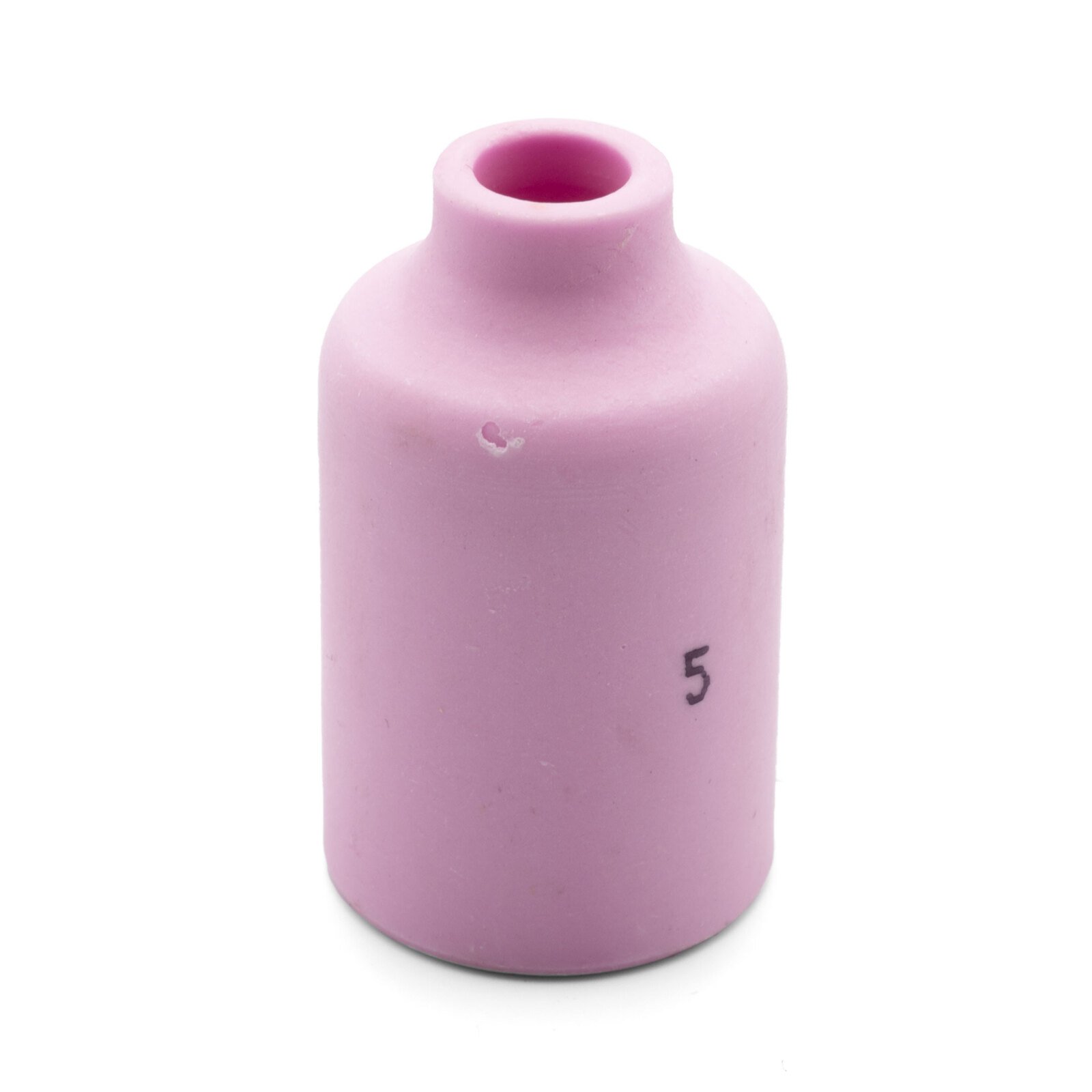

TIG Ceramic Nozzle #5 Gas Lens 10pk WP-17/18/26
$33.99
Product Introduction
High-quality TIG ceramic cups compatible with WP-17/18/26 torches, featuring gas lens for tight area welding. Made from toughened alumina oxide, durable and thermal shock resistant for long-lasting performance.
Specifications
| Size | #5 |
| Quantity | 10 Each |
| Compatibility | WP-17/18/26 Torches |
| Material | Toughened Alumina Oxide |
| Length | 42mm |
TIG Ceramic Cup / Nozzle #5 GAS LENS – 10 Each – WP-17 /18 / 26
Upgrade your TIG welding performance with our premium ceramic cups designed for WP-17, WP-18, and WP-26 torches. Engineered for durability and precision, these gas lens cups deliver consistent gas coverage and extended service life¡ªperfect for professional welders seeking reliability at an unbeatable value.
Core Specifications
| Quantity | 10 pieces |
| Cup Size | #5 |
| Compatibility | WP-17 / 18 / 26 torches (gas lens collet body) |
| Material | Toughened alumina oxide |
| Length | 42mm |
| Base Diameter | 18mm |
| Bore Diameter | 8mm |
| Thread | 3/4 UNF |
| Key Feature | Thermal shock & spatter resistant |
| Part Number | P54N17 |
Why Choose Our Ceramic Cups?
Constructed from higher quality ceramic than OEM alternatives, these cups withstand extreme temperatures and heavy spatter, reducing replacement frequency. The standard diameter gas lens ensures optimal argon flow, minimizing porosity and enhancing weld bead quality¡ªeven in tight spaces. Ideal for high-temperature applications and daily industrial use.
Applications
Perfect for automotive, aerospace, and metal fabrication industries. Compatible with all WP-17/18/26 series torches equipped with gas lens collet bodies, supporting stainless steel, aluminum, and other alloy welding projects.
Quality Assurance
100% OEM compatibility guaranteed. Our cups undergo strict testing to meet industrial standards, ensuring consistent performance and a precise fit. Backed by our factory’s reputation for manufacturing excellence.
FAQs
Q: Will these fit non-Parweld torches?
A: Yes, they are designed to be fully compatible with all WP-17/18/26 style torches using gas lens collet bodies.
Q: Can they handle continuous high-heat welding?
A: Absolutely¡ªtoughened alumina oxide material resists thermal shock for prolonged use.
Ready to elevate your welding results? Contact us today for bulk pricing or technical support. Send an inquiry now to secure your 10-pack of premium TIG ceramic cups!
