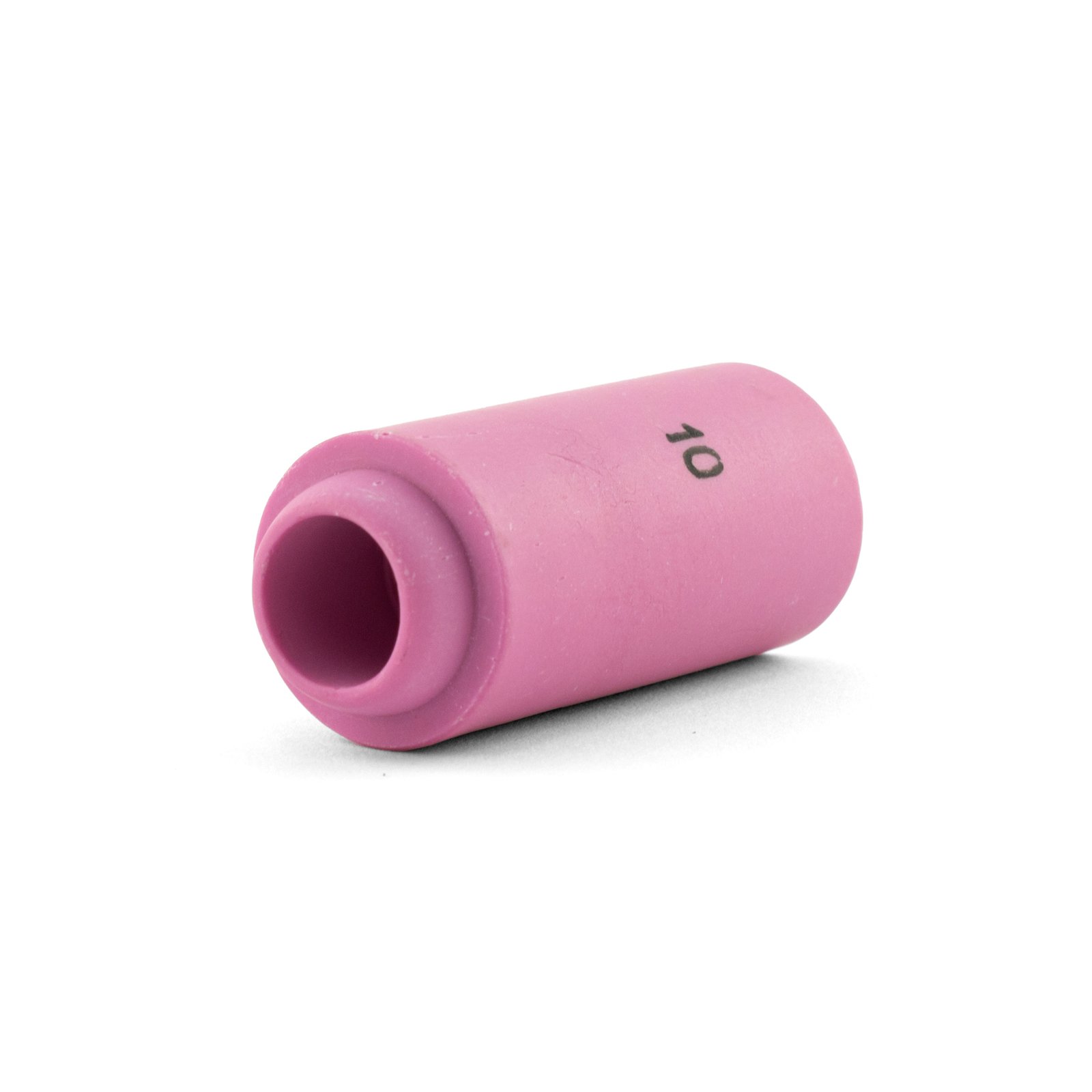

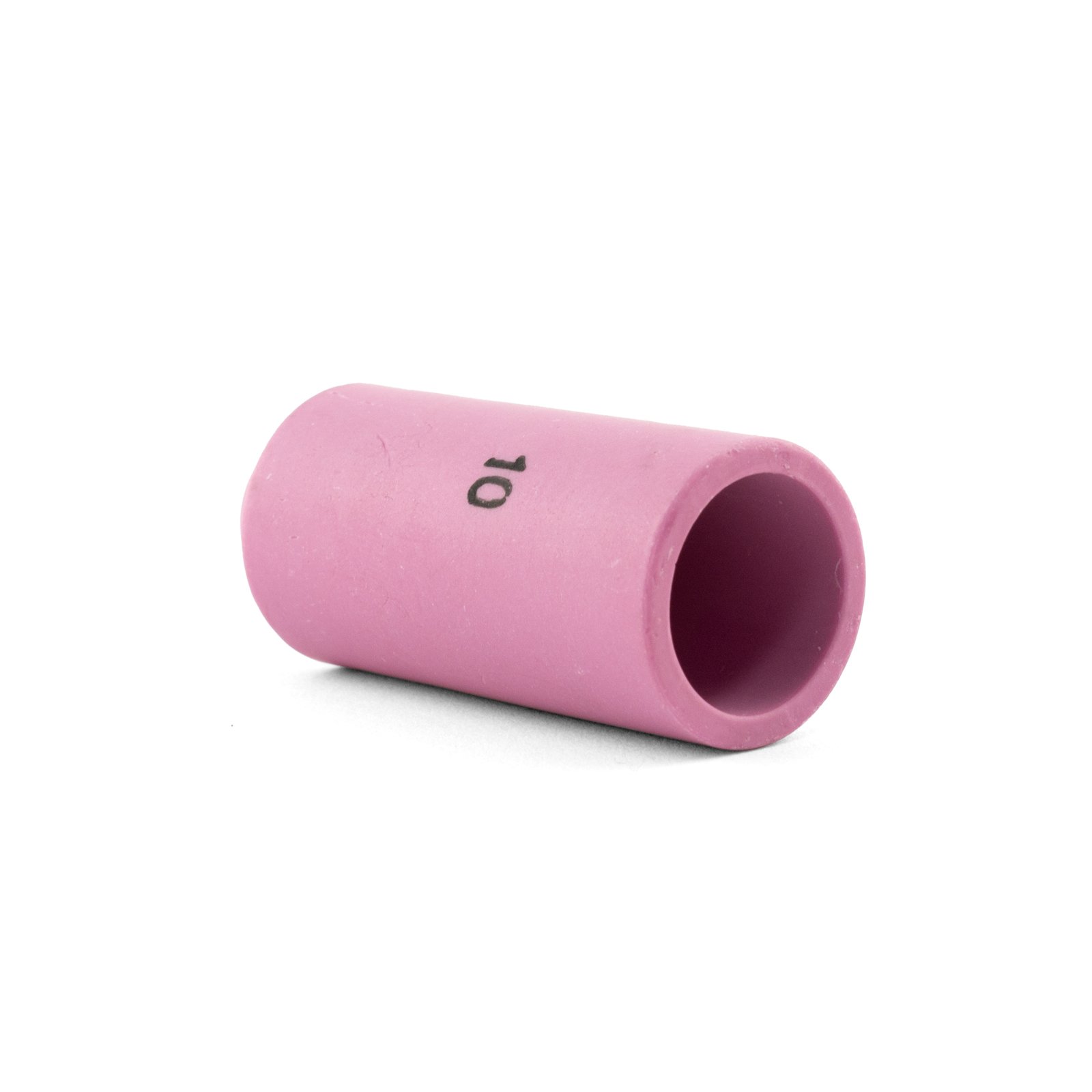

TIG Ceramic Nozzle #10 for WP-17/18/26 – 40 Pack
$99.00
Product Description
High-quality Alumina TIG Ceramic Nozzle #10, designed for WP-17, WP-18, and WP-26 series torches. Offers excellent heat resistance, low thermal conductivity, and durability for harsh welding conditions. 40-pack for extended use.

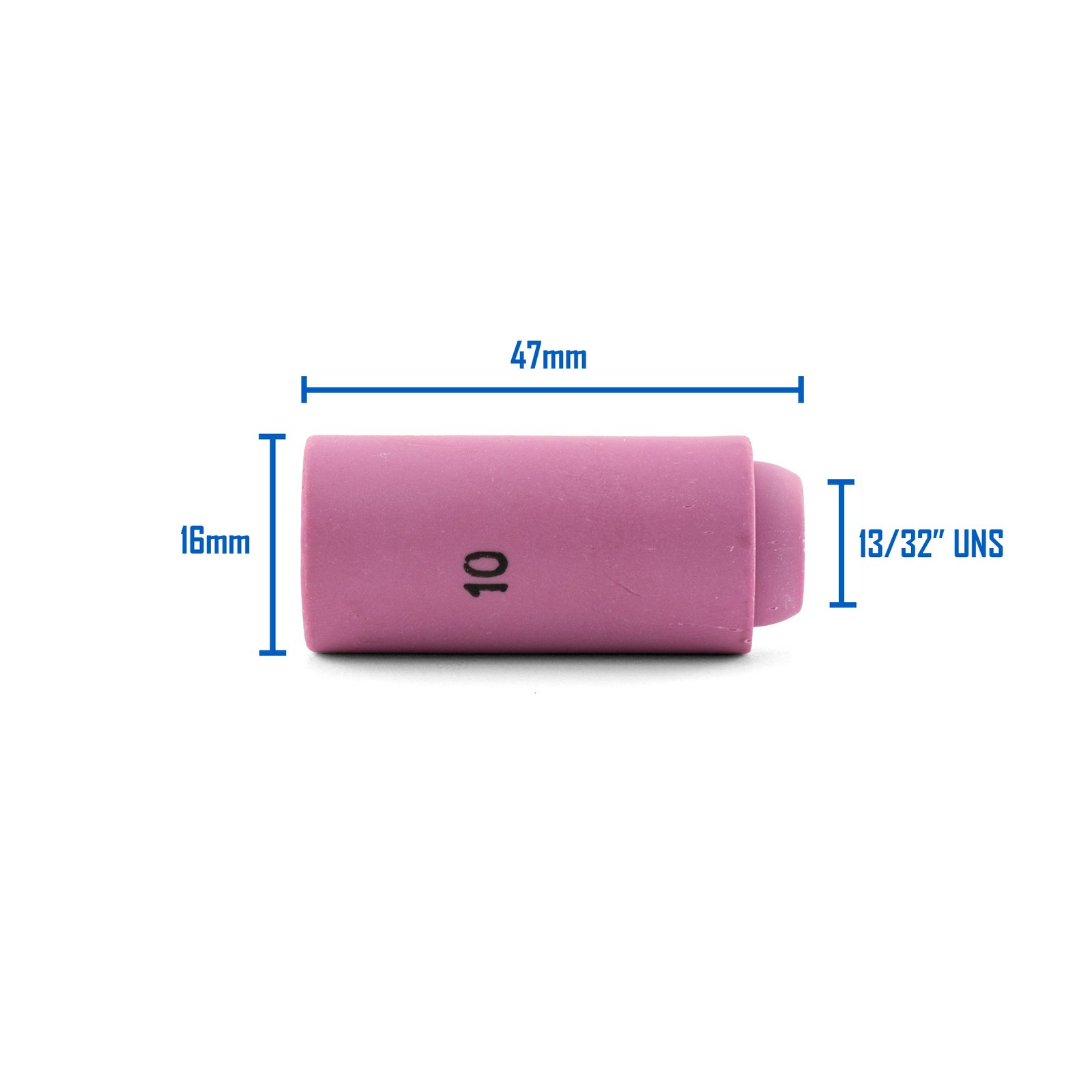

Specifications
| Size | #10 |
| Torch Compatibility | WP-17 / 18 / 26 |
| Material | Alumina |
| Pack Quantity | 40 Each |
| Thread | 13/32 UNS |
TIG Ceramic Cup Nozzle #10 – 40 Pack for WP-17/18/26 Torches
| Description | High-quality alumina TIG ceramic nozzle designed for WP-17, WP-18, and WP-26 series torches |
|---|---|
| Core Size | #10 |
| Pack Quantity | 40 pieces |
| Thread Type | 13/32 UNS |
| Length | 47mm |
| Diameter | 16mm |
| Material | Premium alumina |
| Heat Resistance | Excellent high-temperature tolerance |
| Durability | Enhanced breakage resistance for harsh conditions |
| Part Number | P10N45 |
Why Choose Our TIG Ceramic Nozzles?
Optimize your welding precision with Hampdon Industrial’s alumina ceramic cups. Engineered for professional welders, these nozzles deliver superior gas control across diverse welding configurations while withstanding extreme heat and mechanical stress.
Key Performance Advantages
- Low thermal conductivity ensures stable arc performance
- Precision gas shielding for clean weld beads
- Long service life reduces replacement frequency
- Perfect fit for WP-17/18/26 torch series
Applications
Ideal for industrial TIG welding operations including automotive, aerospace, and metal fabrication where consistent gas coverage and heat management are critical.
Quality Assurance
Manufactured to strict industrial standards, our ceramic cups undergo rigorous testing to ensure dimensional accuracy and thermal stability. Trusted by professionals worldwide for reliable performance in demanding work environments.
FAQ
Q: Will this fit other torch models besides WP-17/18/26?
A: Designed specifically for 17, 18 & 26 series torches. Contact us for compatibility with other models.
Q: What temperature range can these nozzles withstand?
A: Engineered for high-heat welding applications with exceptional thermal resistance.
Ready to Enhance Your Welding Setup?
Contact our technical team for bulk pricing, customization options, or application guidance. We ship globally and provide dedicated support for industrial welding professionals.
Packaging & Transportation
Weldsuper Nozzles
