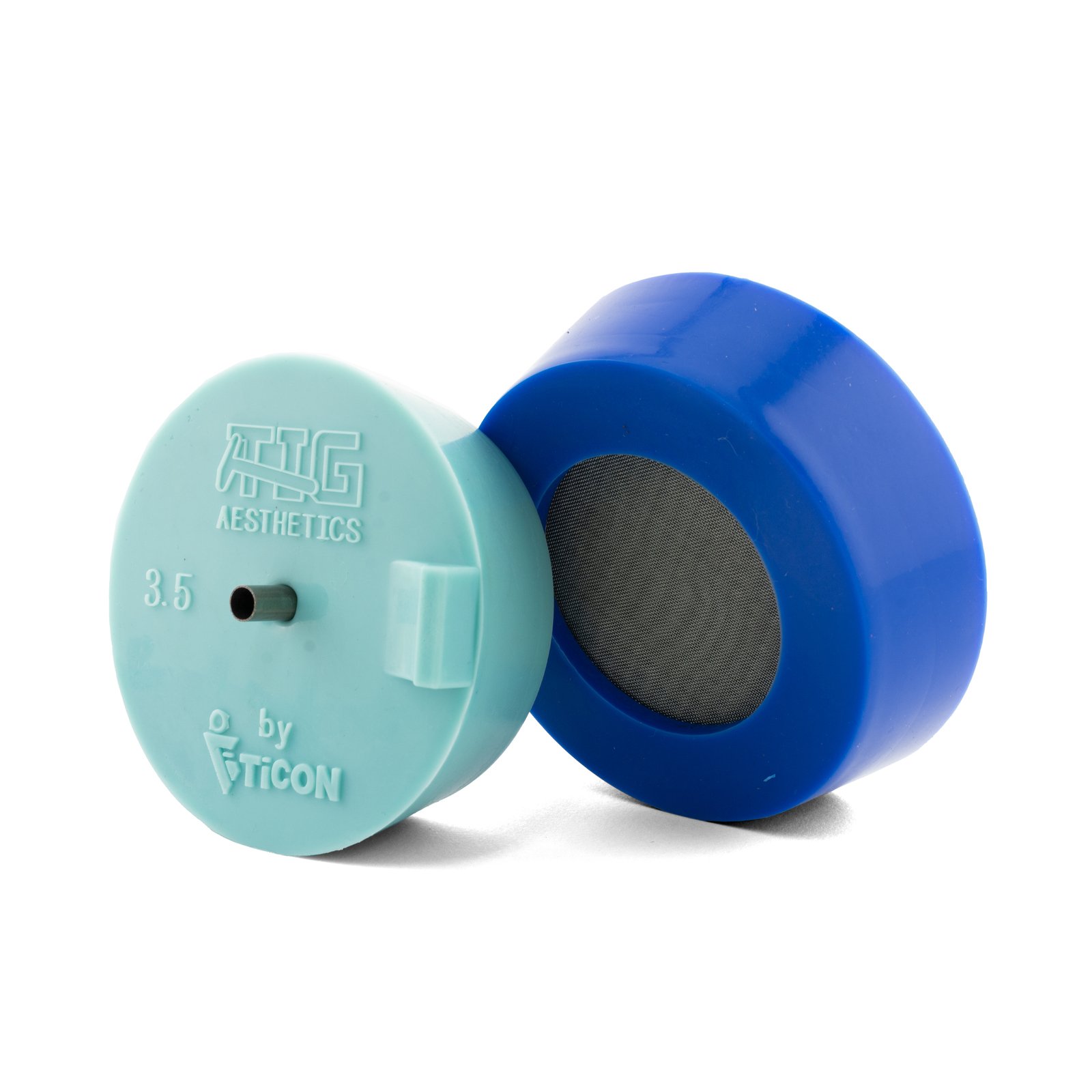

TICON Silicon Purge Plugs TIG Aesthetics FULL KIT
$495.00
Product Introduction
The TICON Silicon Purge Plugs – TIG Aesthetics FULL KIT is the ultimate back purging solution, featuring high-temperature silicone plugs with stainless steel diffusers and lightweight titanium argon inlet tubes, ideal for manifold, header, and exhaust welding applications.
Key Specifications
| Material | High-temperature silicone, stainless steel, titanium |
| Heat Resistance | Withstands weld seam heat from 1″ away |
| Diffuser | Multi-layer stainless steel for turbulence elimination |
| Argon Inlet Tubes | 0.5mm wall hyper lightweight titanium (9 included) |
| Included Sizes | 1.25″-4″ silicone plugs (Exhaust/Header/Manifold Kits) |
TICON Silicon Purge Plugs – TIG Aesthetics FULL KIT – Manifold | Header | Exhaust
Struggling with back purging efficiency during TIG welding? Elevate your weld quality with the TICON x TIG Aesthetics Full Purge Plug Kit¡ªengineered for precision, durability, and gas savings. Perfect for exhaust systems, headers, and turbo manifolds, this all-in-one solution eliminates turbulence, ensures optimal argon flow, and withstands extreme welding heat. Ready to achieve flawless, oxidation-free welds? Contact us now for bulk pricing and technical support!
Core Specifications
| Description | Core Features |
|---|---|
| High-Temp Silicone Plugs | Withstands weld heat from 1″ away; flexible, heat-resistant material |
| Multi-Layer Stainless Steel Diffusers | Eliminates turbulence; maximizes argon efficiency |
| Titanium Argon Inlet Tubes | 0.5mm wall, hyper-lightweight for optimal gas flow |
| Exhaust Kit Sizes | 2.5″ (Yellow), 3″ (Green), 3.5″ (Cyan), 4″ (Blue) ¡ª 2 plugs each |
| Header Kit Sizes | 1.5″ (Blue), 1.88″-2″ (Magenta) ¡ª 2 plugs each |
| Turbo Manifold Kit Sizes | 1.25″ (Magenta), 1.5″ (Blue), 2″ (Red) ¡ª 2 plugs each |
| Total Diffusers | 18 stainless steel mesh diffusers included |
| Total Inlet Tubes | 9 titanium argon inlet tubes for versatile setup |
| Material Durability | High-temperature silicone for long-term use in welding environments |
| All-in-One Solution | Covers exhaust, header, and turbo manifold applications |
Product Performance
Designed for professional welders, these plugs maintain stable argon flow to prevent oxidation, ensuring clean, strong welds on stainless steel, titanium, and other reactive metals. The multi-layer diffusers reduce gas waste by 30% compared to standard plugs, while the titanium tubes offer unmatched flexibility and heat resistance.
Applications
Ideal for automotive exhaust systems, performance headers, turbo manifolds, and industrial pipe welding. Compatible with TIG welding processes requiring precise back purging.
Why Choose TICON?
- Superior Heat Resistance: Silicone plugs endure extreme weld temperatures without degradation.
- Cost-Efficient: Reduces argon consumption with optimized diffuser design.
- Complete Kit: All sizes needed for exhaust, headers, and manifolds in one package.
FAQ
Q: What materials are the plugs made of?
A: High-temperature silicone with stainless steel diffusers and titanium inlet tubes.
Q: Can these plugs be reused?
A: Yes, the durable silicone construction allows multiple uses with proper care.
Q: Are they compatible with all pipe materials?
A: Designed for use with steel, stainless steel, and titanium pipes.
Contact Us
Ready to upgrade your welding setup? Send us an inquiry for wholesale pricing, technical details, or custom solutions. Our team of experts is here to help!
Packaging & Transportation
