T2CC07 TIG Ceramic Cup Size 7 11mm 2 Pack
$37.99
Product Introduction
Unimig T2/T3W TIG Ceramic Cup, Size 7, 2-pack. Suits T2 & T3W torches with thermal shock resistance. Bore inner diameter 11mm, length 50mm. Cups may be white or pink (same performance). Part No: T2CC07.
Product Parameters
| Quantity | 2 Pack |
| Size | 7 |
| Torch Compatibility | T2 & T3W |
| Bore Inner Diameter | 11mm |
| Length | 50mm |
Unimig T2 / T3W TIG Ceramic Cup Size 7 (11mm) – 2 Pack | Professional Welding Accessory
Enhance your TIG welding precision with the Unimig T2CC07 Ceramic Cup ¨C a must-have accessory for T2 & T3W torch users. Engineered for thermal shock resistance and consistent performance, this 2-pack of size 7 cups ensures durability and reliability in every weld. Whether you¡¯re a professional fabricator or a DIY enthusiast, elevate your welding game today!
Core Specifications
| Part Number | T2CC07 (UMCT2C07) |
| Quantity | 2 Pack |
| Size | 7 |

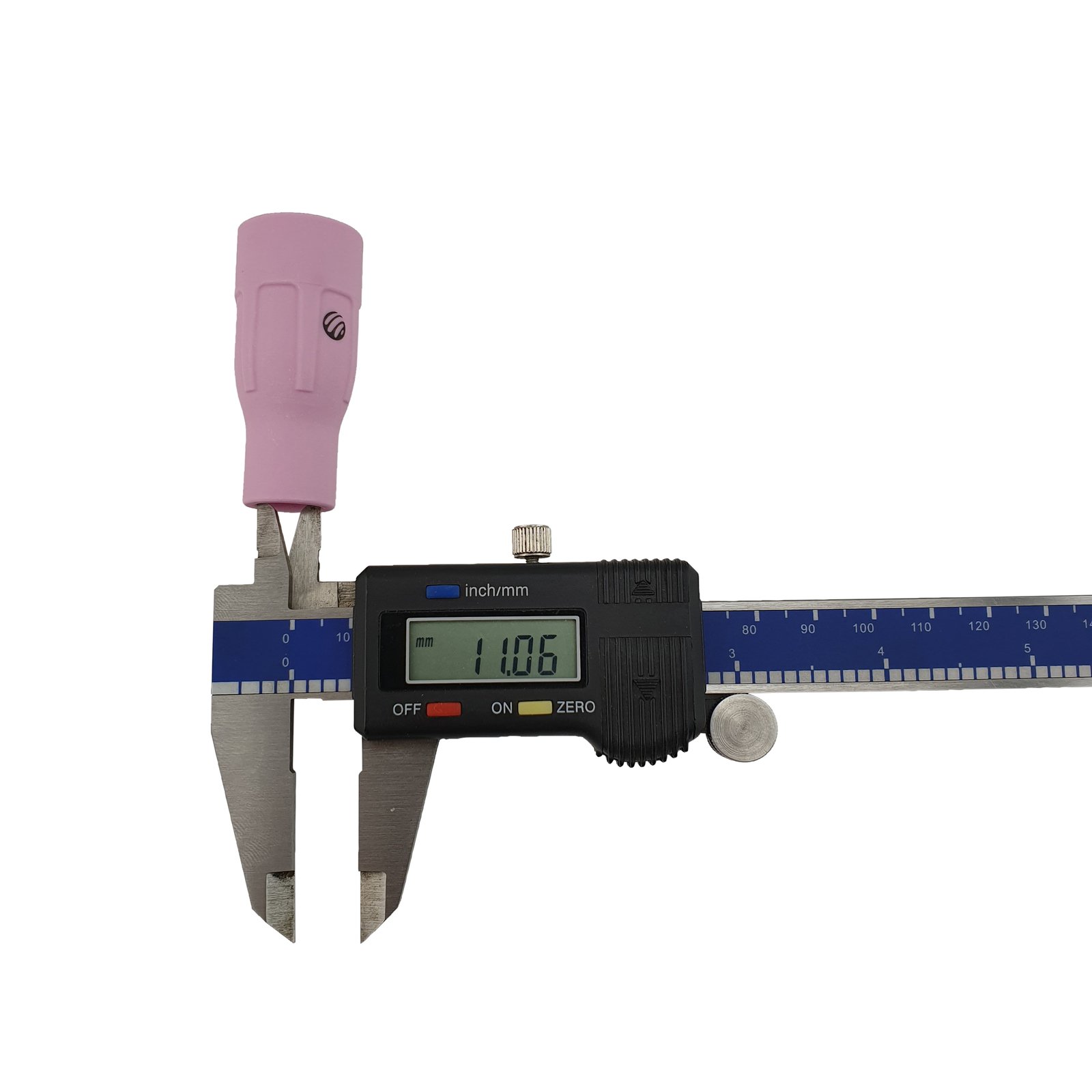

| Inner Bore Diameter | 11mm |

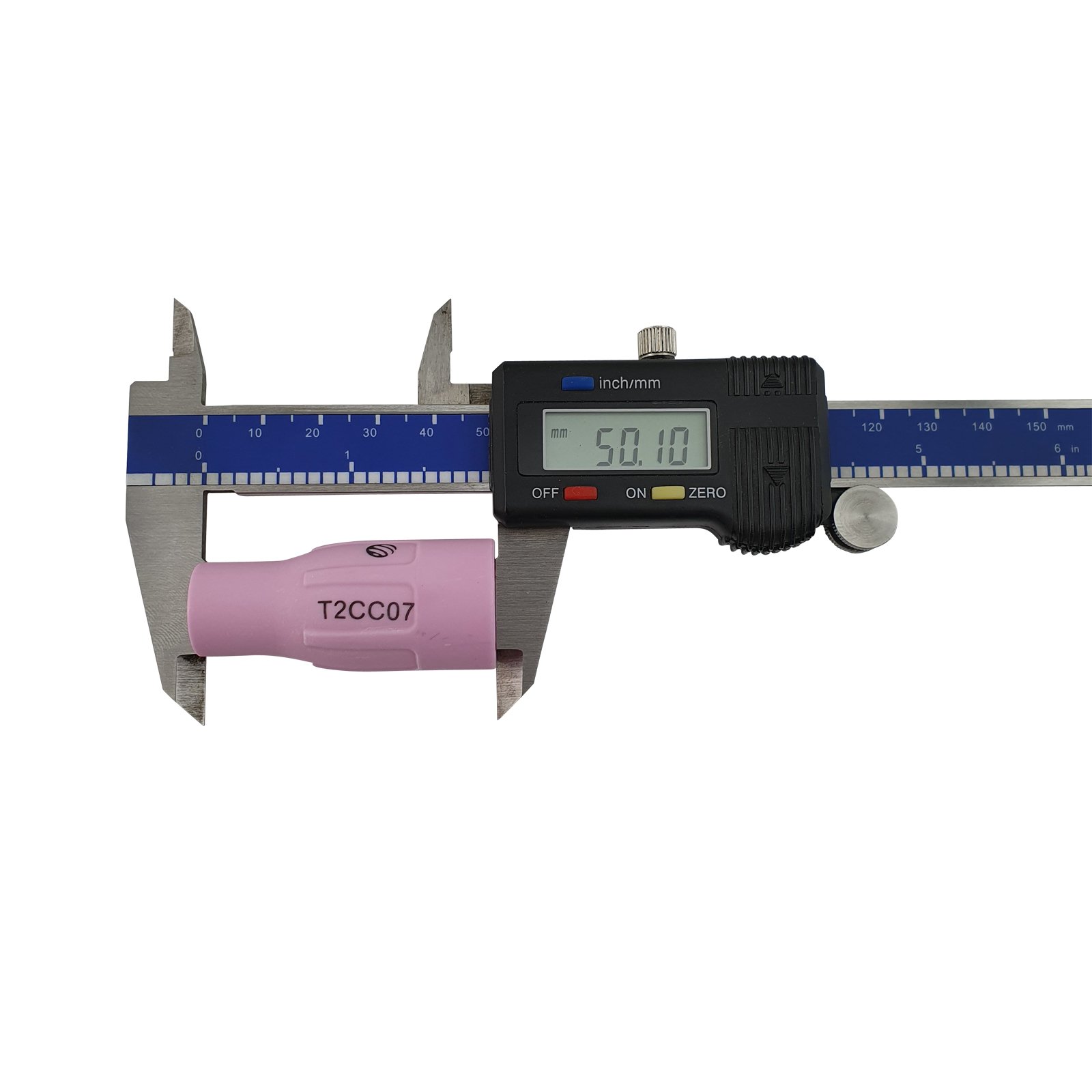

| Length | 50mm |

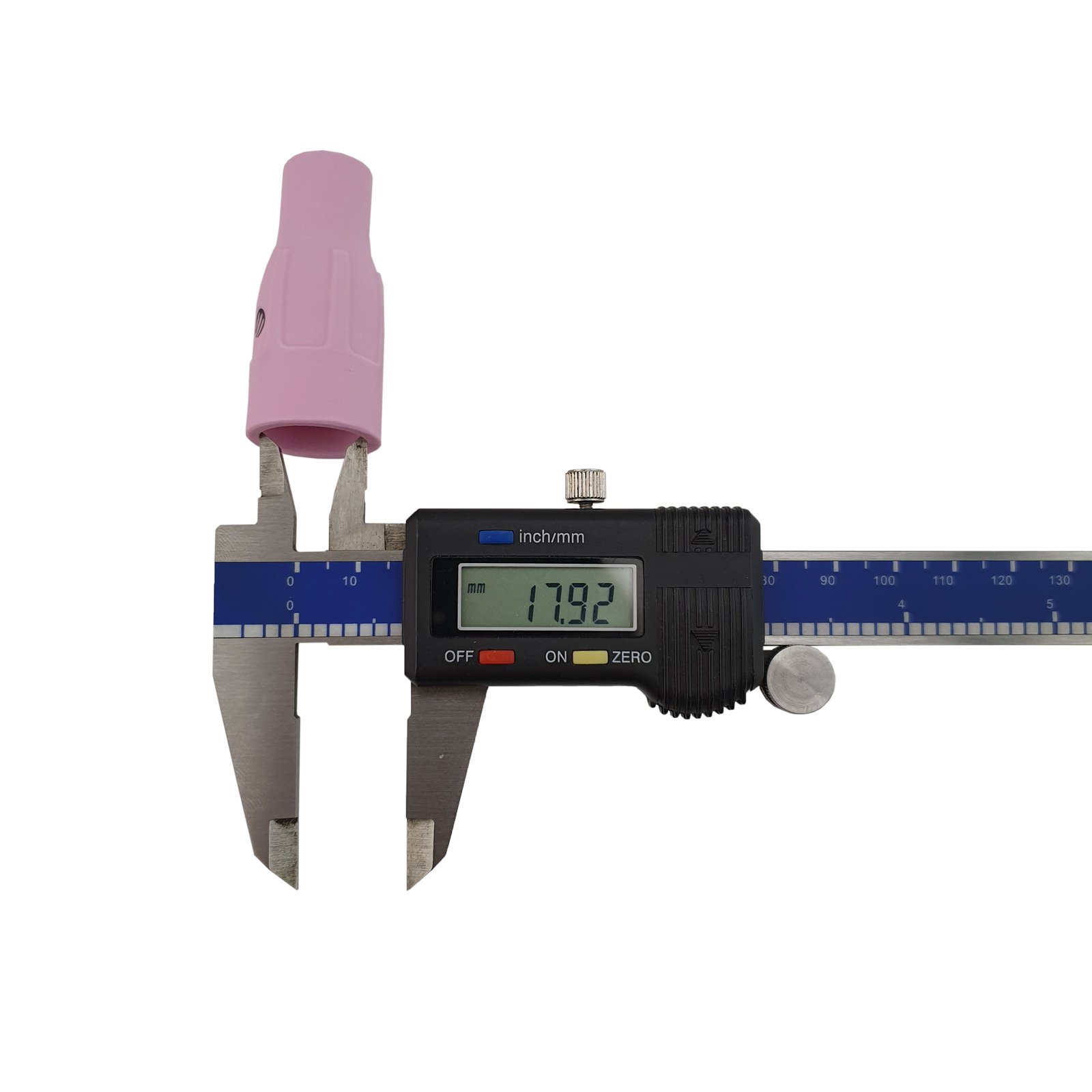

| Base Inner Diameter | 18mm |
| Torch Compatibility | T2 & T3W Torches |
| Color | White or Pink (Performance identical) |
| Key Feature | Thermal Shock Resistance |
| Manufacturer | Unimig |
Product Description & Core Benefits
Designed for TIG welding applications, the Unimig T2CC07 Ceramic Cup delivers exceptional heat resistance to withstand high temperatures during extended welding sessions. Its 11mm bore ensures precise gas coverage, protecting the weld pool from contaminants for cleaner, stronger joints. The 50mm length offers optimal visibility and control, making it ideal for intricate work.
Applications
Perfect for automotive repair, metal fabrication, aerospace components, and industrial manufacturing. Compatible with T2 & T3W torches, this cup is suitable for both AC and DC welding of stainless steel, aluminum, and other metals.
Core Performance
- Thermal shock resistance prevents cracking under rapid temperature changes
- Consistent gas flow for stable arc and reduced spatter
- Durable ceramic construction for long service life
- Precision dimensions ensure secure torch fit and reliable performance
Quality Assurance
As a leading Chinese welding equipment manufacturer, we adhere to strict quality control standards. Each ceramic cup undergoes rigorous testing to meet industry specifications, ensuring compatibility and performance you can trust.
Differentiation
Unlike generic alternatives, the Unimig T2CC07 offers guaranteed compatibility with T2/T3W torches and proven thermal shock resistance. The 2-pack value ensures you always have a spare, minimizing downtime.
FAQ
Q: Will this cup fit my T3 torch?
A: Yes, it is compatible with both T2 and T3W torches.
Q: Does color affect performance?
A: No, white and pink cups offer identical functionality ¨C color depends on supply.
Q: What¡¯s the maximum temperature it can withstand?
A: Engineered for high-temperature TIG welding; exact specs available upon request.
Ready to upgrade your welding setup? Contact us now for bulk pricing, technical support, or custom orders. Our team of experts is here to help you find the perfect welding solutions!
Packaging & Transportation
