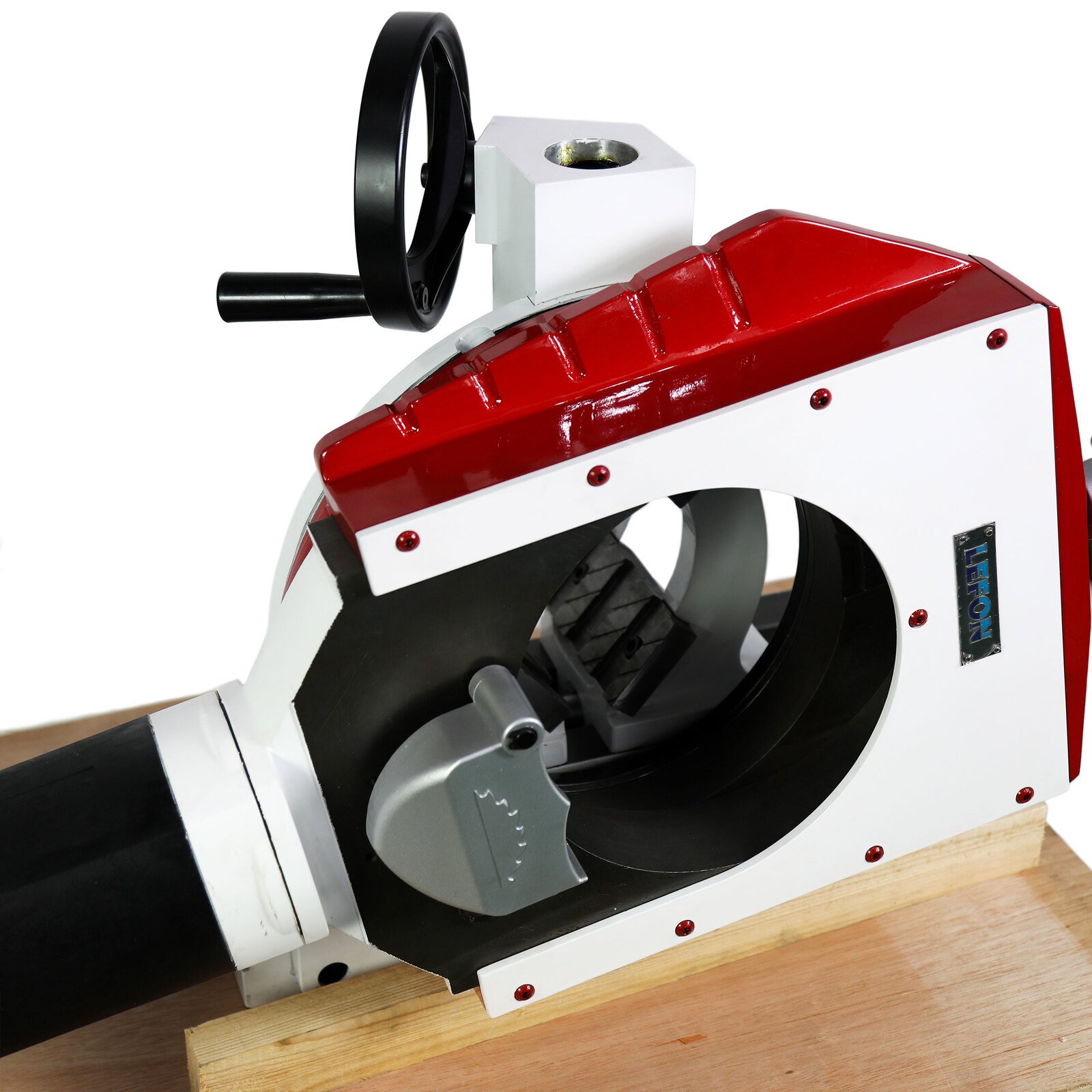

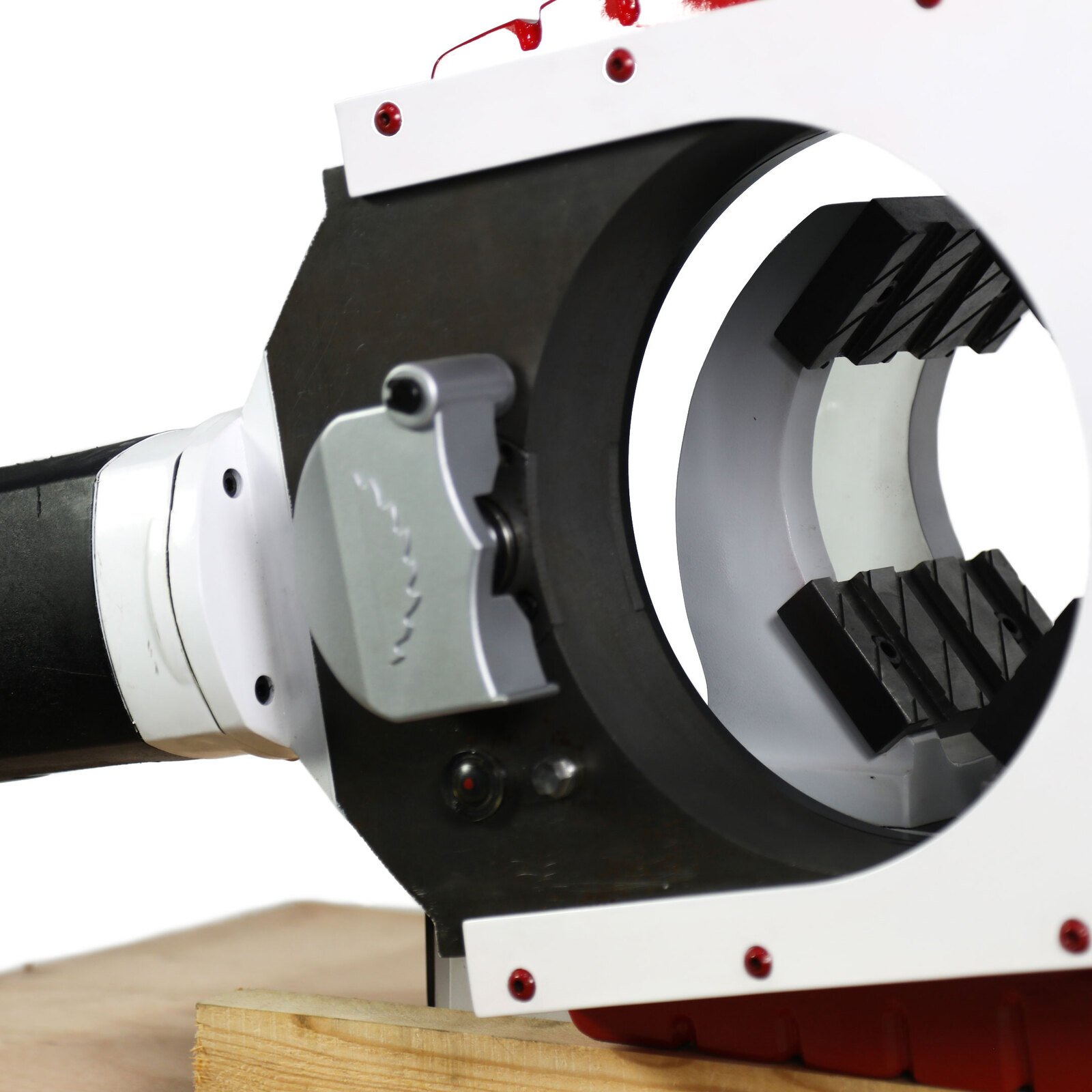

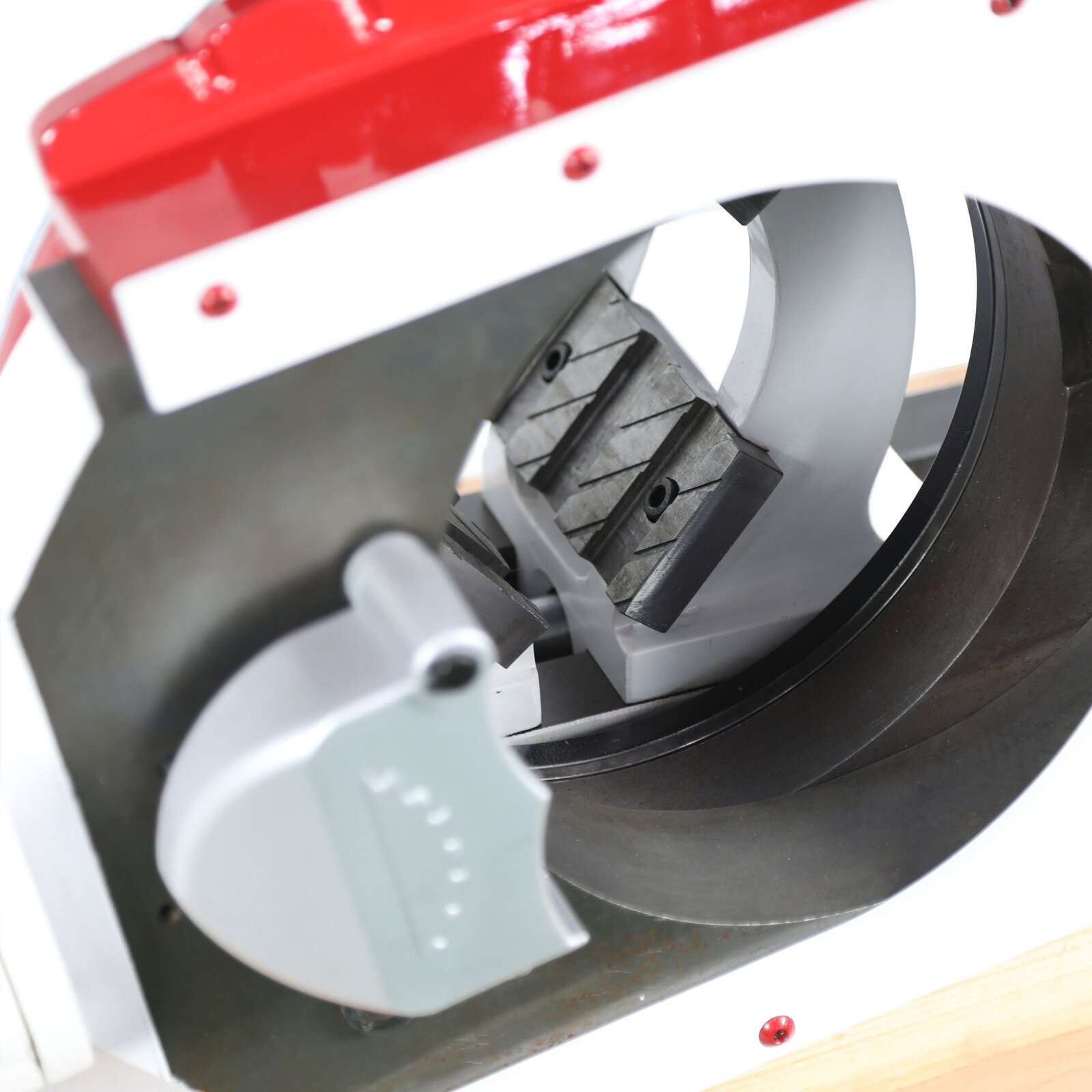

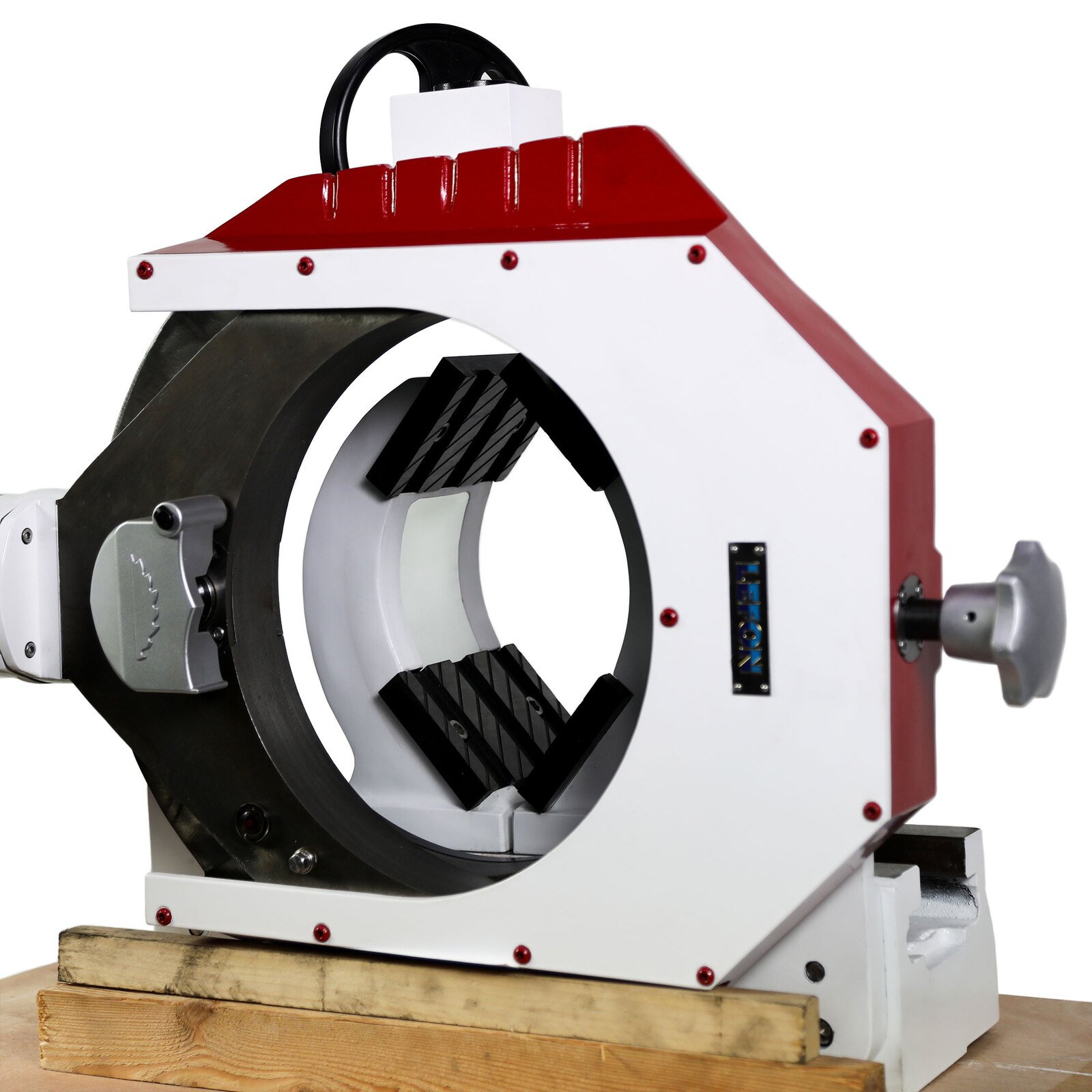

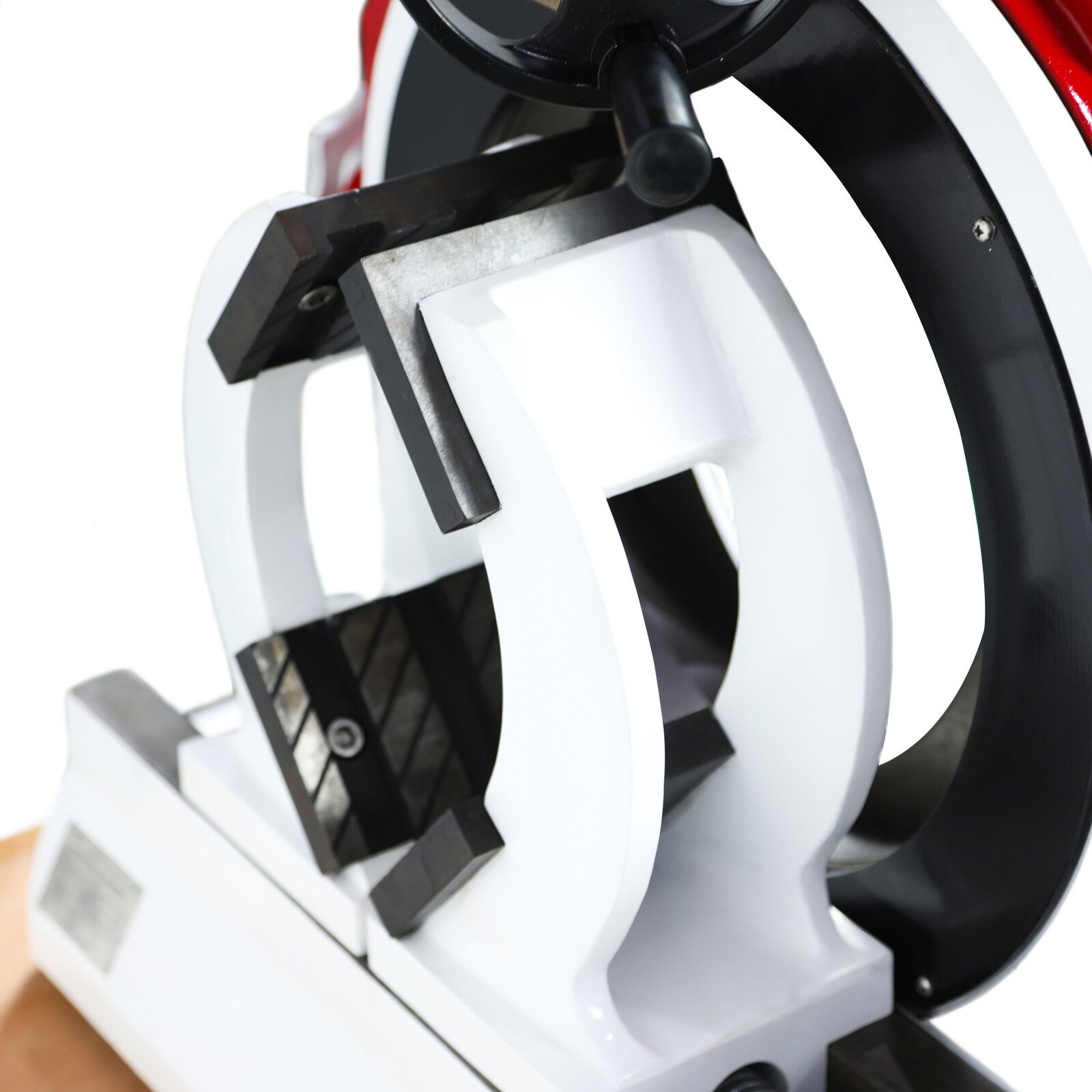

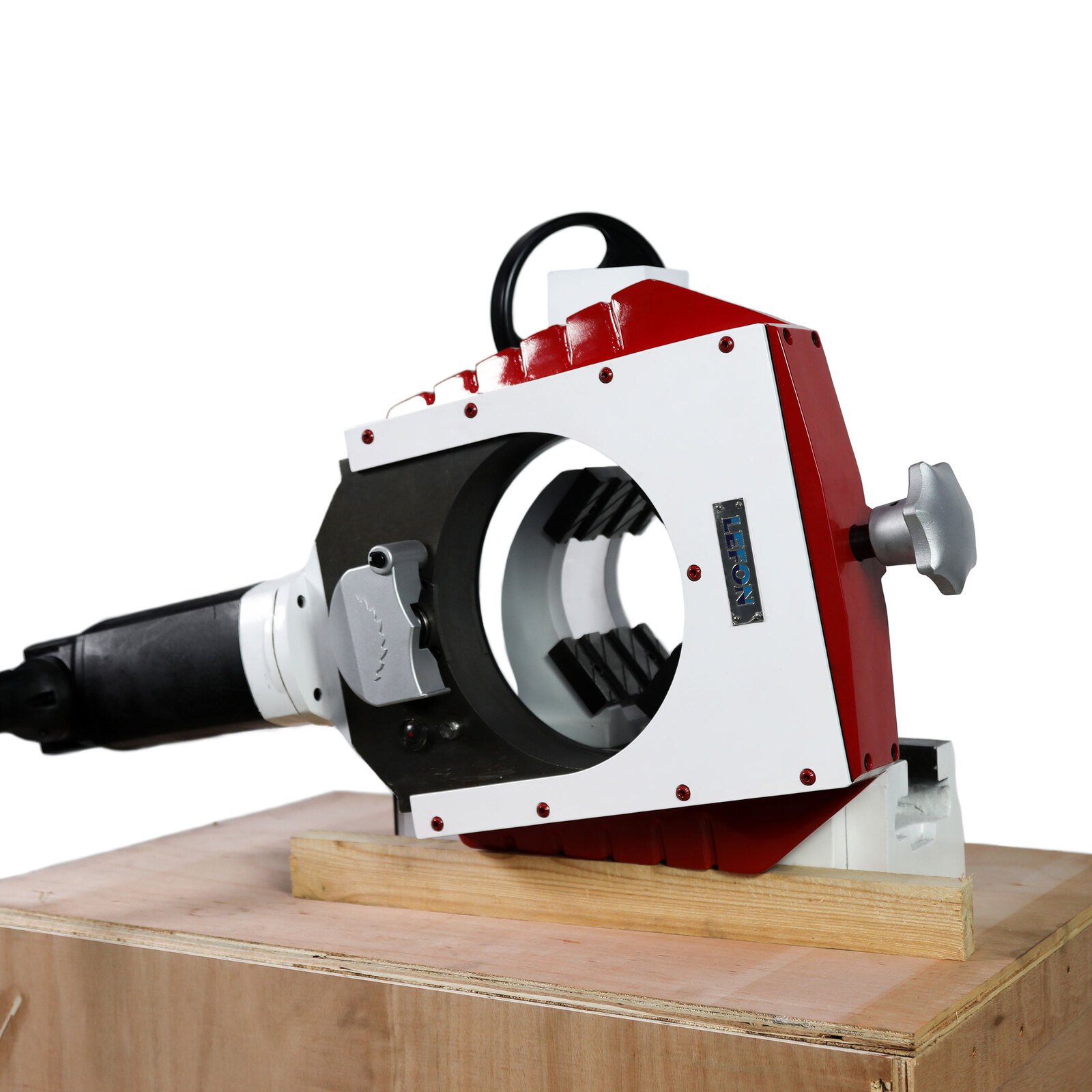

Lefon R8 Orbital Pipe Saw Bevelling Cutter Machine
$6,999.00
Product Introduction
A cost-effective and reliable orbital pipe saw for square cutting and beveling of 6-8 inch (150-230mm) metal pipes. Delivers precise, clean cuts suitable for orbital welding with no additional prep work needed. Features cold cutting to prevent thermal distortion and fast, deformation-free clamping.
Specifications
| Model | R8 (GF8 equivalent) |
| Cutting Range | 6″-8″ (150-230mm) pipes, 2.0-10mm thickness |
| Power | 1600W, 100-220V / 50-60Hz |
| Blade Speed | 150-250rpm |
| Weight | 110kg |
Lefon R8 Orbital Pipe Saw / Cutter – Precision Cutting & Bevelling Machine
Why Choose Lefon R8? Transform Your Metal Pipe Processing
Effortlessly achieve square, clean cuts and precise bevels in seconds with the Lefon R8 Orbital Pipe Saw¡ªyour ultimate solution for professional metal pipe fabrication. Engineered for reliability and cost-effectiveness, this CE and ISO-certified machine eliminates post-cut preparation, making it ideal for orbital welding applications.
Core Technical Specifications
| Model | R8 (GF8 equivalent) |
| Pipe Capacity | 6″-8″ (150mm-230mm), 2.0mm-10mm thickness |
| Blade Speed | 150-250rpm (adjustable) |
| Power | 1600W, 100-220V/50-60Hz |
| Weight | 110kg |
| Cutting Method | Cold cut (no thermal distortion) |
| Beveling | Simultaneous cutting & beveling with optional blade |
| Clamping | Fast, deformation-free system |
| Cut Time | Single rotation (seconds per cut) |
| Standards | CE & ISO certified |
Applications: Versatile Performance Across Materials
Perfect for stainless steel, low/unalloyed steel, casting materials, non-ferrous metals (copper, aluminum), and plastic pipes. Ideal for industrial manufacturing, oil & gas, chemical, and construction sectors.
Key Advantages Over Competitors
? Precision Redefined: Right-angle cuts eliminate rework for orbital welding
? Time-Saving: One-rotation cuts complete in seconds
? Cost-Efficient: HSS blades deliver 150+ cuts (2″ schedule 40 stainless) with proper use
? User-Friendly: Easy setup regardless of pipe diameter; minimal training required
In the Box: Everything You Need
? 1x Base plate
? 2x Cutting machine
? 3x Standard blades (including TIALN coated options)
? 1x Ring spanner
? 2x Hexagon socket head wrenches
? 1x Lefon saw blade lubricant
? 1x Operations manual & spare parts list
Quality Assurance
Manufactured to CE and ISO standards, ensuring durability and performance. European-made HSS blades with TIALN coating extend tool life and maintain cutting precision.
Frequently Asked Questions
Q: What materials can the R8 cut?
A: Stainless steel, low/unalloyed steel, castings, non-ferrous metals (copper, aluminum), and plastic pipes.
Q: Does it require a stand?
A: No, the stand is sold separately.
Q: How thick can it cut?
A: Pipes 2.0mm to 10mm thick (6″-8″ diameter).
Ready to Elevate Your Pipe Fabrication? Contact Us Now!
For bulk pricing, technical support, or blade compatibility queries, send us an inquiry today. Experience industrial-grade precision with the Lefon R8¡ªyour partner in efficient pipe processing.
