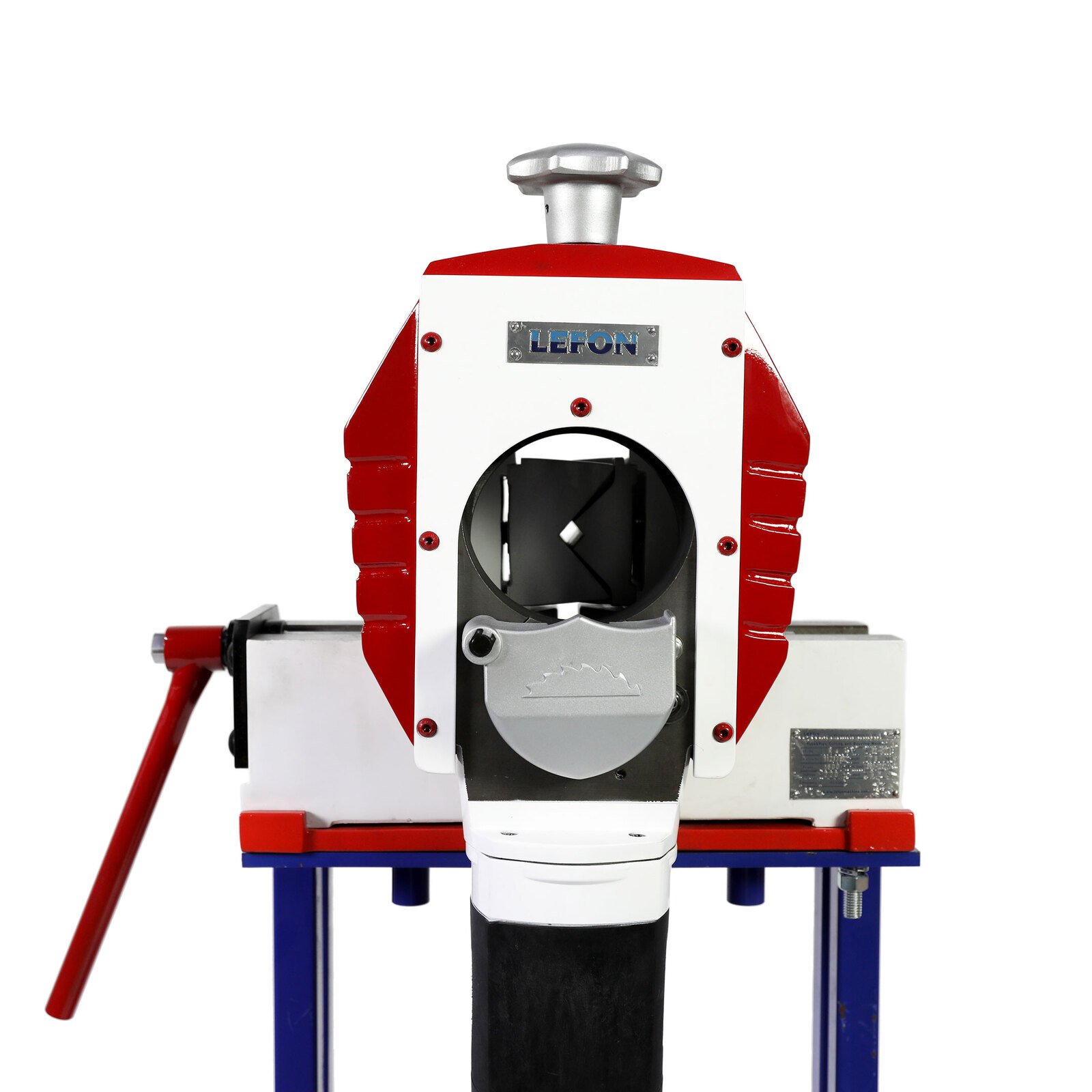

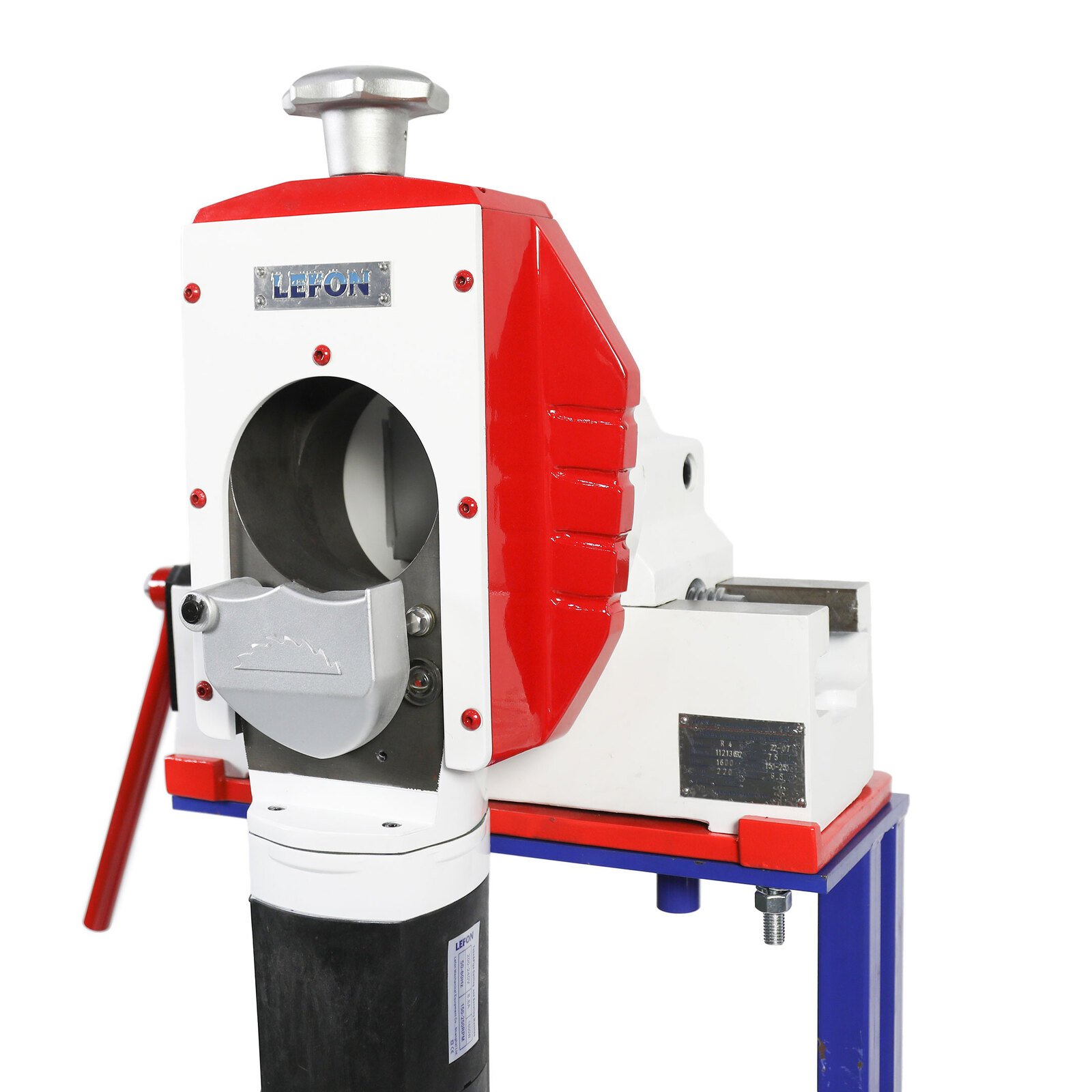

Hampdon Industrial stocks the industry leading Lefon range of orbital pipe saws. LEFON Orbital Pipe Saws are the cost effective and reliable solution to square cut and bevel almost all types of metal pipe. Lefon orbital pipe saws deliver a precise, square and clean cut, making it unnecessary to do any additional preparation work on the cut-off face for orbital welding.

Model Number R4 (GF4 equivalent part number)
Cuts ½ inch to 4 inch pipes (19mm – 120mm) 1.0mm to 7mm thickness
Weight 75kg
150 – 250rpm of blade
1600W power output 100-220V / 50-60Hz
Manufactured to CE and ISO standards
Application, Stainless, Low and unalloyed, Casting materials, non-ferrous metal, Copper, aluminium and plastic pipes
Precise right angle cut
Cold cut to prevent thermal distortion
Fast pipe clamping, deformation-free clamping system
Easy set up regardless of the diameter
Easy execution of the cut
Just a few seconds to finish the cut with one single rotation
Simultaneous cutting and beveling with beveling blade mounted
Cutting speed regulation suitable for each wall thickness pipe
Please note: Zip financing is charged at an additional 6% on this item.
This machine doesn’t come with a stand
Use with XDP 2000 cutting fluid found in our store.  Part number 81210
A skilled Operator using our European made HSS blades, with the correct lubrication can get at least 150 x 2″ schedule 40 stainless steel pipe cuts with 1 blade
Part number for blades are below
63mm x 1.6mm TIALN Coated 64 Teeth. Part number – HSS63x1.6x64T
63mm x 1.6mm – TIALN Coated 64 Teeth Part number – HSS68x1.6x44T
68mm x 2.0mm – TIALN Coated 72 Teeth Cut and Bevel Blade 30 Degree – Part number 30DEGCB

Whats in the box?

1 x One base plate
1 x Cutting machine
3 x Three standard blades
1 x One ring spanner
2 x Two hexagon socket head wrenches
1 x One tube of Lefon saw blade lubricant
1 x One operations manual
1 x One spare parts list
