Harris 3H Super Heating Tip 915mm Barrel Oxy/LPG 22903H
$290.00
Product Introduction
Harris 3H Super Heating Tip with 915mm Straight Barrel, Model 22903H, designed for Oxygen/LPG (Propane). Delivers over 1 million BTU/h using low-cost, safe alternate fuels. Compatible with Harris mixer F43.
Specifications
| Model | 22903H |
| Fuel Type | Oxygen/LPG (Propane) |
| Heat Output | Over 1,000,000 BTU/h |
| Barrel | 915mm Straight (Part No. 23935F) |
| Compatibility | Harris Mixer F43 |
Harris 3H Super Heating Tip & 915mm Barrel – High-Efficiency Oxy/LPG Welding Solution
| Description | Professional-grade heating tip with 915mm straight barrel for oxy/LPG (propane) applications, designed for industrial heating and cutting tasks |
|---|---|
| Core Benefit | Delivers over 1,000,000 BTU/hour for rapid heating, reducing project timelines significantly |
| Model Number | 22903H |

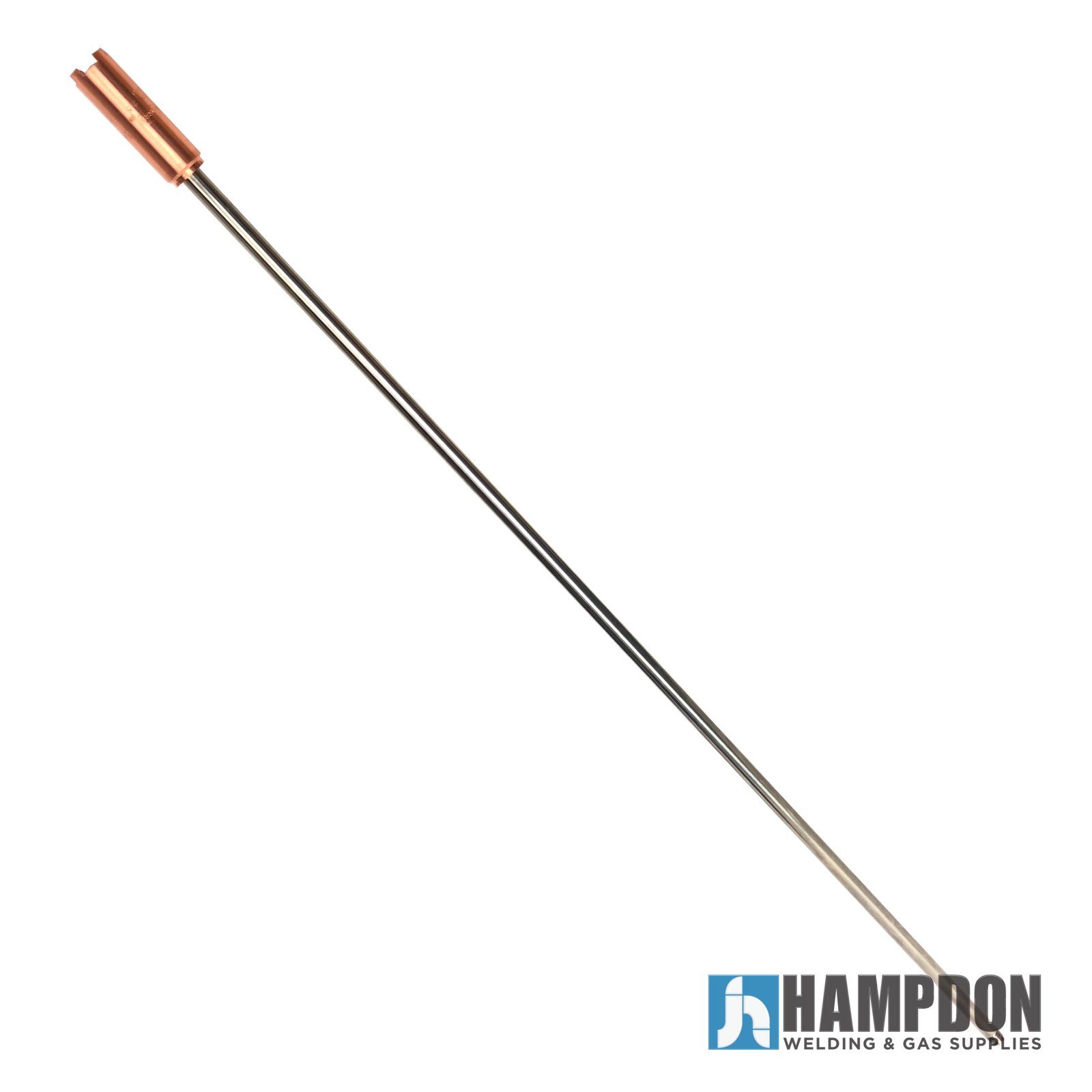

| Barrel Specification | Straight barrel (Part No. 23935F), 915mm length for extended reach |
| Gas Compatibility | Optimized for Oxygen and LPG (Propane) fuels |
| Mixer Compatibility | Requires Harris F43 mixer (sold separately) |
| Operational Efficiency | Utilizes low-cost, readily available alternate fuels without performance compromise |
| Industrial Application | Ideal for heavy-duty heating, metal fabrication, and large-scale industrial projects |
| Safety Standard | Engineered for safe fuel utilization with reliable flame control |
| Manufacturer | Harris – Trusted name in welding and cutting equipment |
Why Choose Harris 22903H Heating Tip?
This professional heating system combines power and precision, making it the ultimate tool for demanding industrial environments. With its high BTU output and compatibility with cost-effective LPG fuel, it delivers exceptional performance while reducing operational costs. The extended 915mm barrel provides superior reach, allowing operators to access hard-to-reach work areas safely and efficiently.
Applications & Performance
Perfect for metal preheating, large-scale soldering, and industrial heating applications. The Multi Flame technology ensures stable, adjustable flames for precise temperature control, while the robust construction guarantees durability even in harsh working conditions. Experience faster heating cycles and improved workflow efficiency with this industry-leading solution.
Quality & Reliability
Backed by Harris’s decades of expertise in welding technology, this heating tip meets rigorous quality standards. Each component undergoes strict testing to ensure consistent performance and long service life, making it a smart investment for professional workshops and industrial facilities.
FAQ
- What fuel types can this tip use? Specifically designed for Oxygen and LPG (Propane) combinations.
- Is the mixer included? No, requires separate Harris F43 mixer for operation.
- What’s the maximum BTU output? Exceeds 1,000,000 BTU per hour under optimal conditions.
- Can this be used for cutting applications? Primarily designed for heating; consult technical specifications for cutting compatibility.
Ready to enhance your industrial heating capabilities? Contact our technical team today for personalized recommendations and bulk pricing options.
