FURICK FU12KC Pyrex TIG CUP 2 Fupa #12 Titanium Ring Kit
$137.50
Product Introduction

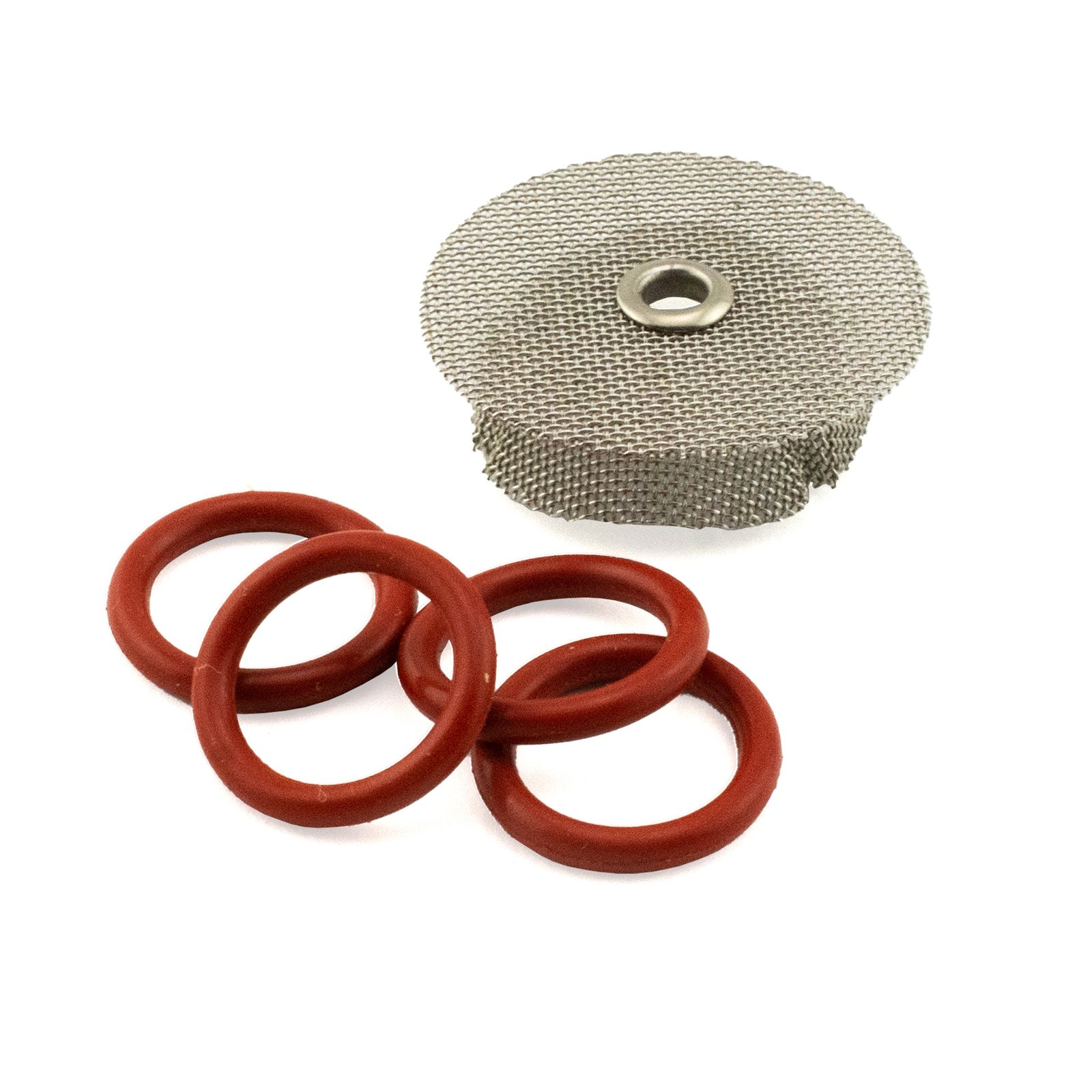

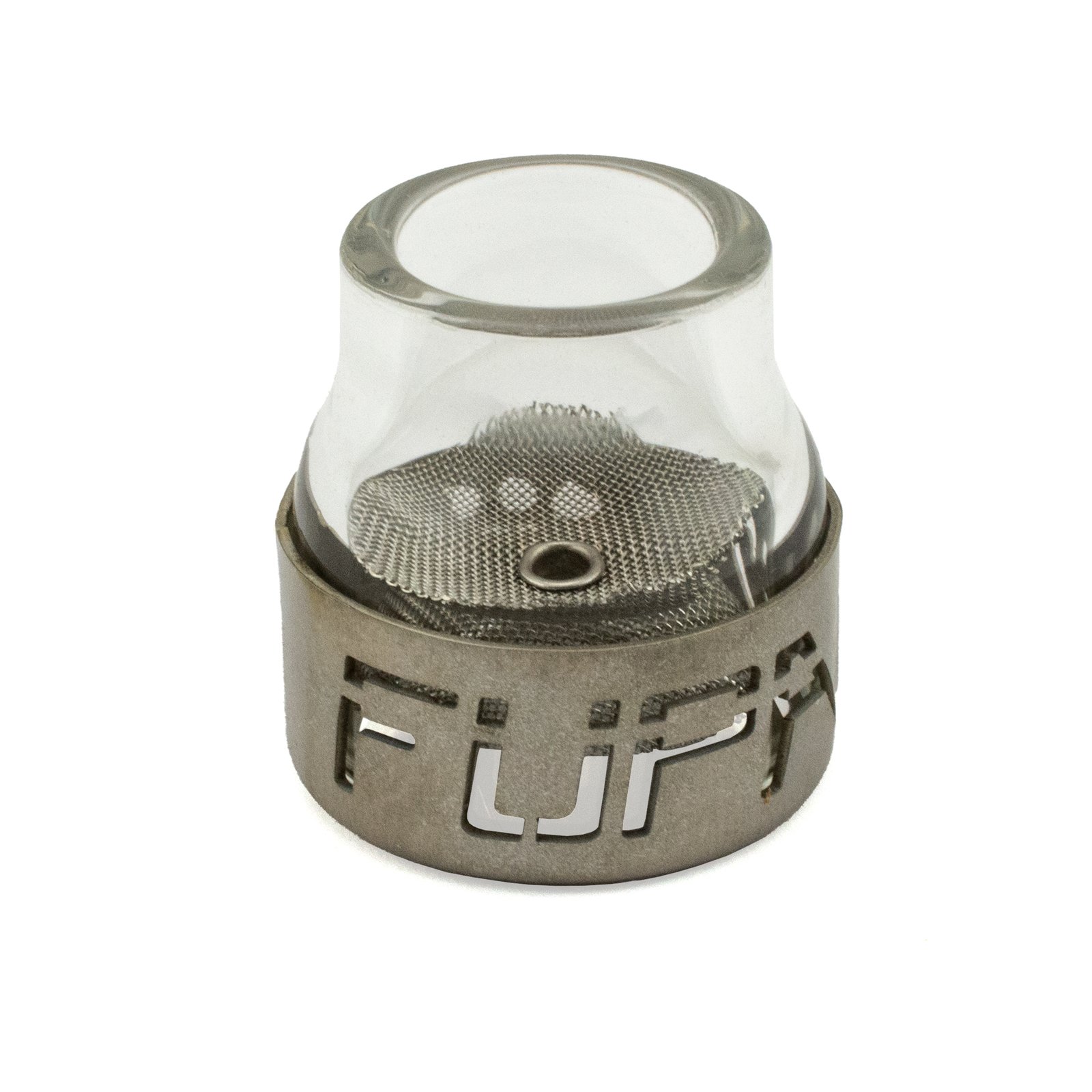

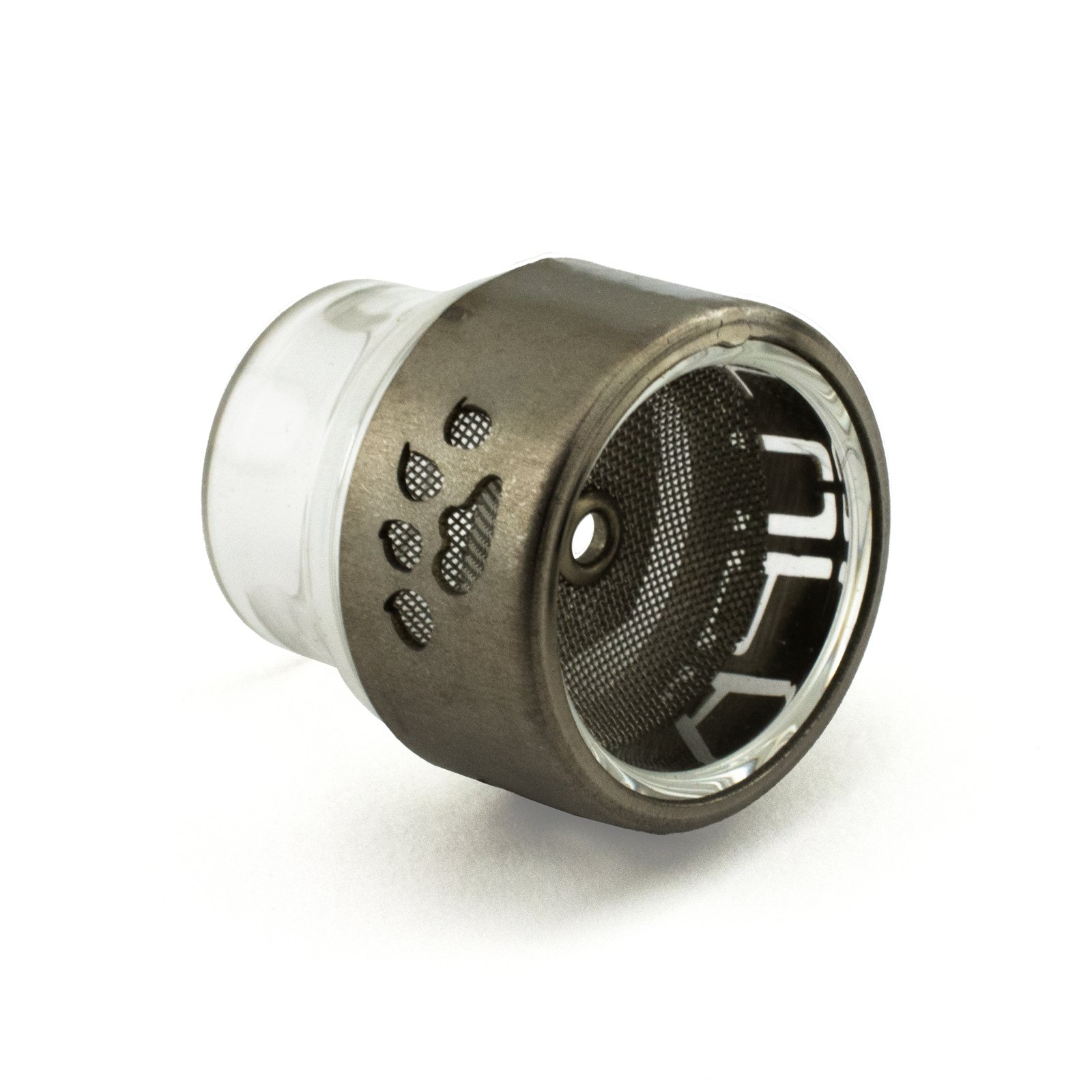

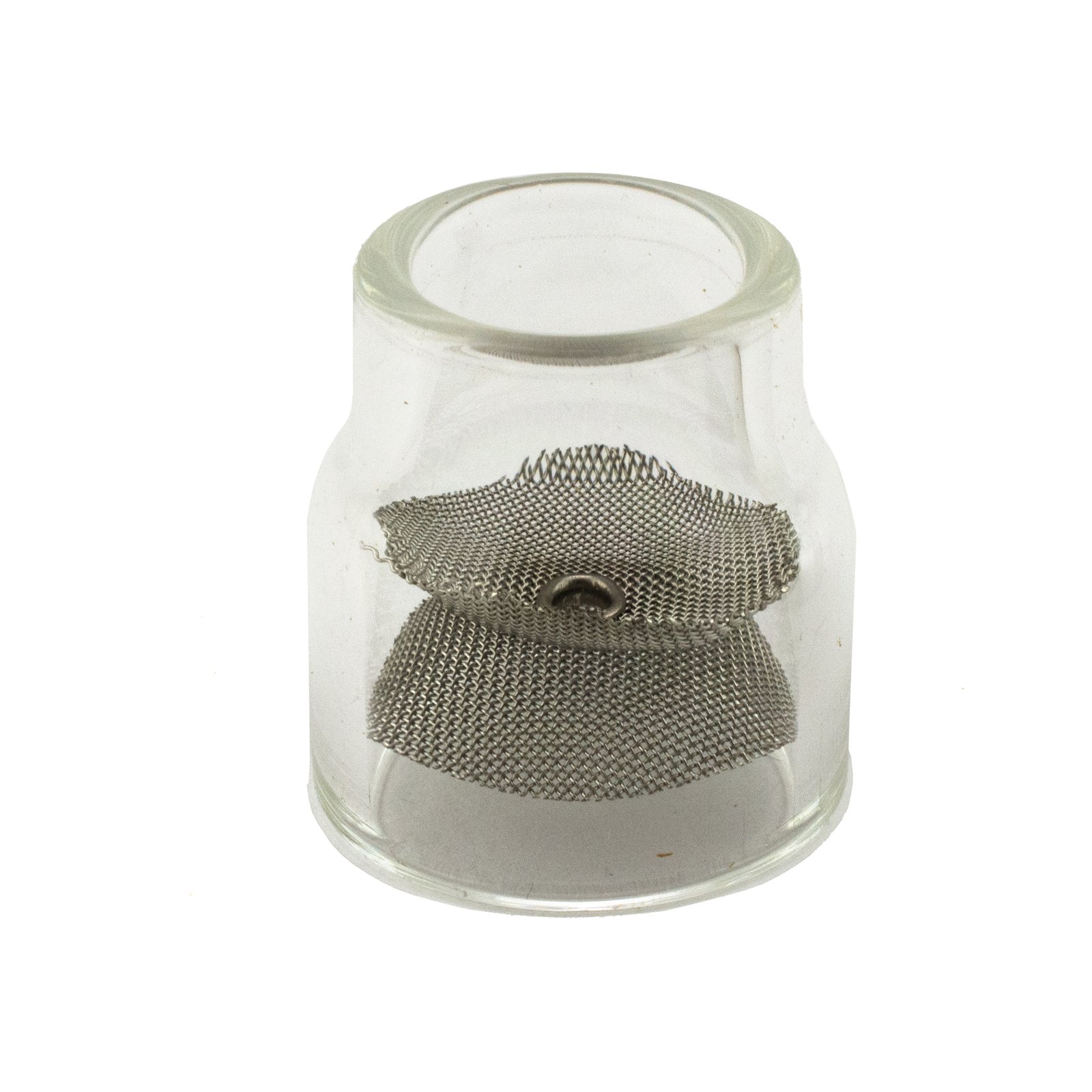

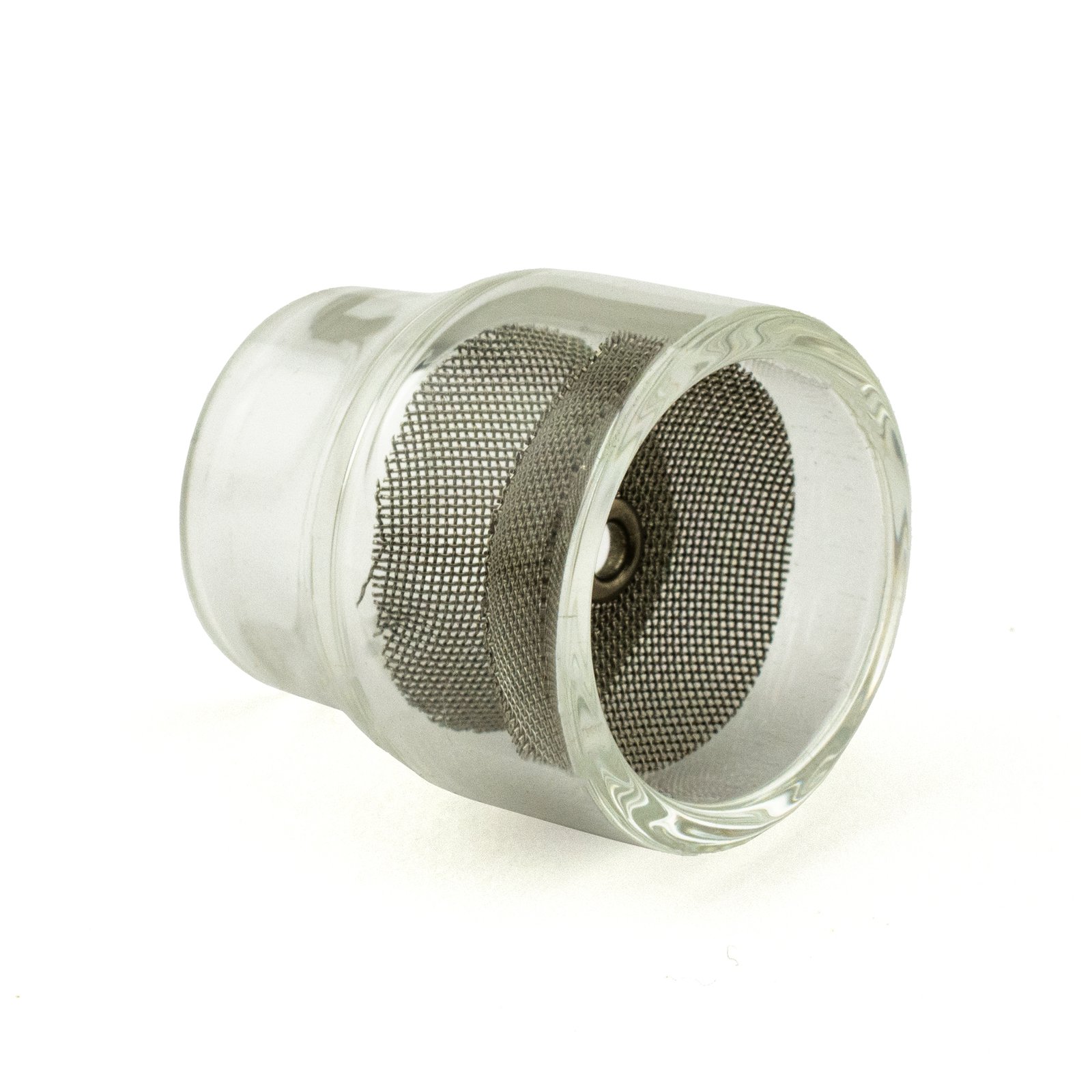

Premium Pyrex TIG cup kit for precision welding on mild steel, stainless steel, titanium & space-grade alloys. Ideal for thin/small applications like header tubes. Includes 2 Pyrex cups, 4 O-rings, titanium cover & spare diffuser. Made in the USA with thick heat-resistant glass (175A max).
Specifications
| Bore ID | 20.5mm |
| Bore OD | 25.3mm |
| Length | 27mm |
| Glass Thickness | 2.9mm |
| Max Amperage | 175A |
FURICK FU12KC Pyrex TIG Cup – 2 x Fupa #12 & Titanium Ring Kit
Upgrade your TIG welding precision with the FURICK FU12KC Pyrex TIG Cup Kit, engineered for professional welders working with critical alloys. This premium kit combines durable heat-resistant glass, titanium protection, and optimized gas coverage to deliver flawless results on thin-gauge materials. Perfect for automotive, aerospace, and custom fabrication projects¡ªdon¡¯t settle for less when welding Mild Steel, Stainless Steel, Titanium, or Inconel.
Core Features at a Glance
| Description | Core Advantage |
|---|---|
| 2x Pyrex Cups (175A max rating) | Thick 2.9mm glass resists thermal shock during high-amperage welding |
| Titanium Cup Cover | Shields fragile Pyrex from impacts and spatter damage |
| Dual Mesh Gas Filter | Ensures uniform argon coverage for clean, porosity-free welds |
| 20.5mm Bore ID | Precise gas flow control for intricate header/chassis tubing work |
| USA-Made Construction | Uncompromising quality standards for professional reliability |
| 4x Replacement O-Rings | Extended service life with essential spare parts included |
| Spare Diffuser | Minimizes downtime during critical projects |
| 17/26 Series Torch Compatibility | Works with 11617GL (1.6mm) & 33217GL (2.4mm) gas lenses |
| 9/20 Series Torch Compatibility | Fits standard gas lenses (45V43, 45V44, 45V45) |
| 27mm Length | Optimal reach for tight spaces in chassis fabrication |
Technical Specifications
- Max Amperage: 175A (heat-resistant Pyrex)
- Bore Dimensions: 20.5mm ID / 25.3mm OD
- Glass Thickness: 2.9mm
- Gas Lens Mesh Bore: 2.6mm
- Kit Includes: 2 cups, 4 O-rings, 1 titanium cover, 1 diffuser
Applications & Performance
Ideal for thin-gauge materials like header tubes, chassis tubing, and precision parts. The dual mesh filter eliminates gas turbulence, while the titanium cover extends cup life by 300% compared to standard glass cups. Welders report cleaner bead profiles and reduced post-weld cleanup time on Stainless Steel and Titanium applications.
Why Choose FURICK FU12KC?
Unlike generic Pyrex cups, FURICK¡¯s kit offers military-grade durability with USA manufacturing. The included spare parts and compatibility with major torch series reduce operational costs. Professionals trust FURICK for consistent results in aerospace and motorsports fabrication.
FAQ
Q: Will this fit my Lincoln 26 series torch?
A: Yes, use gas lens 11617GL (1.6mm tungsten) or 33217GL (2.4mm tungsten).
Q: Can I use this for aluminum welding?
A: Optimal for steel alloys; for aluminum, we recommend FURICK¡¯s larger bore cups.
Q: How often should I replace the O-rings?
A: Every 50-100 hours of use, or if gas leaks are detected.
Request a Quote
Ready to elevate your welding precision? Contact our team for bulk pricing, technical support, or custom torch compatibility guidance. Send us a message today to secure your FURICK FU12KC Kit.
Packaging & Transportation
