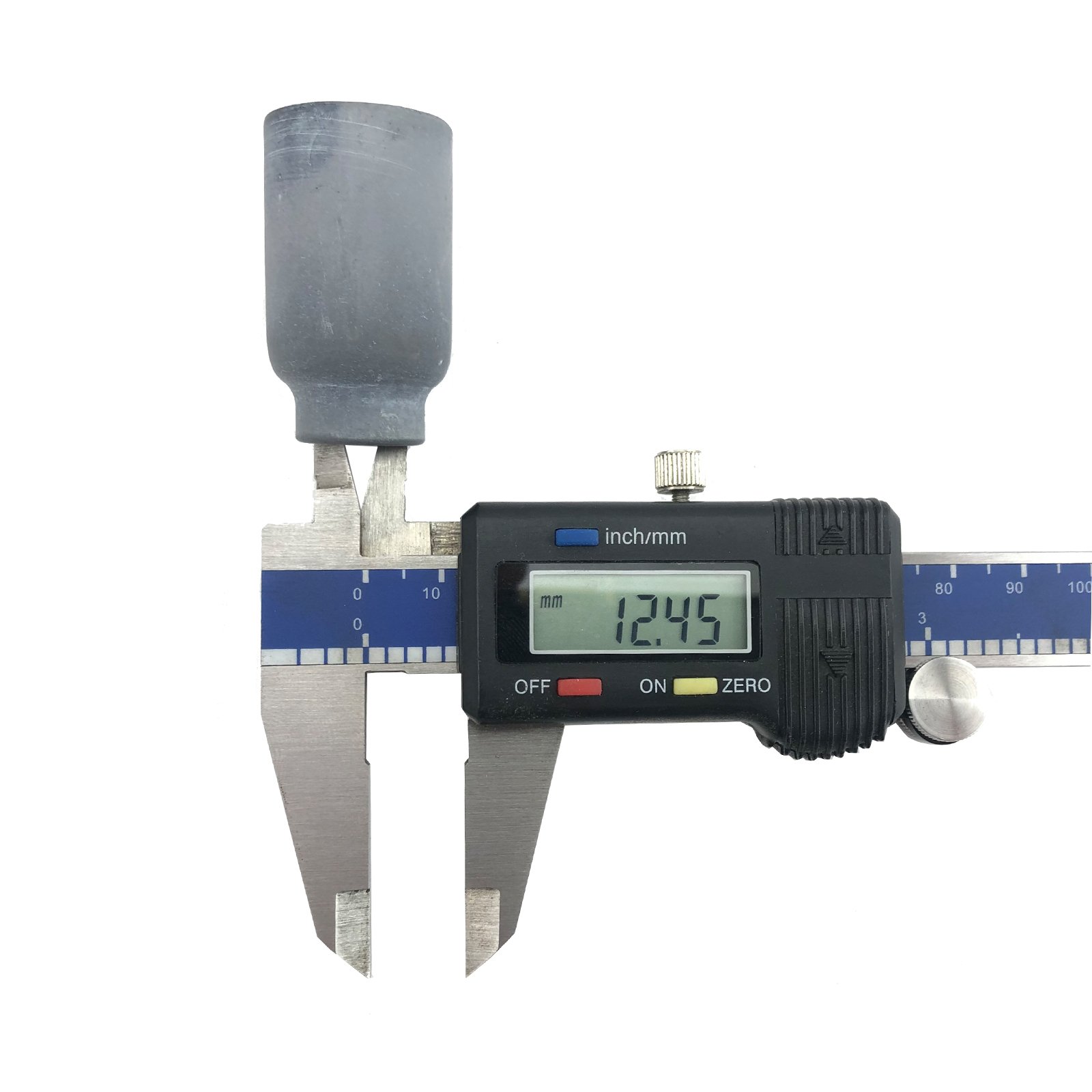

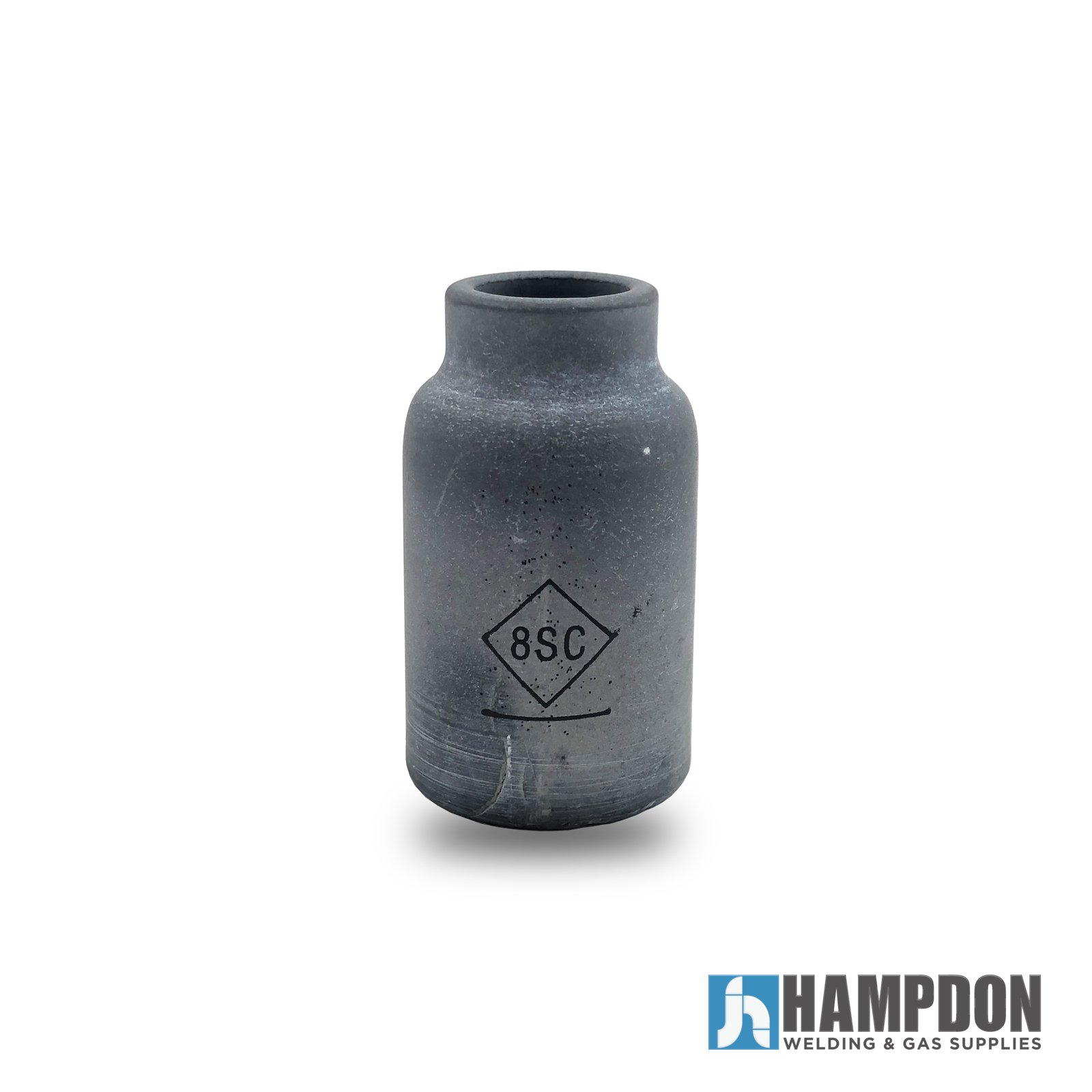

CK 54N14 #8 Super Cup Gas Lens for WP-17/18/26
$35.00
Product Introduction
CK #8 Super Cup Gas Lens (54N14) is designed for 17/18/26 style torches with Gas Lens collet bodies 45V25, 45V26, 45V27. It withstands high-amperage and high-reflective heat, minimizing cracking and thermal shock issues. Lasts longer than alumina cups, reducing downtime and replacement costs with 40% lower thermal conductivity.
Specifications
| Cup Size | #8 |

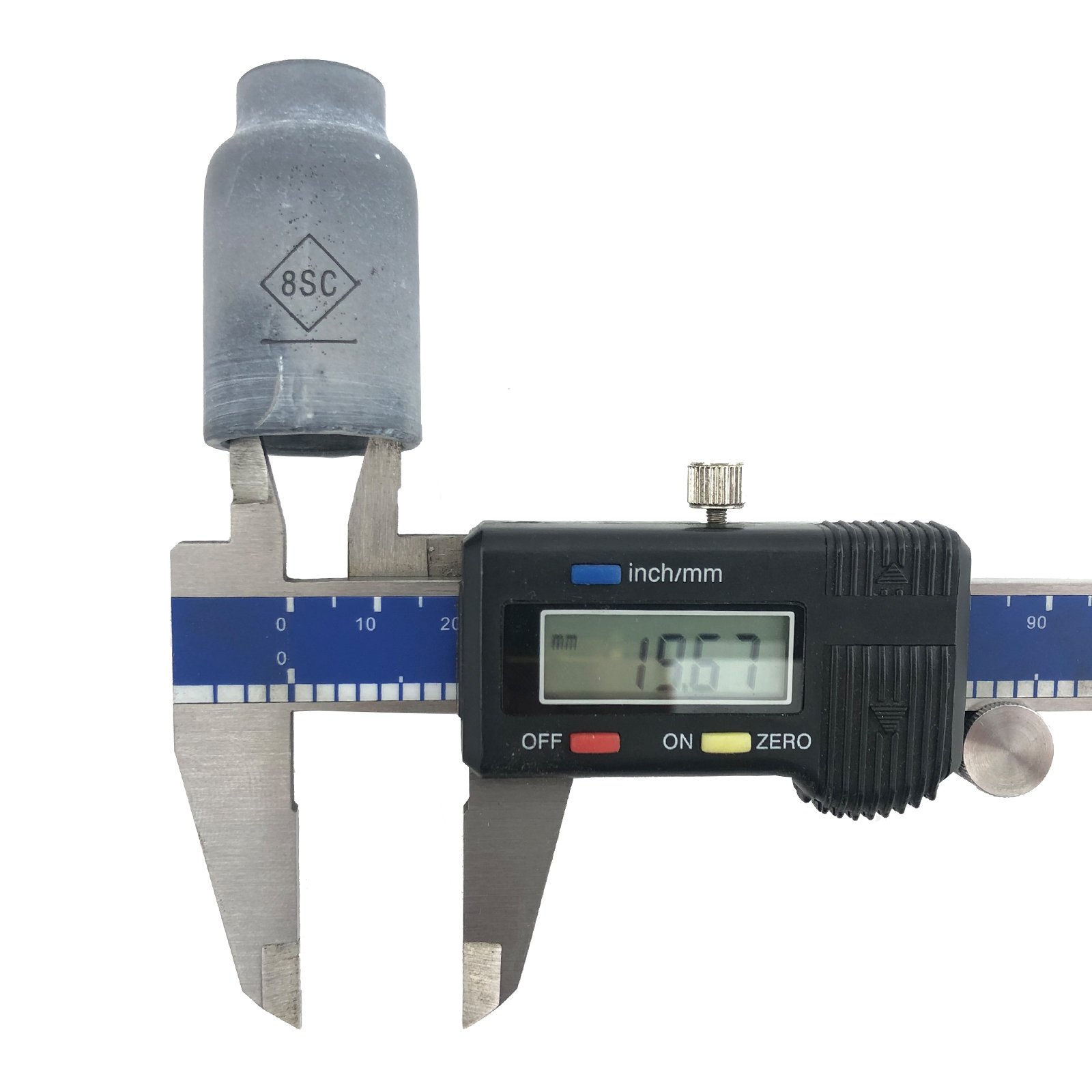

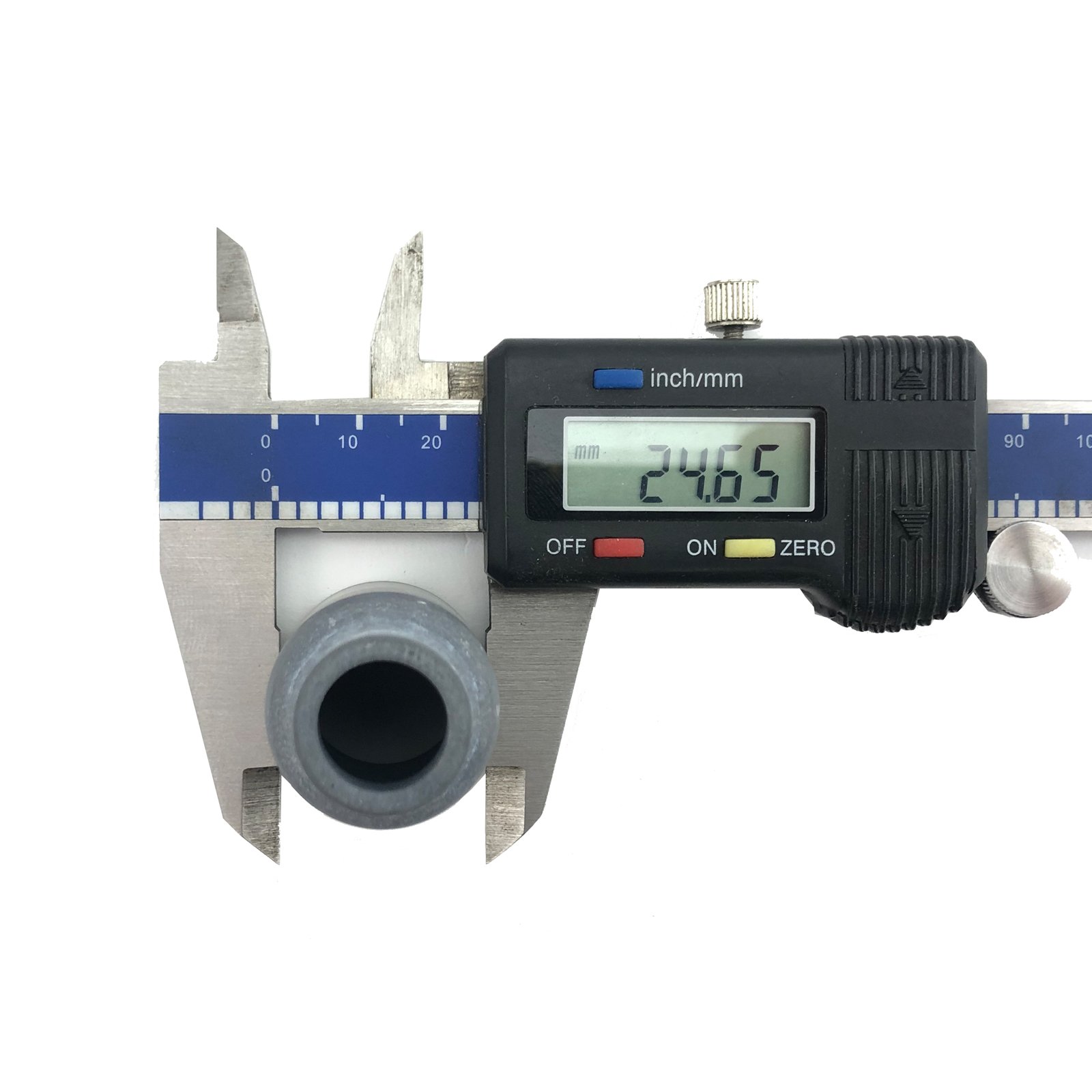

| Bore Diameter | 13mm |
| Model | 3SG8 / 54N14SC |
| Compatibility | 17 / 18 / 26 Torches |
| Package | 1 Each |
CK #8 Super Cup Gas Lens – 54N14 for WP-17 | 18 | 26 Torches
| Description | Premium gas lens cup designed for high-amperage welding applications, compatible with WP-17, WP-18, and WP-26 torches. |
| Core Benefit | Withstands extreme heat (high-amperage/high-reflective) with minimal thermal shock cracking. |
| Model | CK Super Cup 3SG8 (54N14SC Gas Lens) |
| Cup Size | #8 |
| Bore Diameter | 13mm |
| Compatibility | 17/18/26 style torches (requires Gas Lens collet body: 45V25, 45V26, 45V27) |
| Thermal Conductivity | Reduced by ~40% vs. standard alumina cups |
| Durability | Longer lifespan in high-heat applications vs. alumina alternatives |
| Cost Savings | Minimizes downtime and replacement part expenses |
| Packaging | 1 Each |
Why Choose CK Super Cup Gas Lens?
Tired of frequent cup replacements in high-amperage welding? The CK #8 Super Cup solves thermal shock issues with advanced materials, cutting downtime by extending cup life. Its 40% lower thermal conductivity ensures stable performance in demanding environments like stainless steel or aluminum welding.
Applications
Ideal for professional TIG welding in industries: automotive, aerospace, heavy machinery, and fabrication. Perfect for high-heat processes requiring precision and durability.
Performance Highlights
– Outlasts standard alumina cups in high-amperage tasks
– Superior heat resistance minimizes cracking
– Optimized gas flow for cleaner welds
– Compatible with leading torch models (WP-17/18/26)
Quality Assurance
Engineered by CK, a trusted name in welding accessories. Each cup undergoes strict quality testing to meet industrial standards, ensuring reliability in critical applications.
FAQ
Q: Will this fit my WP-26 torch?
A: Yes, when used with compatible Gas Lens collet bodies (45V25/26/27).
Q: How does it compare to alumina cups?
A: Offers 40% lower thermal conductivity and longer lifespan in high-heat use.
Q: What bore size is this cup?
A: 13mm bore diameter for precise arc control.
Ready to Upgrade Your Welding Setup?
Reduce costs and downtime with the CK #8 Super Cup. Contact us now for bulk pricing, technical support, or sample requests.
