CBR50 Cut 40 Plasma Circle Cutting Guide Kit for LT50 CB50
$340.00
Product Introduction

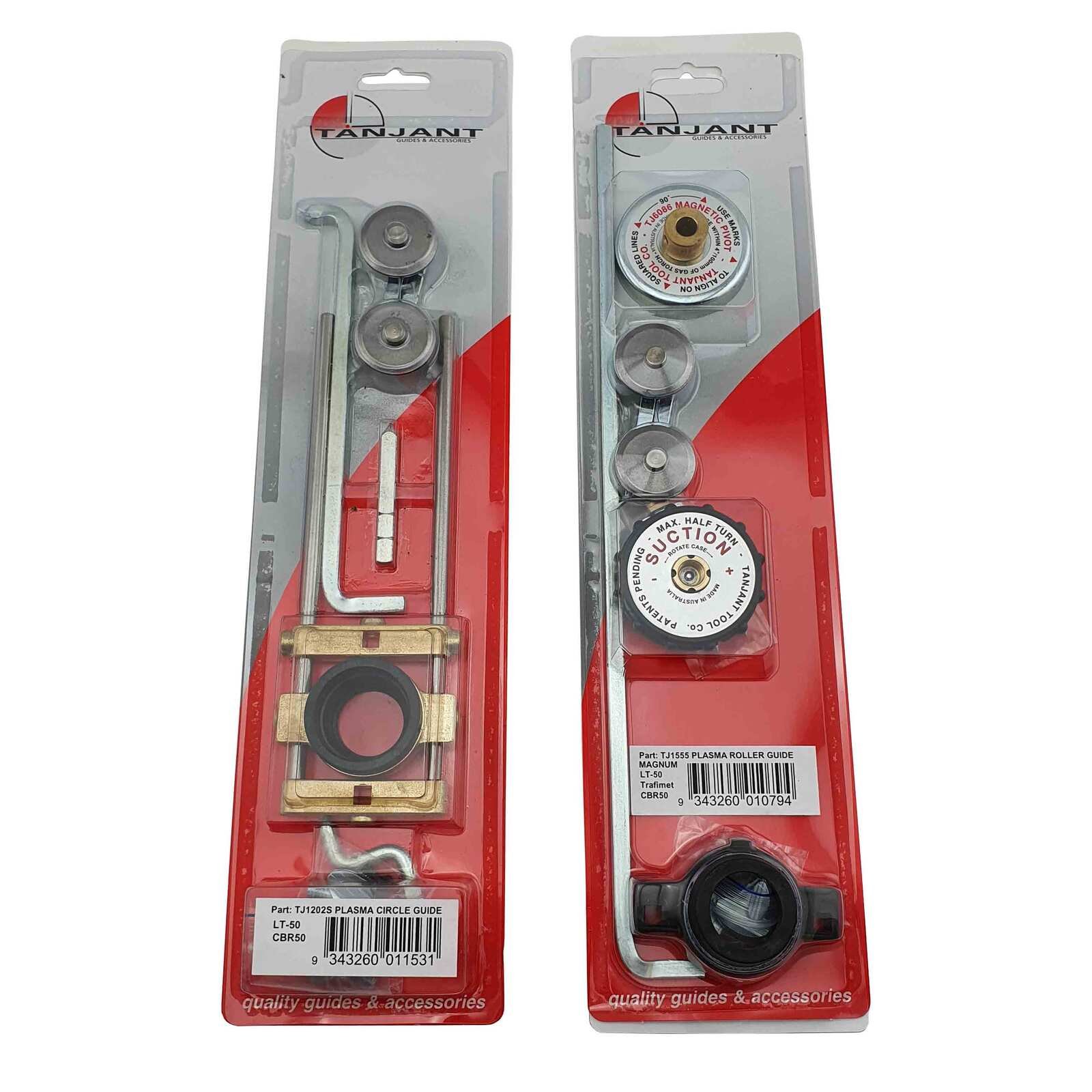

Complete Plasma Circle Cutting Guide Kit for workshop professionals, enabling easy and controlled cutting of circles and straight lines with optimum tip height and stability.
Product Parameters
| Suitable Torches | Magnum LT-50, Trafimet CBR50, S45, CB50 |
| Circle Diameter Range | 45mm (1-3/4¡å) to 1050mm (41¡å) |
| Pivot Types | Magnet Pivot, Suction Pivot |
| Key Features | Roller Guide, Rotating Bush, CNC Machined Parts |
CBR50 Cut 40 Plasma Circle Cutting Guide Kit to Suit LT50 CB50
Unlock precision cutting for your workshop with our professional-grade Plasma Circle Cutting Guide Kit. Designed for seamless circle and straight line cutting, this kit delivers unmatched control and accuracy, making it the ideal tool for metal fabrication professionals and enthusiasts alike.
Core Features & Specifications
| Description | Complete plasma cutting guide kit for circle and straight line cutting |
| Part Number | CP2002S |
| Torch Compatibility | Magnum LT-50, Trafimet CBR50, S45, CB50 torches |
| Cutter Compatibility | Steel vision SVTP40C plasma cutter |
| Circle Cutting Range | 45mm (1-3/4¡å) to 1050mm (41¡å) diameter |
| Tip Height Control | Optimum tip height maintained at all times |

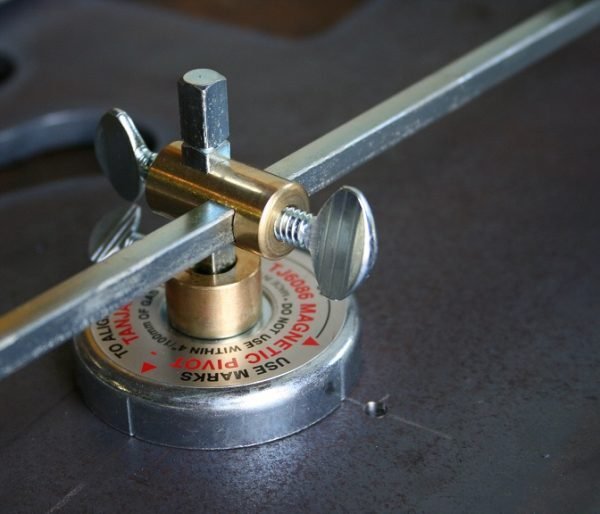

| Pivot Options | Magnet pivot (ferrous metals) + Suction pivot (non-ferrous metals) |
| Construction | CNC machined parts, brass forgings, stainless axles/rails |

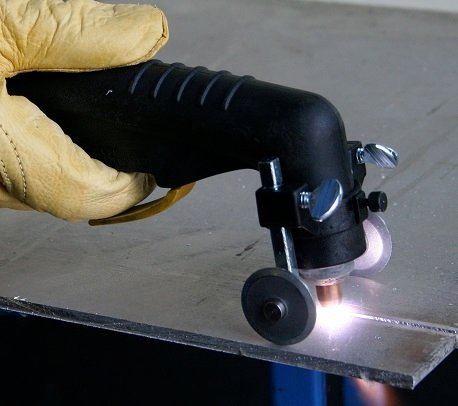

| Roller Guide | Industry-leading design with tight wheel tolerance |

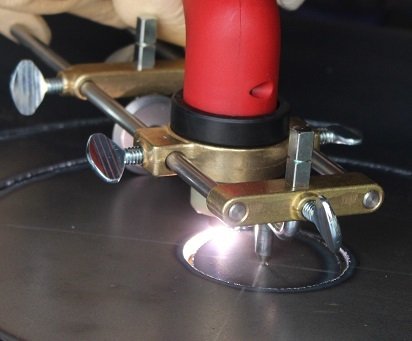

| Rotating Bush | Unique design for single-position circle cutting |
Key Performance Benefits
Achieve professional results with minimal effort. The kit¡¯s precision-engineered roller guide ensures smooth movement with minimal sideways drift, while the dual pivot system provides stability on both ferrous and non-ferrous metals. The rotating bush allows 360¡ã circle cutting from a fixed position, reducing setup time and improving workflow efficiency.
Applications
Perfect for metal fabrication shops, automotive repair, industrial manufacturing, and DIY projects. Ideal for cutting precise circles in steel, aluminum, and other metals for tanks, flanges, artistic designs, and structural components.
Quality Assurance
Crafted with CNC-machined components, brass forgings, and stainless steel parts, this guide kit is built to withstand heavy workshop use. Each unit undergoes rigorous testing to ensure consistent performance and durability.
Why Choose Our Kit?
Unlike generic guides, our kit offers superior stability with tight wheel tolerances and minimal lateral movement. The dual pivot system and rotating bush design provide versatility unmatched by competitors, while premium materials ensure long-lasting reliability.
FAQ
Q: Will this kit fit my plasma torch?
A: Compatible with Magnum LT-50, Trafimet CBR50/S45, CB50 torches, and Steel vision SVTP40C cutters.
Q: Can I cut non-ferrous metals?

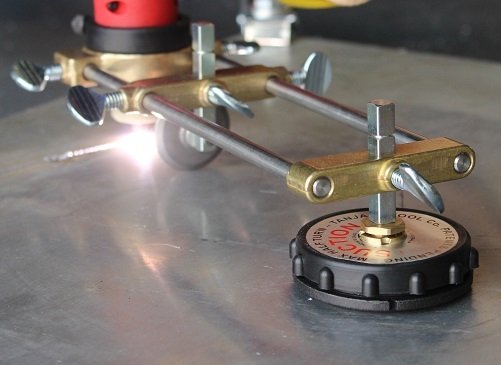

A: Yes, the suction pivot is specifically designed for non-ferrous materials like aluminum and copper.
Q: What is the maximum circle diameter?
A: Cuts circles up to 1050mm (41″) in diameter.
Ready to elevate your cutting precision? Contact us today for bulk pricing, technical support, or customization options. Our team of experts is here to help you find the perfect solution for your workshop needs.

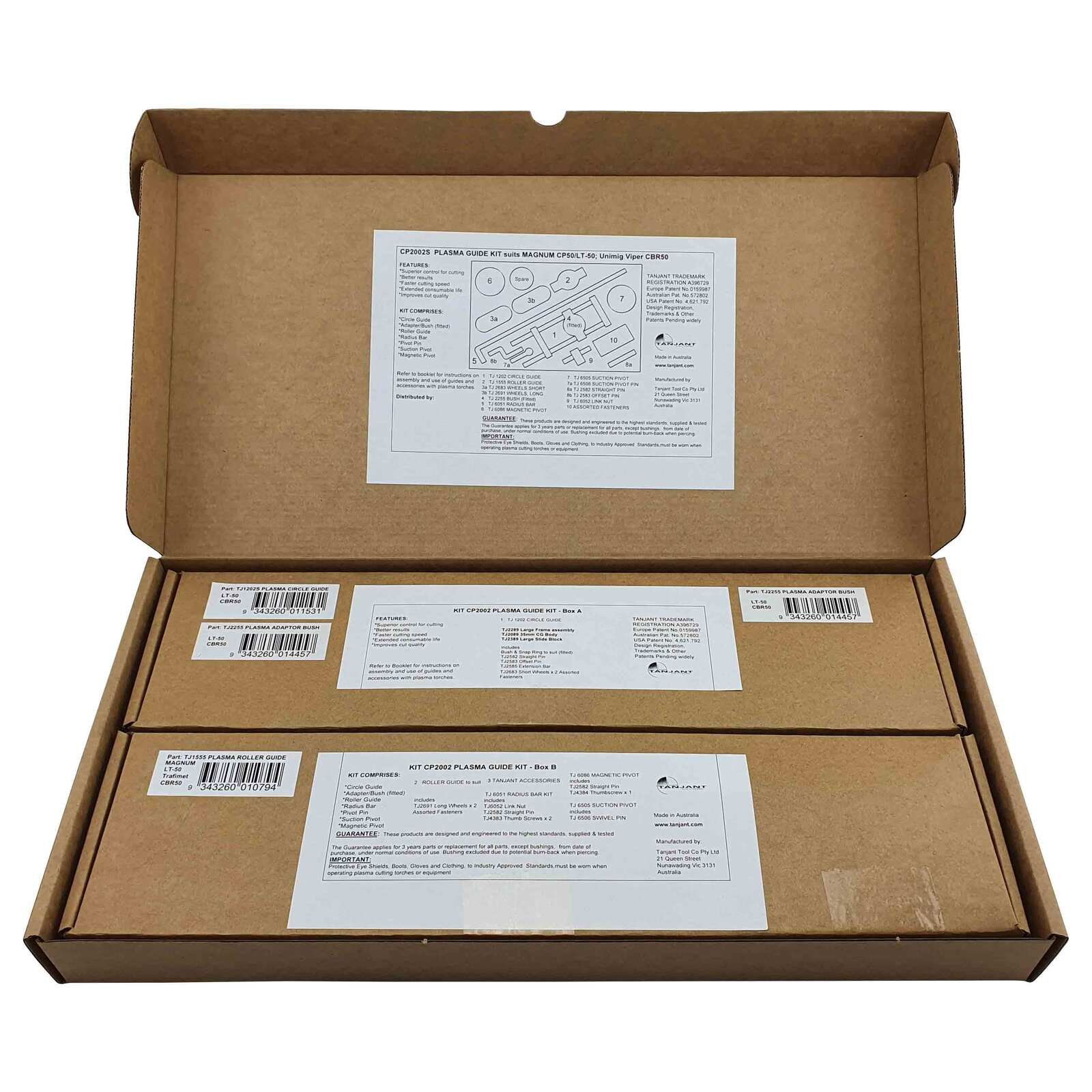

Packaging & Transportation
