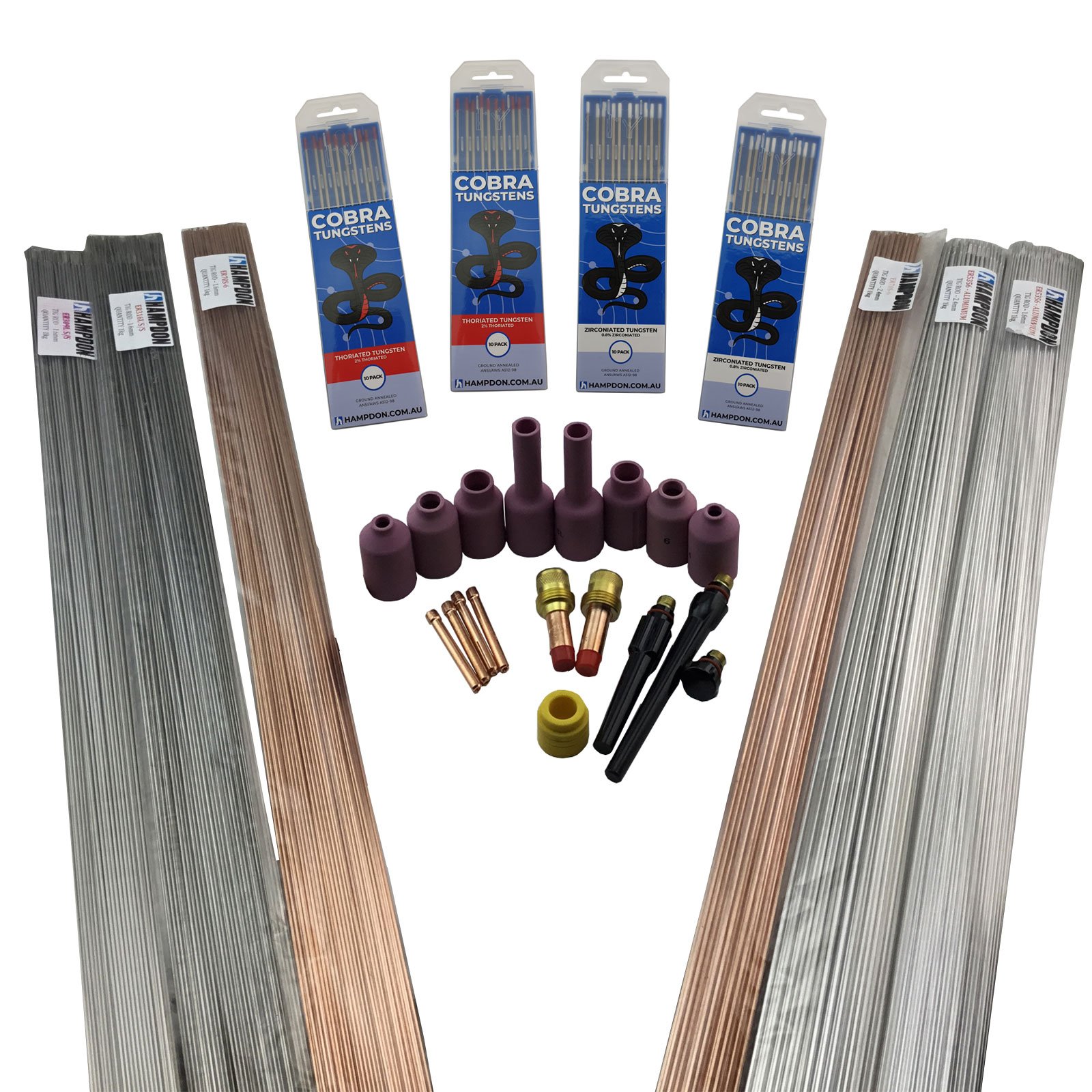

AC/DC TIG Welding Starter Pack – High-Quality ACDC TIG Kit
$289.00
Product Introduction
AC/DC TIG Welding Starter Pack includes all essential accessories to set up your AC/DC TIG machine, valued at $328.34. Perfect for both beginners and professionals with a comprehensive range of electrodes, filler wires, and TIG consumables.
Key Specifications
| Tungsten Electrodes | 1.6mm & 2.4mm Zirconiated (10 each); 1.6mm & 2.4mm 2% Thoriated (10 each) |
| Filler Wires | ER70S-6 Mild Steel (1.6mm, 2.4mm – 1kg each); ER5356 Aluminium (1.6mm, 2.4mm – 1kg each); ER316L & ER309L Stainless Steel (1.6mm – 1kg each) |
| TIG Consumables | 12-piece Gas Lens Saver Collet Body (1.6mm); 2.4mm Gas Lens Collet Body; 2.4mm Collets (2 each); Long/Medium/Short Back Caps |
AC/DC TIG Welding Starter Pack: All-In-One Solution for Professional Welding
Core Accessories (10 Key Components)
| Accessory | Description & Key Benefits |
|---|---|

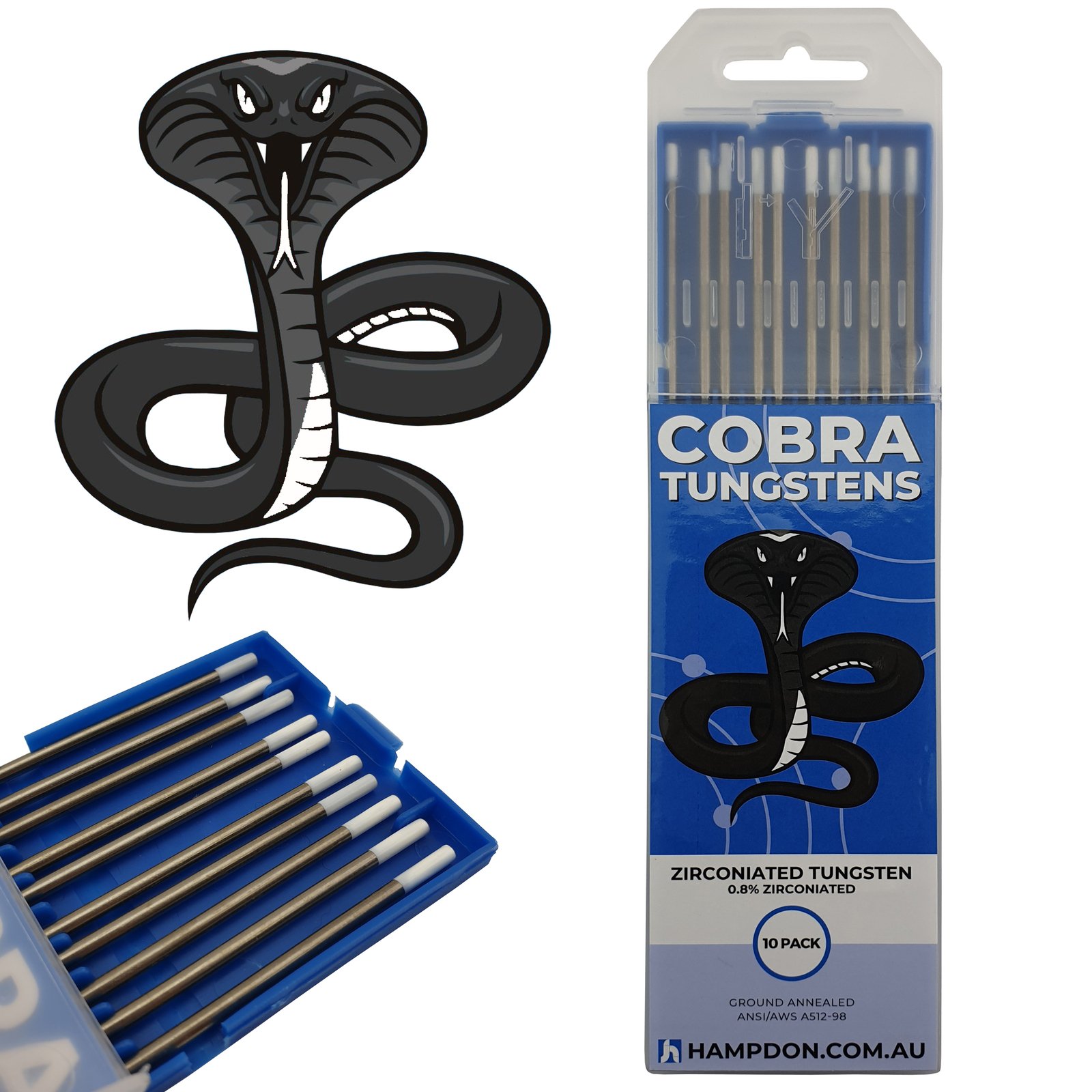

| 1.6mm Zirconiated Tungsten (10pcs) | Ideal for AC welding; high heat resistance for aluminum/magnesium alloys |
| 2.4mm Zirconiated Tungsten (10pcs) | Enhanced arc stability for thick aluminum joints |

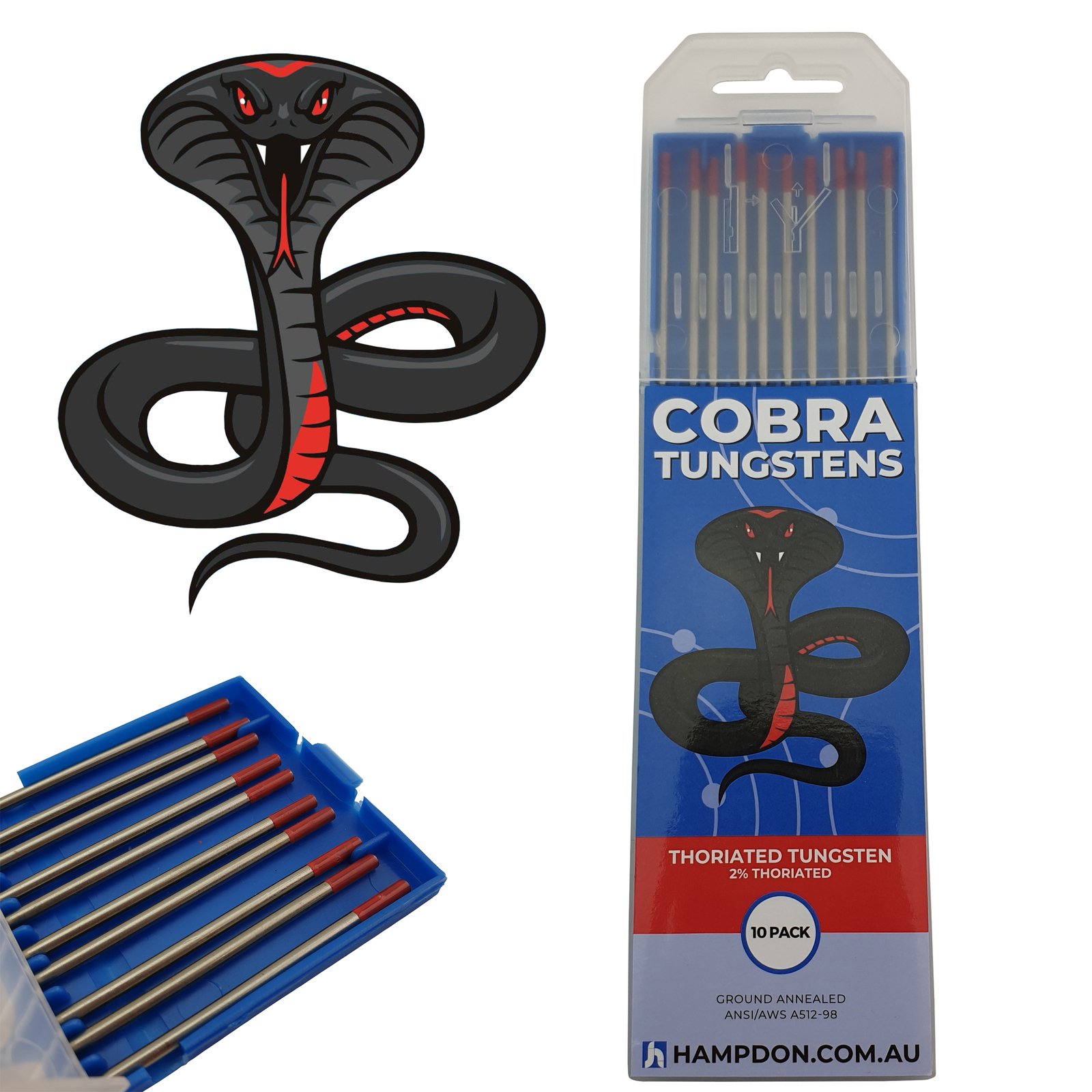

| 1.6mm 2% Thoriated Tungsten (10pcs) | Sharp arc start, perfect for precision DC welding on steel |
| 2.4mm 2% Thoriated Tungsten (10pcs) | High current capacity for heavy-duty steel fabrication |
| ER70S-6 Mild Steel Filler Wire (1kg, 1.6mm/2.4mm) | Low spatter, excellent bead appearance for carbon steel projects |
| ER5356 Aluminum Filler Rods (1kg, 1.6mm/2.4mm) | Strong corrosion resistance for marine/automotive aluminum welding |

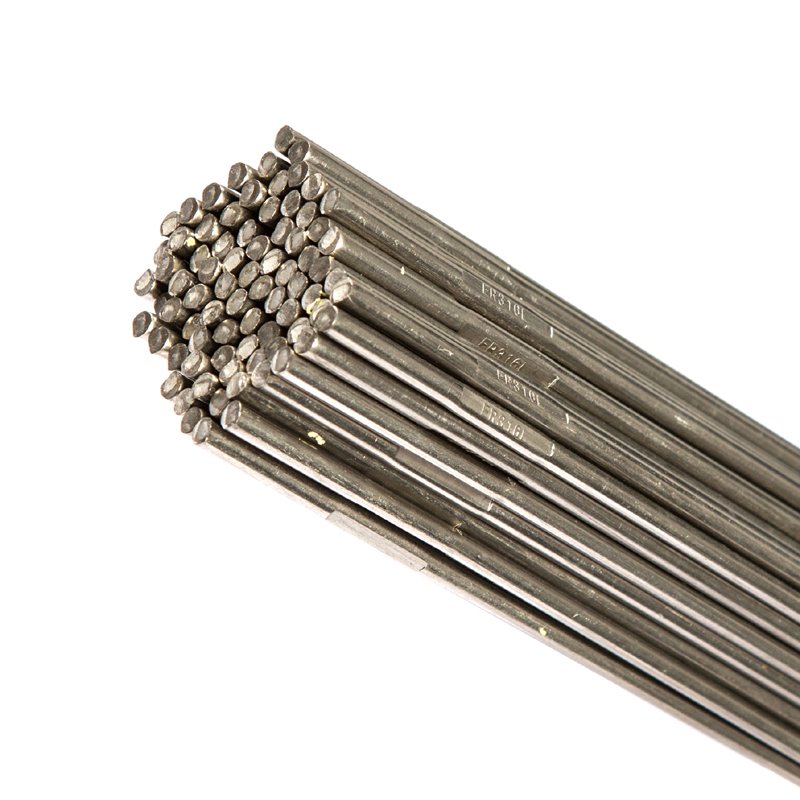

| ER316L/309L Stainless Steel Rods (1kg each, 1.6mm) | High purity for food-grade & high-temperature stainless applications |
| 12-Piece Gas Lens Saver Collet Body Kit (1.6mm) | Extends collet life; reduces gas turbulence for cleaner welds |
| 2.4mm Gas Lens Collet Body | Optimizes gas coverage for thick material welding |

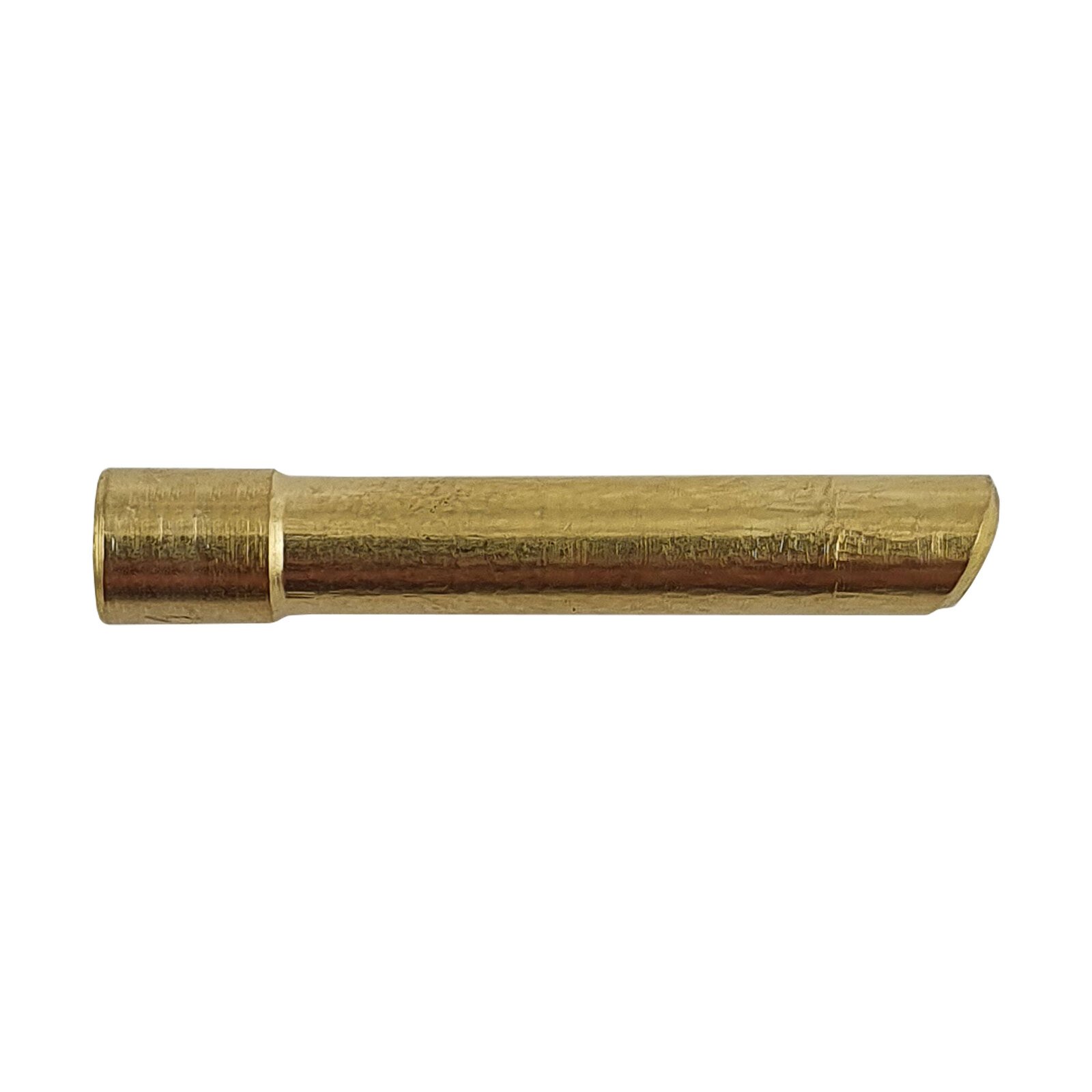

| Back Caps (Long/Medium/Short) & 2.4mm Collets (2pcs) | Complete torch configuration for versatile joint access |
Product Features
Professional-grade starter pack with 10 essential TIG welding accessories. Valued at $328.34, this kit eliminates the hassle of sourcing individual components, ensuring you have the right tools for steel, aluminum, and stainless steel welding.
Applications
Perfect for metal fabrication, automotive repair, aerospace components, DIY projects, and industrial maintenance. Suitable for both AC (aluminum) and DC (steel/stainless) welding processes.
Performance Advantages
- Premium tungsten electrodes for stable arc ignition and minimal wear
- High-quality filler wires with consistent chemical composition
- Gas lens system reduces porosity and improves weld bead aesthetics
- Comprehensive accessory range for immediate setup
Quality Assurance
Manufactured in ISO-certified facilities with strict quality control. All components meet AWS/ASTM standards for welding performance and safety.
Competitive Edge
Unlike generic kits, our pack includes both zirconiated and thoriated tungsten, multiple filler wire diameters, and a complete gas lens system¡ªproviding versatility for diverse welding tasks in one cost-effective bundle.
FAQ
Q: Is this kit compatible with all AC/DC TIG machines?
A: Yes, standard 1.6mm/2.4mm components fit most TIG torches (WP-17/18/26 series).
Q: Can I use ER5356 rods for marine applications?
A: Yes, ER5356 offers excellent saltwater corrosion resistance.
Ready to Elevate Your Welding? Contact Us Now!
Get professional results from day one with our all-inclusive starter pack. For bulk pricing, technical support, or customization options, send us an inquiry today.
Packaging & Transportation
Weldsuper Nozzles
Related products
2.4mm 2% Lanthanated TIG Tungsten Electrodes 10pk Blue Tip
Product Introduction
Premium 2% Lanthanated TIG Tungsten Electrodes, ideal for welding carbon steel, stainless steel, nickel alloys, titanium and aluminium. Offers excellent arc starts, long life, and stability, suitable for critical applications like aviation. Replaces thoriated electrodes, works on AC/DC.
Specifications
| Quantity | 10 Each |
| Composition | 2% Lanthanated |
| Dimensions | 2.4mm x 175mm |
| Quality | Trade Quality (Not recycled), Annealed |
| Standards | ANSI/AWS 5.12 -98, ISO 6848 |
2.4mm 2PK TIG Gas Lens Collet Body WP-17/18/26
Product Introduction
Enhance your TIG torch performance with this 2-pack gas lens collet body. Designed for 17/18/26 series torches, it features layered mesh screens for laminar gas flow, optimizing weld zone coverage and reducing contamination. Ideal for large diameter ceramic cups.Specifications
| Collet Size | 2.4mm |
| Compatibility | WP-17/18/26 Torches |
| Length | 50mm |
| Threads | 3/8 UNF (Lower), 1" UNF (Upper) |
| Pack | 2 PCS |
2.4mm TIG Gas Lens Collet Body STUBBY KIT WP17|18|26
Product Introduction
Premium TIG Gas Lens Stubby Collet Body Kit for WP17/18/26 torches. Ideal for hard-to-reach positions, ensuring better gas flow with high-quality mesh. Cost-effective kit saving over $95 vs individual parts.
Specifications
| Suitable Tungsten | 2.4mm |
| Torch Compatibility | WP17/18/26 (WP or SR) |
| Style | Stubby |
| Threads | 3/8 UNF Lower, 3/4 UNF Upper |
| Kit Includes | Collet Body, Collets, Insulators, Cups (#6,#7,#8,#10) |
3.2mm 2% Lanthanated TIG Tungsten Electrodes 10 Pack Blue Tip
Product Introduction
Premium 2% Lanthanated TIG Tungsten Electrodes, ideal for carbon steel, stainless steel, nickel alloys, titanium & aluminum welding. Offers excellent arc starts, low burn-off rate, and long life, suitable for critical applications like aviation. Backed by 30-day full refund warranty.
Specifications
| Type | 2% Lanthanated TIG Tungsten |
| Size | 3.2mm x 175mm |
| Quantity | 10 Pack |
| Standard | ANSI/AWS 5.12 -98, ISO 6848 |
| Quality | Trade Grade (Non-recycled), Annealed |
5/8 UNF Male Nut Tail 5mm Hose Miller Lincoln Cigweld
Product Introduction
Designed for 5mm ID hose, this 5/8 UNF male nut and tail fits Miller Maxstar, Lincoln (180C rear gas connection, models 11254-11257, 11444, 12724), Cigweld AC/DC TIG machines, and many welders. Features right-hand thread. Part No. 95136Z08.Specifications
| Thread Type | 5/8 UNF (Right-hand) |
| Hose Compatibility | 5mm ID |
| Part Number | 95136Z08 |
| Compatible Brands | Miller, Lincoln, Cigweld |
BBWSG-16 Replacement Glass – High-Quality Welding Accessory
Product Introduction
Compatible replacement glass designed specifically for BBWSG-16 model brass inset cup. Includes 1 oring required for installation. Easy to install by moistening glass inside and oring, then gently pushing onto BBWSG-16 Diffuser housing without forcing.Specifications
| Compatibility | BBWSG-16 model |
| Included Components | 1 glass cup, 1 oring |
| Design | Brass inset cup fit |
| Installation | Moisture-based, non-forced fitting |
UNIMIG T2 to WP26 TIG Torch Adaptor U42002
Product Introduction
Replace your T2 torch head with this Unimig style adaptor to use standard WP17/26 consumables. Features a flexi-head design for added versatility, easy swapping, and air-cooled performance, compatible with Arc Torchology consumables.Specifications
| Compatibility | WP17 / 26 Consumables |
| Replacement | Direct T2 TIG Torch Head |
| Design | Flex Head |
| Cooling | Air Cooled |
| Quantity | 1 Each |
WP-17/18/26 TIG Gas Lens Collet Body 3.2mm
Product Introduction
Hampdon Industrial TIG Gas Lens Collet Body, made of high-quality copper, suits 17/18/26 series TIG torches. Features additional mesh layers for durability and improved gas distribution, optimizing shield gas coverage to prevent contaminants.
Specifications
| Compatibility | 17/18/26 style torches (WP or SR) |
| Collet Size | 3.2mm |
| Length | 50mm |
| Cup Thread | 3/4" UNF |
| Part Number | P45V27 |
