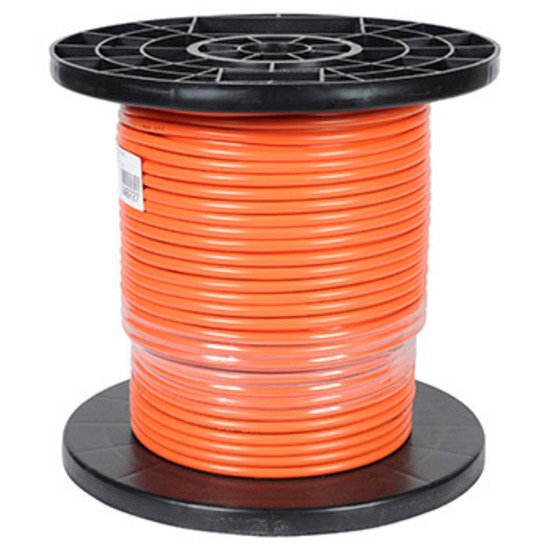

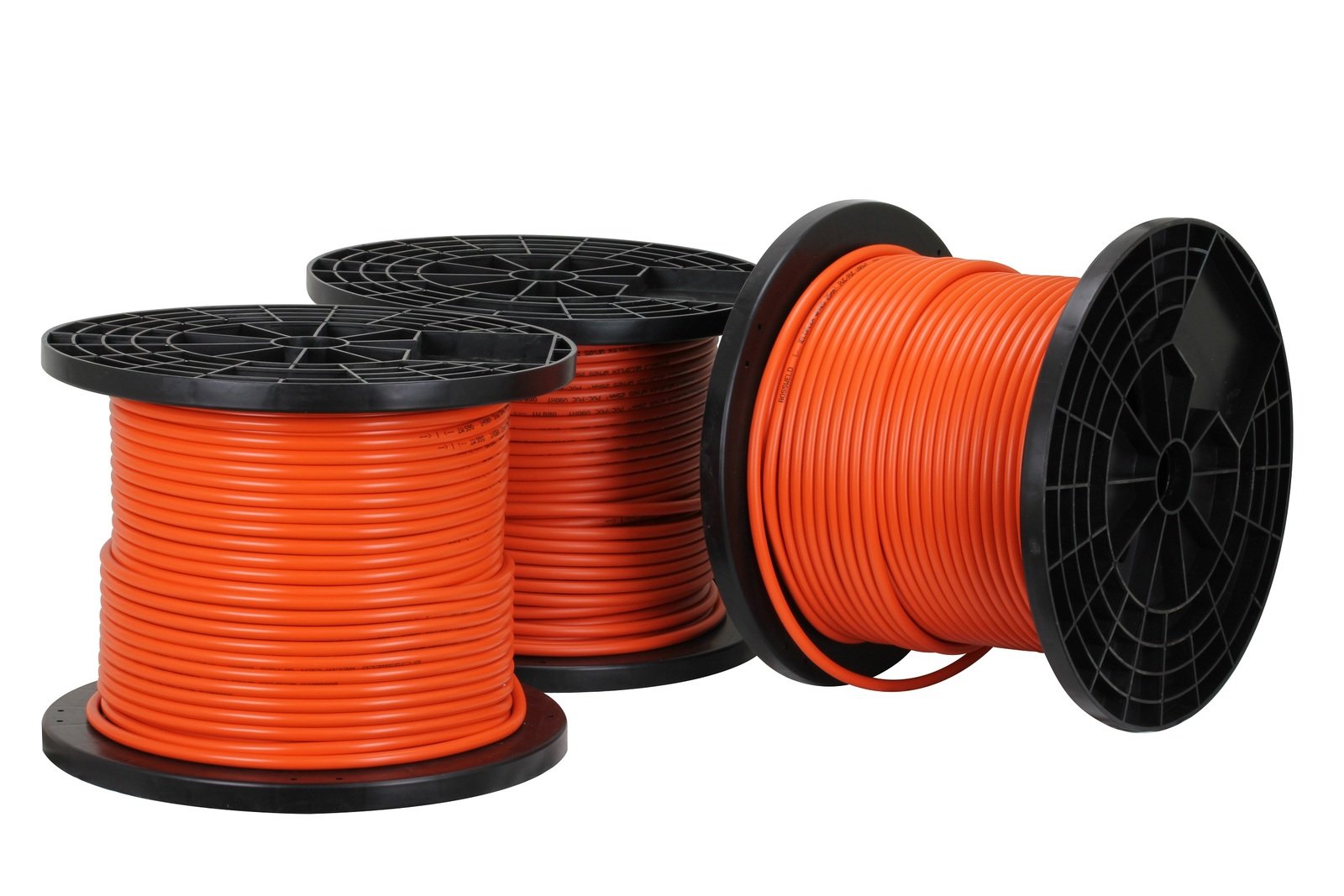

40m 16mm2 6 Gauge Welding Cable Australian Made
$349.00
Product Introduction
Australian made 40m welding cable with 16mm2 (6 Gauge) 100% oxygen free copper conductors. Double insulated NBR/NBR to V90HT, soft, flexible, compliant to AS1995:2003 for welding applications.
Specifications
| Length | 40m |

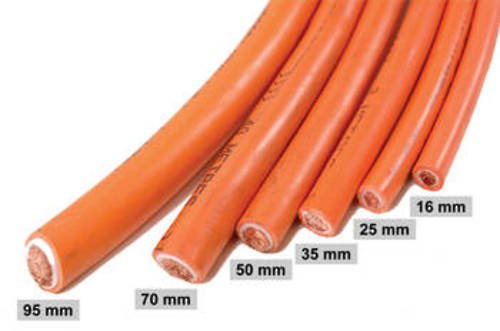

| Cross-Section | 16mm2 (6 Gauge AWG/B&S) |
| Max Current | 250 Amp (30% Duty Cycle) |
| Conductor | High Purity Copper |
| Insulation | Double Insulated (NBR/NBR, 90oC rated) |
40m Welding Cable – 16mm2 – 6 Gauge – Solar – Car Stereo AUSTRALIAN MADE
Experience unmatched performance with our premium 40m welding cable, engineered for reliability in demanding welding environments. Crafted with 100% oxygen-free copper and double insulation, this Australian-made cable delivers superior conductivity and flexibility, ensuring seamless power transmission for your welding projects.
Core Specifications
| Length | 40m (single continuous length) |
| Cross-Section | 16mm2 (6 AWG/B&S Gauge) |
| Max Current | 250 Amp (30% Duty Cycle) |
| Conductor Material | High-purity oxygen-free copper |
| Insulation | Double NBR/NBR (V90HT rated, 90oC) |
| Flexibility | Extra fine copper strands for enhanced softness |
| Compliance | AS1995:2003 standard |
| Origin | Australian Made |
| Equivalent Part | UNIMIG WC16MM / U51025 |
| Applications | Welding, solar systems, car stereo installations |
Why Choose Our Welding Cable?
Superior Conductivity: Oxygen-free copper ensures minimal power loss, maximizing welding efficiency.
Extreme Flexibility: Extra fine strands allow easy maneuvering in tight spaces, reducing operator fatigue.
Durable Insulation: Double NBR layers withstand high temperatures (90oC) and harsh chemicals, extending cable lifespan.
Australian Quality: Manufactured to strict AS1995:2003 standards, guaranteeing reliability for professional use.
Applications
Ideal for MIG, TIG, and stick welding equipment, solar power systems, and car stereo installations. Perfect for workshops, construction sites, and industrial environments where consistent power delivery is critical.
Performance & Quality
Tested under rigorous conditions, our cable maintains stable performance even at maximum ampacity. The heavy-duty design resists abrasion and oil, ensuring long-term durability in tough workplaces.
FAQ
Q: Can this cable be used for DC welding?
A: Yes, it¡¯s suitable for both AC and DC welding applications.
Q: Is the cable UV-resistant?
A: The NBR insulation provides good UV protection for outdoor use.
Q: Can I cut the cable to custom lengths?
A: The cable is supplied as a single 40m length; custom cuts available upon request.
Ready to Upgrade Your Welding Setup?
Contact us today for bulk pricing, technical details, or sample requests. Elevate your welding efficiency with Australian-made quality¡ªsend your inquiry now!
Packaging & Transportation
