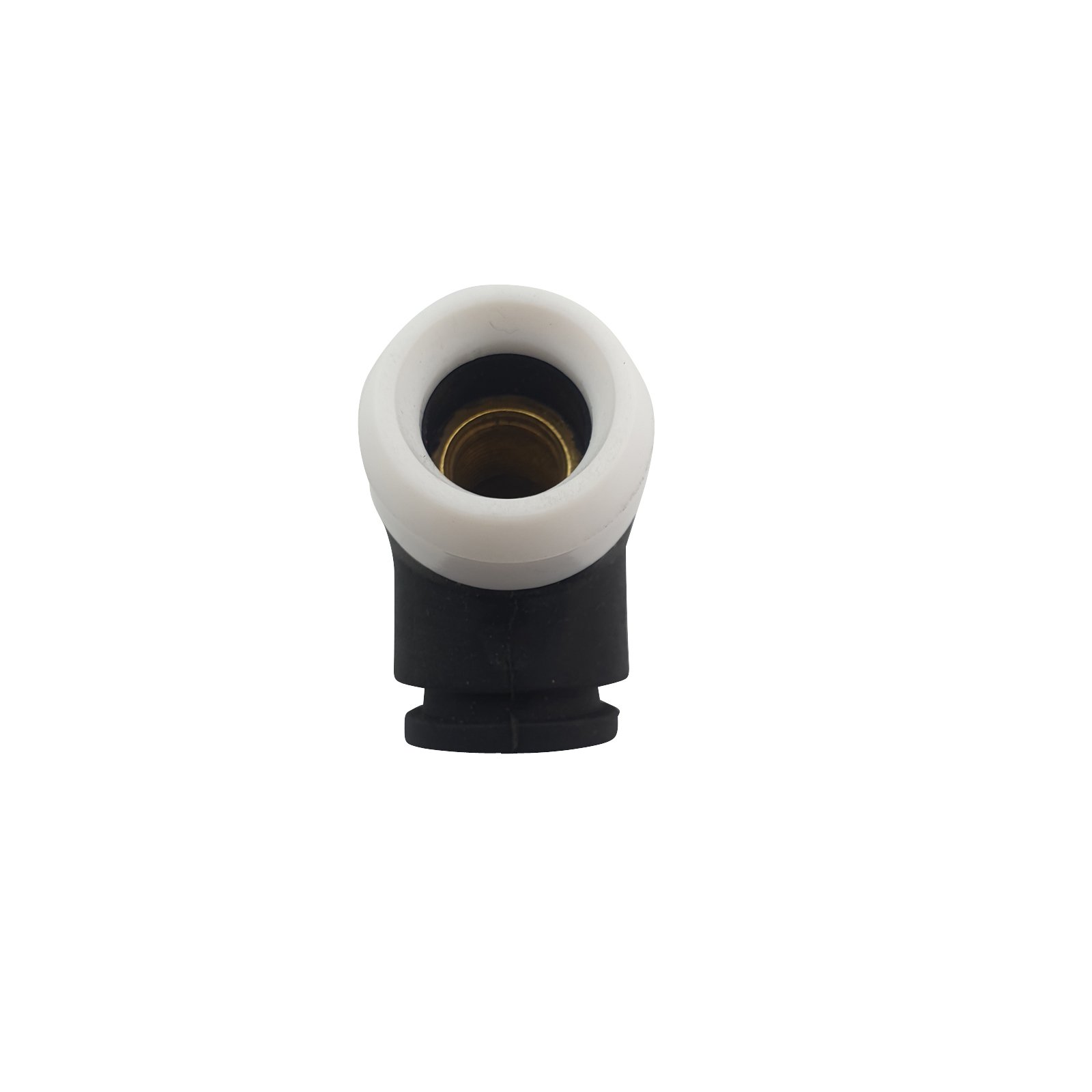

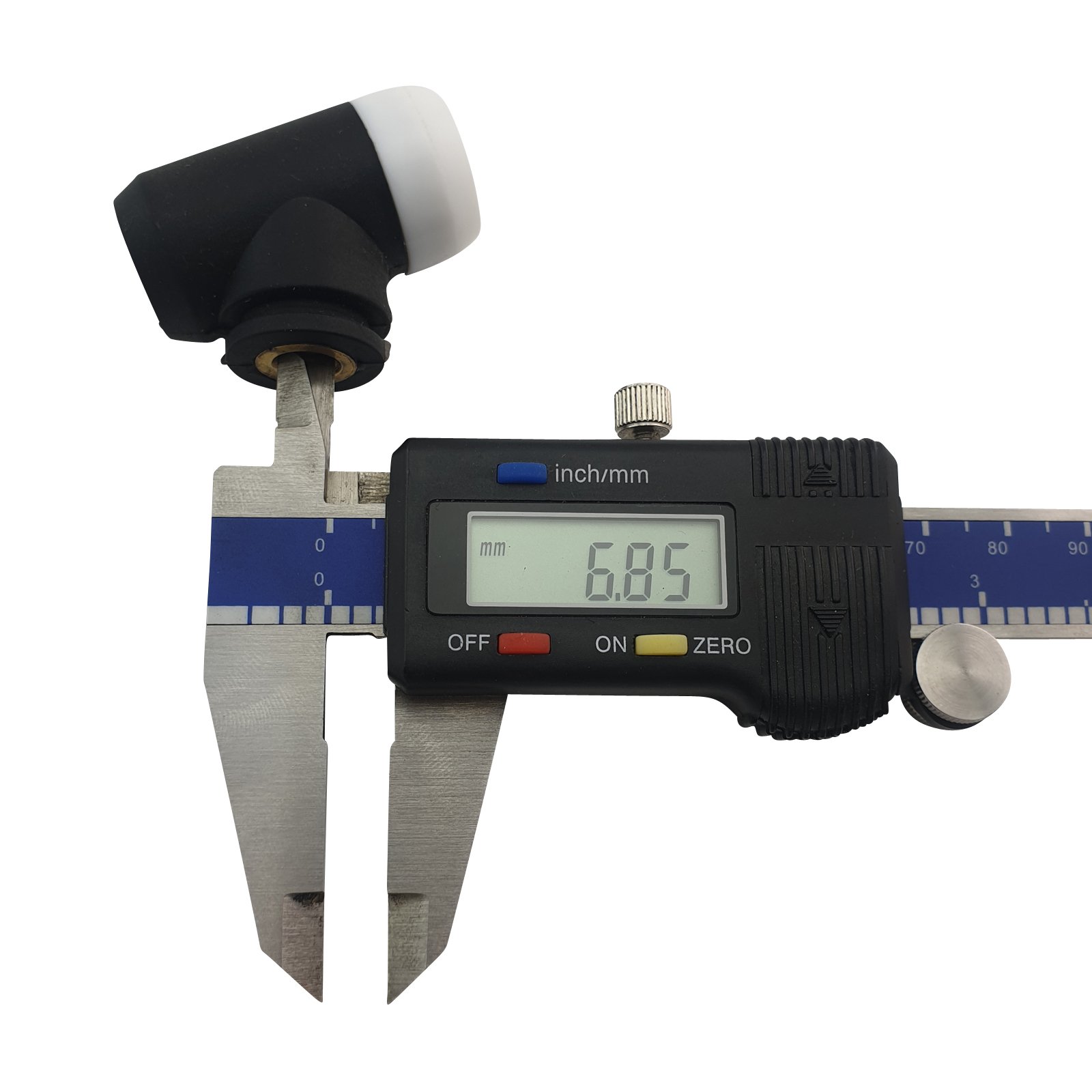

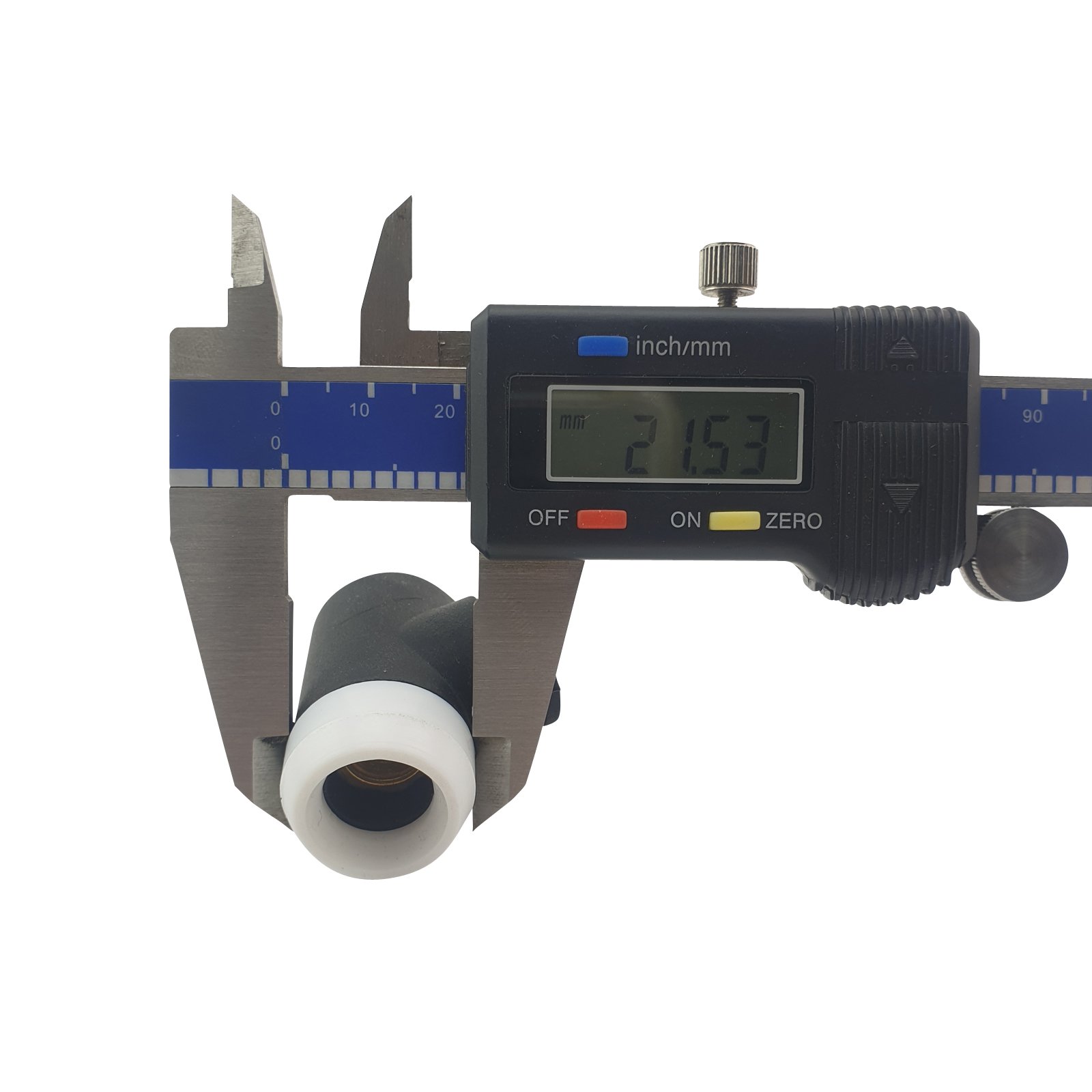

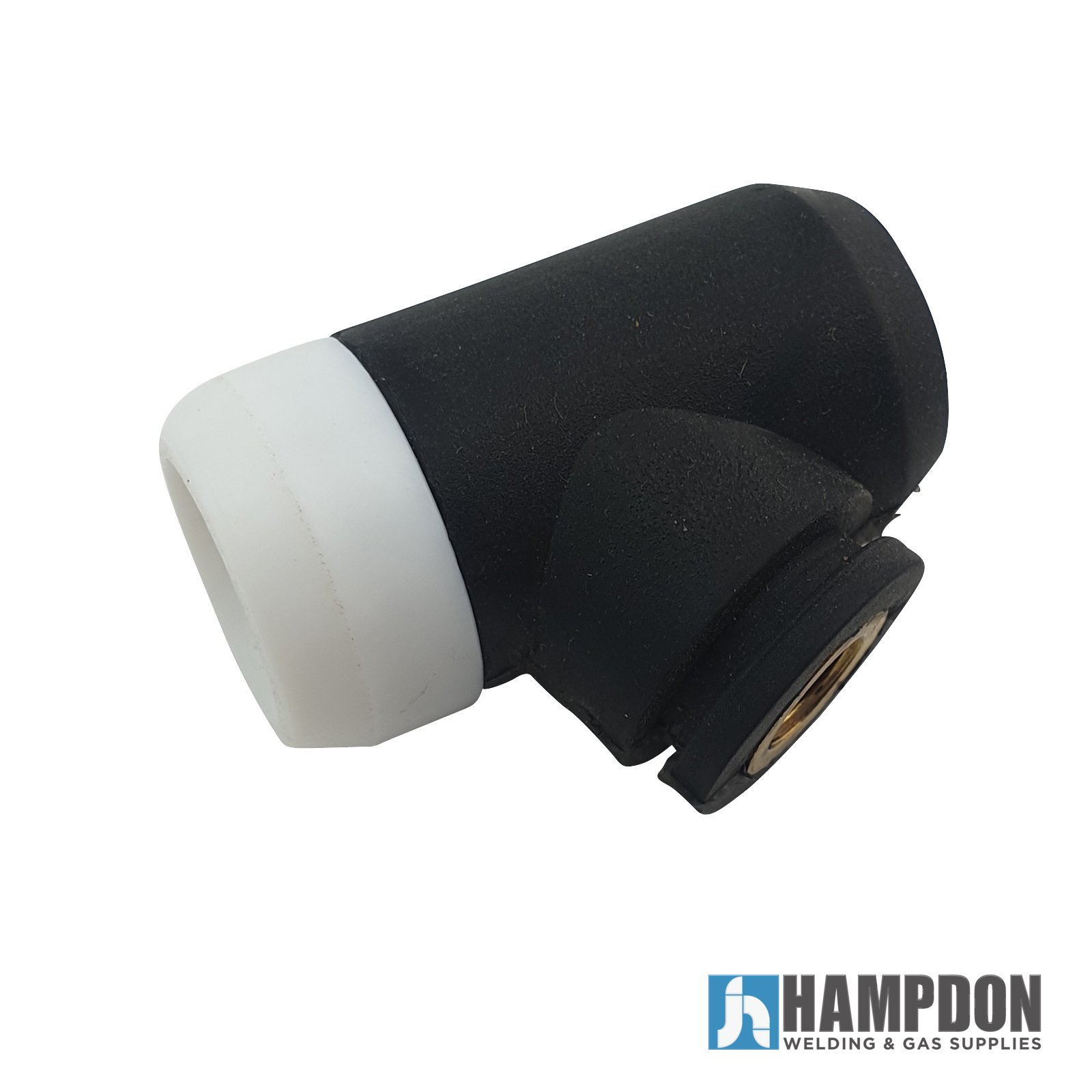

26 Series TIG Torch Head 150-200A 110¡ã 3 Piece
$32.99
Product Introduction
The Hampdon 3-Piece TIG Kit converts standard air-cooled TIG Torch to 3-Piece System. Flexible Neck Coil offers superior directional control for precise welding in difficult positions, 20x more durable than conventional necks. Simply connects to existing cable; interchangeable angled heads screw on/off.
Product Parameters
| Series | 26 Series |
| Amperage | 150 – 200 Amp |
| Torch Head Angle | 110 Degree |
| Quantity | 1 Each |
| Type | Large Torch Head |
3 Piece 26 Series TIG Large Torch Head 150-200 Amp 110 Degree – Professional Welding Precision
Product Overview
Upgrade your welding setup with the Hampdon 3-Piece TIG Torch Kit, designed to transform your standard air-cooled TIG torch into a versatile 3-piece system. Engineered for precision and durability, this kit delivers exceptional control even in the most challenging welding positions, making it ideal for professional welders seeking reliability and performance.
Core Specifications
| Description | 3-Piece TIG Torch Conversion Kit |
| Series | 26 Series Large Torch Head |
| Amperage Range | 150-200 Amp |
| Head Angle | 110 Degree |
| Compatibility | Standard Air-Cooled TIG Torch Cables |
| Flexible Neck Durability | 20x More Durable Than Conventional Necks |
| Directional Control | Precision Positioning for Out-of-Position Welds |
| Interchangeable Heads | Easy Screw-On/Off Design |
| Kit Includes | 1x Torch Head, Flexible Neck Coil, Torch Body |
| Application | Professional TIG Welding (Stainless Steel, Aluminum, etc.) |
Key Features & Benefits
Unmatched Flexibility: The unique Flexible Neck Coil offers superior directional control, allowing you to reach tight spaces and awkward angles with precision¡ªperfect for complex welds.
Extreme Durability: Rigorously tested to withstand heavy use, the flexible neck is 20 times more durable than standard TIG torch necks, ensuring long-term reliability.
Tool-Free Upgrades: Simply connect to your existing air-cooled TIG cable and swap torch heads in seconds, minimizing downtime and maximizing productivity.
Optimized Performance: 150-200 Amp capacity and 110-degree head angle deliver stable arc control, ideal for high-quality welds on various metals.
Applications
Ideal for automotive repair, industrial fabrication, pipe welding, and metal artwork. Perfect for both shop and field use where adaptability and precision are critical.
Why Choose Our TIG Torch Kit?
Unlike conventional torches, our 3-piece system combines flexibility, durability, and ease of use. The interchangeable heads and robust neck design outperform competitors, reducing replacement costs and enhancing workflow.
FAQ
Q: Will this fit my existing TIG torch cable?
A: Yes, it connects to standard air-cooled TIG torch cables.
Q: What materials can I weld with this torch?
A: Suitable for stainless steel, aluminum, copper, and other ferrous/non-ferrous metals.
Q: Is the neck replaceable?
A: Yes, the flexible neck coil is replaceable for extended tool life.
Request a Quote
Ready to elevate your welding precision? Contact us today for bulk pricing, technical support, or customization options. Our team of experts is here to help you find the perfect solution for your needs.
Packaging & Transportation
