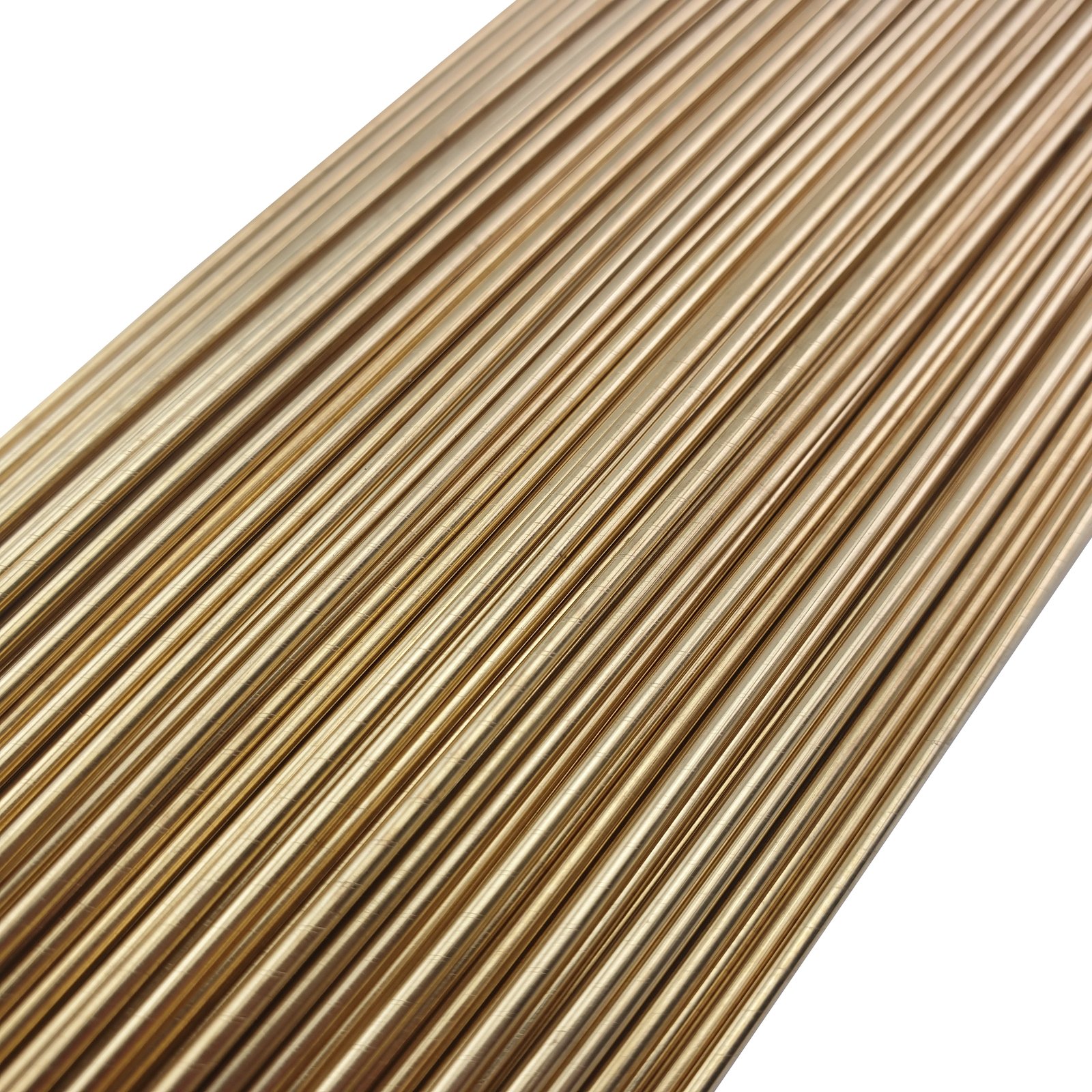

200g 2.4mm Aluminium Bronze A2 TIG Filler Brazing Wire
$39.99
Product Introduction
AWS A5.7/ERCuAl-A2 Aluminum Bronze A2 TIG filler wire, 200g, 2.4mm diameter. Ideal for aluminum bronze fabrication, joining dissimilar metals (cast iron, carbon steels, copper, etc.), and building wear/corrosion resistant surfaces with high mechanical properties.
Product Parameters
| Weight | 200g |
| Wire Diameter | 2.4mm |
| Length | Approx. 70cm |
| Melting Point | 1045¡ãC |
| Tensile Strength | 80-90 KPSI |
200g – 2.4mm Aluminium Bronze A2 TIG Filler / Brazing Wire: High-Strength Solution for Critical Welding Applications
Unlock superior welding performance with our Aluminum Bronze A2 TIG Filler Wire¡ªengineered for professionals demanding durability, corrosion resistance, and versatility. Whether joining dissimilar metals or building wear-resistant surfaces, this intermediate-strength alloy delivers exceptional mechanical properties to elevate your projects.
Core Specifications
| Description | Details |
|---|---|
| Weight | 200g |
| Wire Diameter | 2.4mm |
| Length | Approx. 70cm per rod |
| Alloy Type | Aluminum Bronze A2 |
| Melting Point | 1045¡ãC |
| Tensile Strength | 80-90 KPSI |
| Brinell Hardness | 135-145 |
| Classification | AWS A5.7 / ERCuAl-A2 |
| Strength Level | Intermediate |
| Primary Use | Welding, Brazing, Overlaying |
Key Benefits
- Intermediate Strength: Balances ductility and load-bearing capacity for structural reliability.
- Dissimilar Metal Joining: Bonds cast iron, carbon steels, copper, bronze, and copper-nickel with minimal porosity.
- Corrosion & Wear Resistance: Ideal for marine, industrial, and high-wear environments.
- High Mechanical Properties: Weld deposits exhibit superior tensile strength, yield strength, and hardness.
Applications
Perfect for aluminum bronze plate fabrication, machinery repair, valve manufacturing, and offshore equipment. Use it to overlay surfaces requiring abrasion resistance or to join metals in chemical processing plants.
Why Choose Our A2 Filler Wire?
Compliant with AWS A5.7 standards, our wire ensures consistent weld quality. Unlike generic alternatives, it offers stable arc performance and low spatter, reducing post-weld cleanup. Backed by our factory¡¯s strict quality control, every spool meets international welding standards.
FAQ
Q: What polarity is recommended for TIG welding with this wire?
A: Use DCEN (Direct Current Electrode Negative) for optimal arc stability.
Q: Can this wire be used for brazing?
A: Yes, it is suitable for brazing dissimilar metals where high strength is required.
Q: Is preheating necessary?
A: Preheating is recommended for thick sections or cold environments to prevent cracking.
Request a Quote
Ready to enhance your welding results? Contact our technical team for bulk pricing, sample requests, or application guidance. Send us an inquiry today to get started!
