Weldclass FORCE 201T 200A ACDC TIG Welder Pulse Combo
$2,349.00
Product Introduction
Top-quality TIG welding combo with Weldclass FORCE 201T AC/DC Pulse welder, CK17 torch, Furick accessories & LaYZr tungsten. Ideal for aluminum, steel, stainless steel with 7-year warranty.
Specifications
| Max Output | 200A (AC) @ 30% duty cycle |
| Functions | TIG (AC/DC), Stick/MMA, Pulse 0.2-200Hz |
| Weight | 8kg |
| Kit Includes | Welder, 4m CK17 torch, Furick Pyrex cup, foot controller, 10x 1.6mm electrodes |
| Warranty | 7-year (with online registration) |
Weldclass 200 Amp ACDC TIG Welder – FORCE 201T AC/DC Pulse – TOP SHELF COMBO – Furick – CK (WF-06172)
Especificaciones básicas
| Max Output (AC) | 200A @ 30% duty cycle |
| Weight | 8kg (compact & robust) |
| Warranty | 7-year extended (after online registration) |
| Generator Compatibility | Min 8kva, ideal 10kva+ |
| Ignition | HF or Lift Arc |
| Pulse Frequency | 0.2 ¨C 200Hz adjustable |
| AC Balance | -5 (25% penetration) to +5 (50% cleaning) |
| Torch Length | 4m super-flex CK17 TIG torch |
| Tungsten Size | 1.6mm (max 3.2mm capacity) |
| Protection Rating | IP23 (moisture & particle resistance) |
Why Choose This TOP SHELF Combo?
Designed for professional TIG welders demanding precision, this USA-manufactured kit combines Weldclass’ industry-leading FORCE 201T welder with premium CK and Furick components. The 7-year warranty and IP23 protection ensure reliability in harsh conditions, while the lightweight 8kg design enables portability without sacrificing power.
Aplicaciones
Perfect for welding Aluminium, Mild Steel, Stainless Steel, Titanium, and copper alloys. Ideal for automotive, aerospace, and fabrication workshops requiring consistent, high-quality results.
Key Performance Features
– Digital LCD controls for precise parameter adjustment
– Pulse width/slope up/down (0-10s) for heat control
– Pre/post gas adjustment (0-2s/0-10s) for clean welds

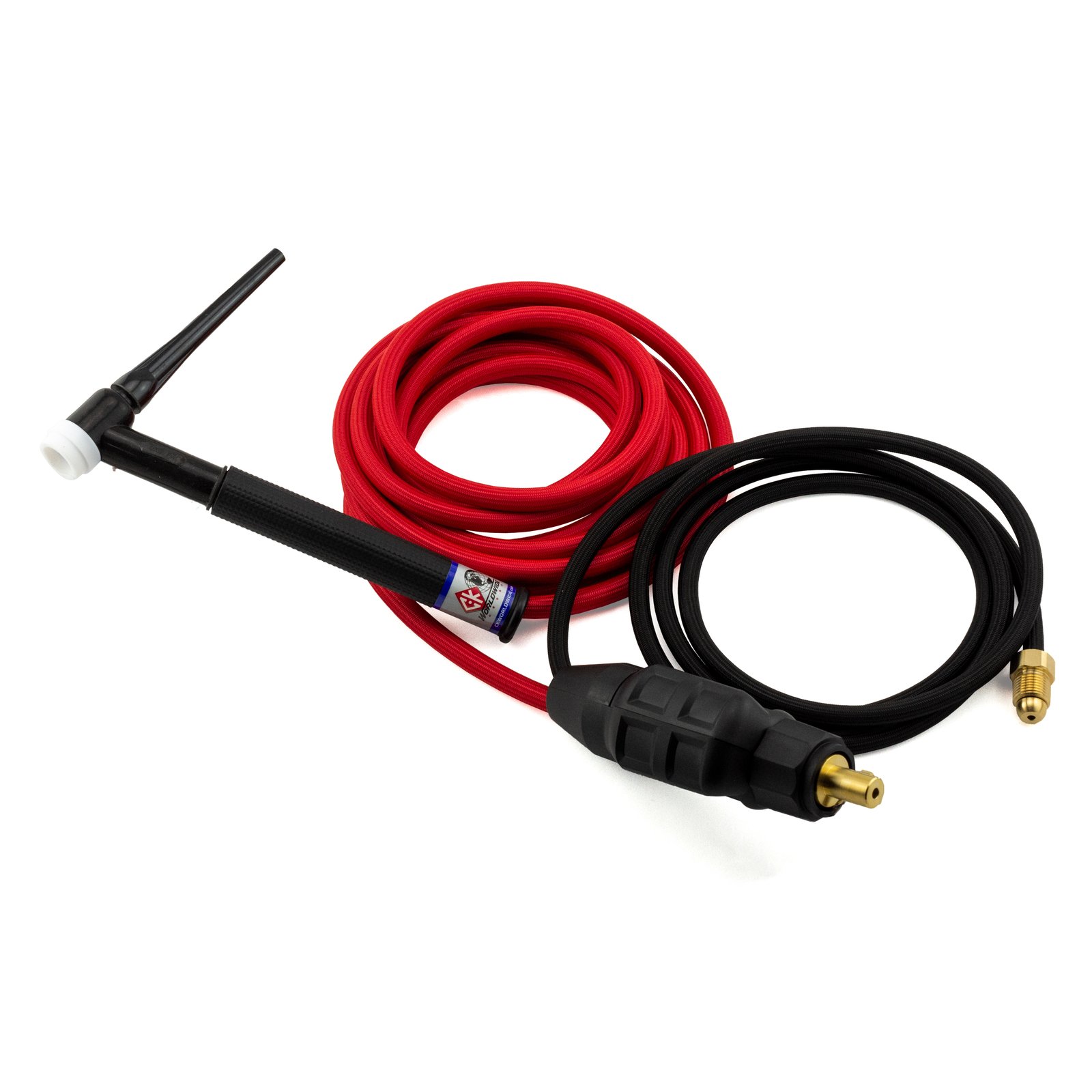

– Super-flex CK17 torch with brass head for durability

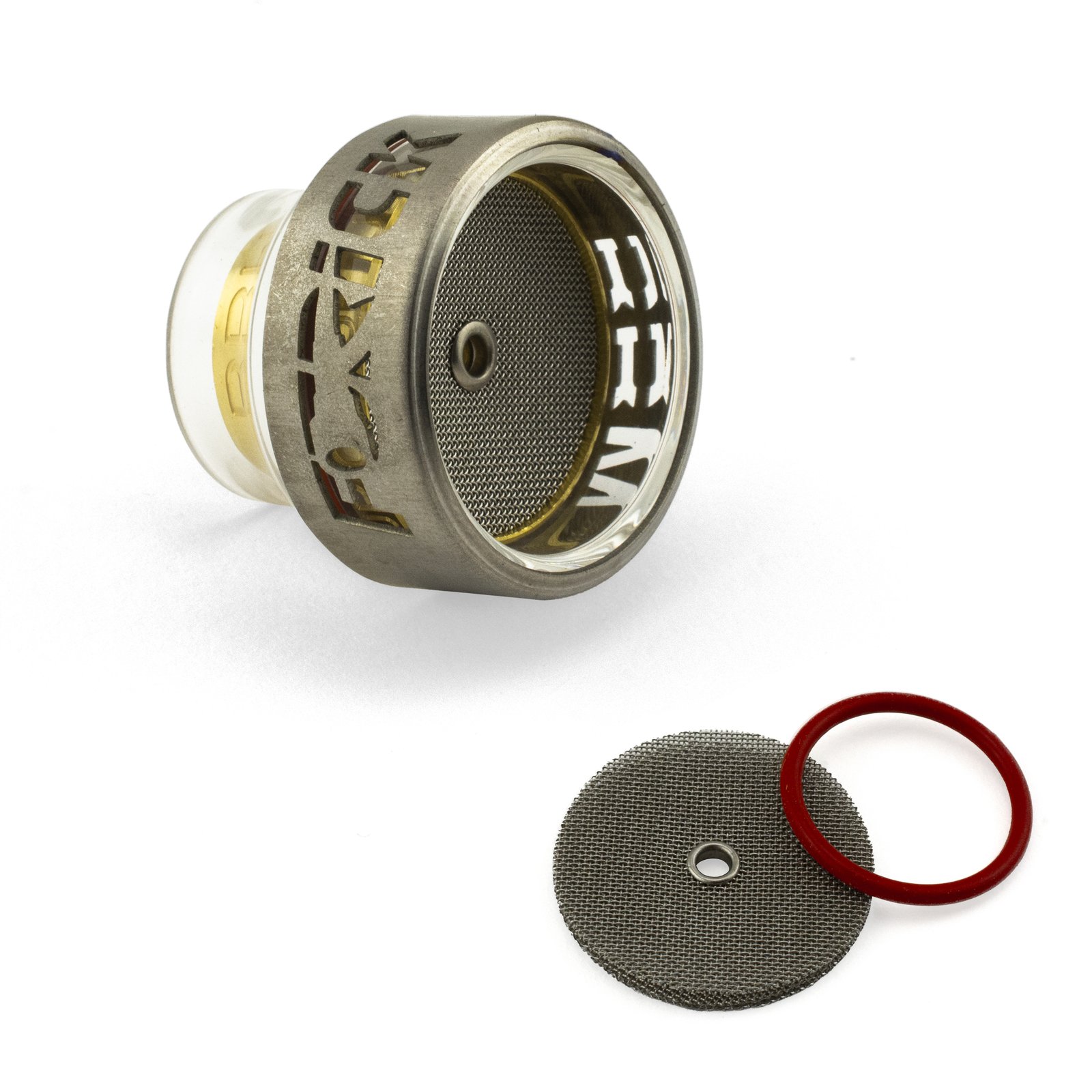

– Furick Pyrex cup with titanium ring for heat resistance up to 180A
Accessory Highlights

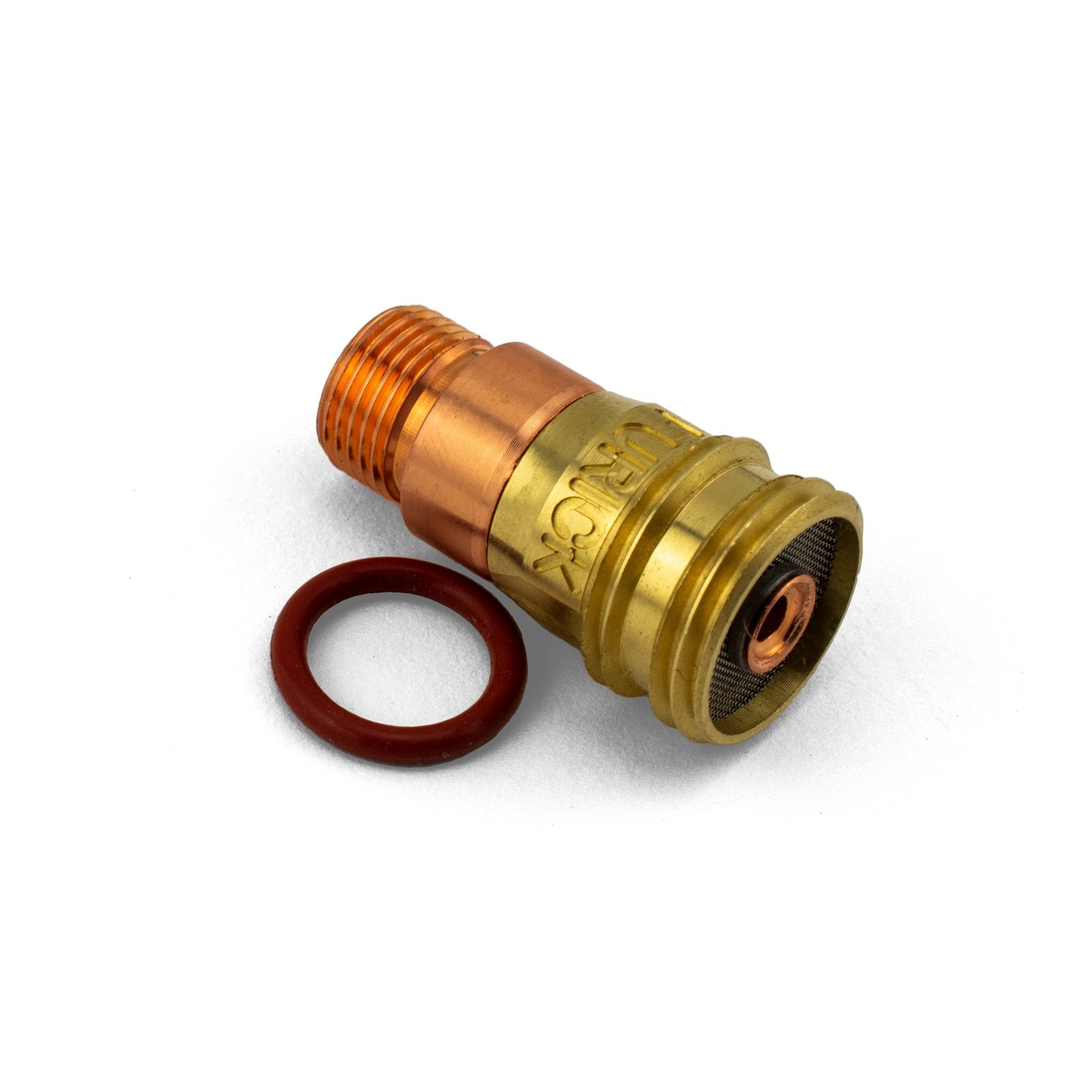

– CK17 Stubby Heatshield Gas Lens: Ensures stable gas coverage
– LaYZr Tungsten Electrodes: 1.5% Lanthanum blend for low amperage arc starting

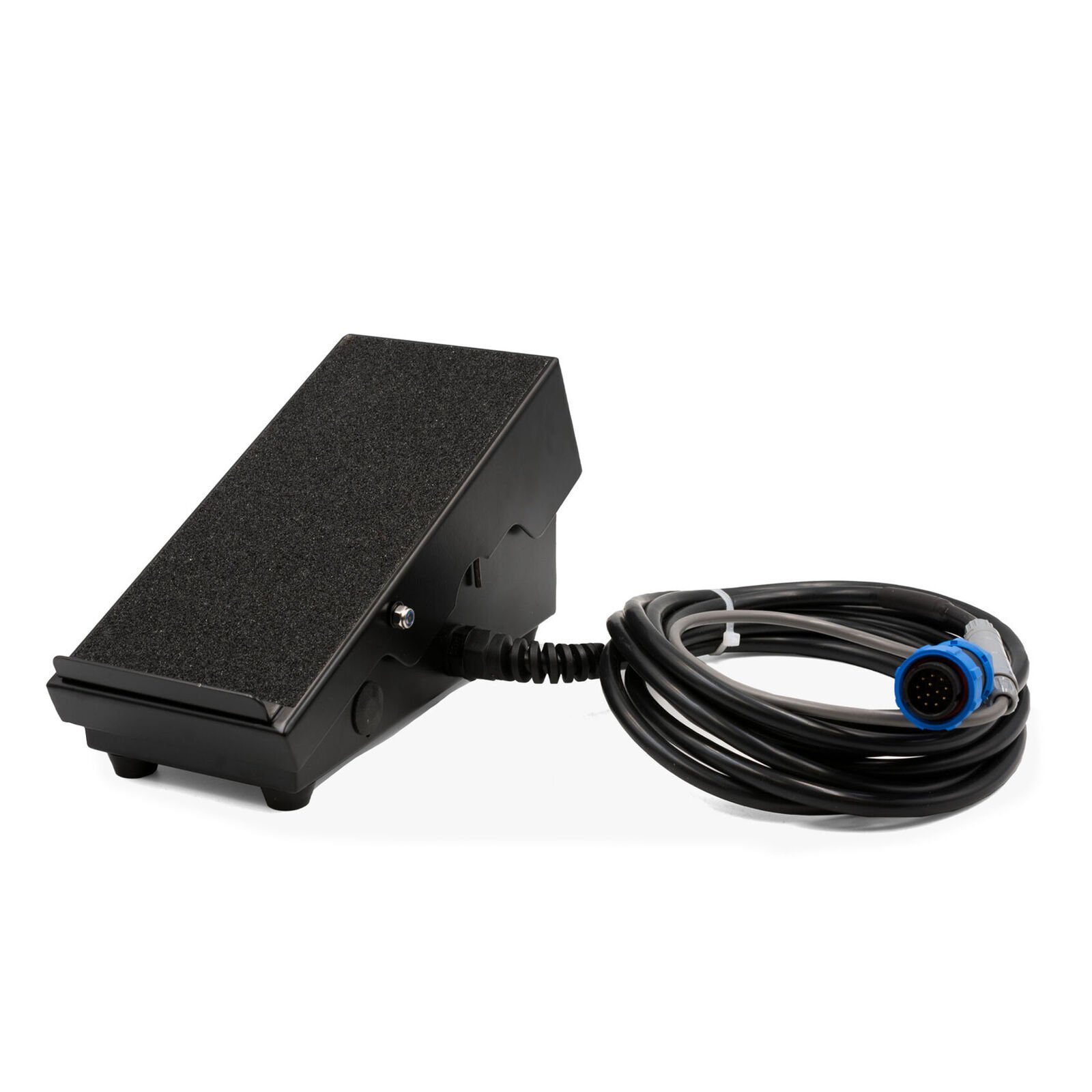

– Heavy-duty foot controller: Fine-tune current during welding
Aseguramiento de Calidad
Every component undergoes rigorous testing, including 440V stress tests. Extended 7-year warranty (registration required) and USA-manufactured parts guarantee long-term performance.
Preguntas Frecuentes
Q: What materials can I weld?
A: Aluminium, Mild Steel, Stainless Steel, Titanium, nickel, and copper alloys.
Q: Is a generator required?
A: Min 8kva generator recommended; 10kva+ ideal for optimal performance.
Q: Can I use different tungsten sizes?
A: Supports up to 3.2mm tungsten with compatible gas lenses.
Ready to Elevate Your Welding?
This TOP SHELF combo delivers professional-grade results for serious welders. Contact us today for pricing and availability!
