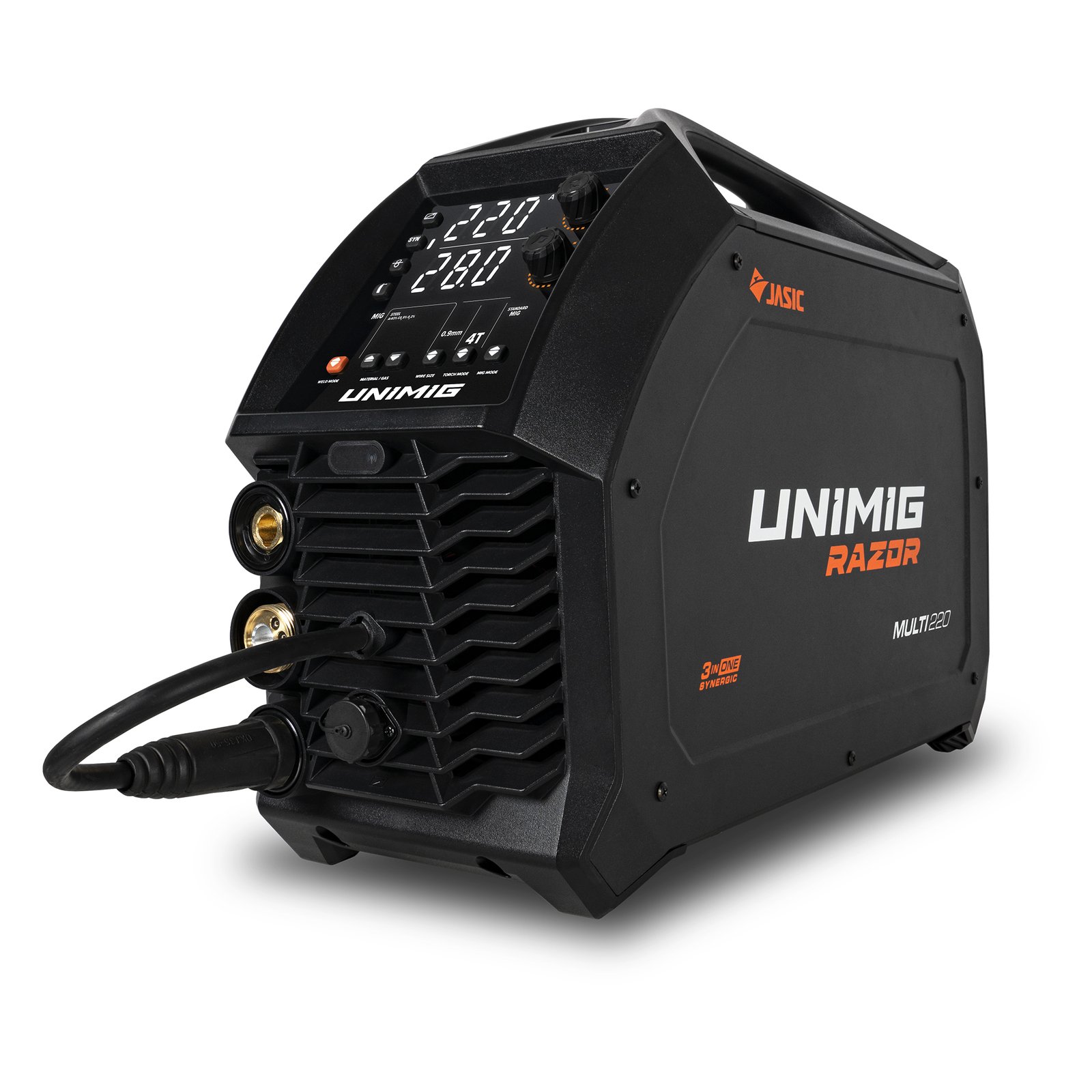

UNIMIG RAZOR MULTI 220 MIG TIG STICK Welder U11008K
$1,665.00
Product Introduction
The UNIMIG RAZOR MULTI 220 is a professional 3-in-1 welding machine (MIG, TIG, STICK) in a portable case, ideal for worksites and workshops. It features 40 KHz IGBT inverter technology, synergic MIG programs, and a 5-year warranty, suitable for mild steel, stainless steel, aluminium, and more.
Key Specifications
| Input Voltage | 240V Single Phase |
| Welding Processes | MIG, TIG, STICK |
| Max Output Current | 220A |
| Weight | 15.1kg |
| Warranty | 5 Years |
UNIMIG RAZOR MULTI 220 MIG | TIG | STICK WELDER – U11008K: Professional 3-in-1 Welding Solution
Unlock professional welding performance with the UNIMIG RAZOR MULTI 220, a portable 3-in-1 machine designed for worksites and workshops. Whether you need MIG, TIG, or STICK welding, this industrial-quality welder delivers precision, power, and versatility in a lightweight package.
Core Specifications at a Glance
| Feature | Details |
|---|---|
| Multi-Process | MIG (Gas/Gasless), TIG (DC Lift Arc), STICK (MMA) |
| Current Range | MIG: 30-220A | TIG: 5-220A | STICK: 20-180A |
| Input Voltage | 240V Single Phase (15A Plug) |
| Wire Compatibility | 0.6-1.2mm (MIG); Spool Gun Ready for Aluminium |
| Duty Cycle (40¡ãC) | 15%@220A / 60%@110A / 100%@85A (MIG/TIG) |
| Technology | 40 KHz IGBT Inverter | Synergic MIG Programs |
| Portability | 15.1kg, Compact Design (560¡Á220¡Á400mm) |
| Safety | IP23S Protection | VRD | Thermal Overload |
| Warranty | 5-Year Nationwide Warranty |
| Included Accessories | MIG Torch, Electrode Holder, Earth Clamp, Regulator & More |
Key Performance Highlights
? Synergic MIG Programs: Quick setup with auto-parameter adjustment for consistent results.
? Lift Arc TIG: Prevents tungsten sticking, ideal for thin materials like copper and stainless steel.
? Geared Wire Drive: Smooth feeding for 0.6-1.2mm wires, with spool gun support for aluminium.
? Smart Features: Soft Start, Crater Fill, and Adjustable Arc Force enhance weld quality.
Versatile Applications
Perfect for general engineers, maintenance workshops, rural operations, panel beaters, and home users. Weld mild steel, stainless steel, cast iron, aluminium, and copper with professional-grade results.
What¡¯s in the Box?
? RAZOR MULTI 220 Welder
? 4m M24 Digital MIG Torch
? 4m Electrode Holder & 300A Earth Clamp
? Twin Gauge Argon Regulator & 1.8m Gas Hose
? 3 Drive Rollers (0.8-1.2mm)
? Operating Manual
Why Choose UNIMIG RAZOR MULTI 220?
? Durability: IP23S rating for dust/water resistance, built to AS/NZ60974.1 standards.
? Efficiency: 40 KHz inverter technology reduces energy use while boosting power.
? Support: 5-year warranty via UNIMIG¡¯s nationwide dealer network.
FAQ
Q: Can it weld aluminium?
A: Yes, with the optional PLSP240A Spool Gun for soft wire feeding.
Q: What generator size is required?
A: Minimum 12.0 kVA for stable operation.
Q: Is it suitable for beginners?
A: Yes, synergic programs simplify setup for all skill levels.
Ready to elevate your welding projects? Contact us today for pricing and technical support!
