MAGMAWELD 7016 3.2mm Low Hydrogen Stick Electrodes 5KG
$79.00
Product Description
Premium MAGMAWELD 7016 low hydrogen stick electrodes, ideal for pipe welding, pressure vessels, and high-toughness steel structures. Offers superior crack resistance with smooth, X-ray quality welds.
Specifications
| Thickness | 3.2mm |
| Length | 350mm |
| Weight | 5kg |
| Standards | AWS/ASME SFA-5.1 E7016 H8 |
| Tensile Strength | 580 N/mm2 |
MAGMAWELD 7016 – Low Hydrogen 3.2mm Stick Electrodes – 5KG Pack
Engineered for professional welders demanding precision and reliability, MAGMAWELD 7016 electrodes deliver unmatched performance in critical welding applications. Whether you’re working on pipelines, pressure vessels, or heavy machinery, these low-hydrogen electrodes ensure superior crack resistance and X-ray quality welds, giving you the confidence to tackle the toughest projects.
Especificaciones básicas
| 350mm | |
| 5kg (167 sticks approx.) | |
| Hydrogen Level | Low (H8/H10) |
| 490 N/mm2 | |
| 580 N/mm2 | |
| 29% | |
| Charpy Impact (-20¡ãC) | 105 J |
| CE, TSE, HAKC | |
| Standards | AWS SFA 5.1, EN ISO 2560 |
Beneficios Clave
- Superior Crack Resistance: Low diffusible hydrogen content minimizes weld defects in high-stress applications
- X-Ray Quality Welds: Smooth, clean deposits with excellent fusion and no undercuts
- Versatile Positions: Ideal for PA, PB, PC, PD, PE, and 4G pipe welding positions
- Industrial Durability: Manufactured to strict international standards for dynamic steel structures
- Cost-Effective: 115% weld metal recovery rate reduces material waste
Aplicaciones
Perfect for welding dynamically loaded steel constructions, bridges, shipbuilding, pipelines, pressure vessels, tanks, boilers, and machinery requiring high toughness. Excellent for root-pass welding and buffer layers on higher carbon steels.
Aseguramiento de Calidad

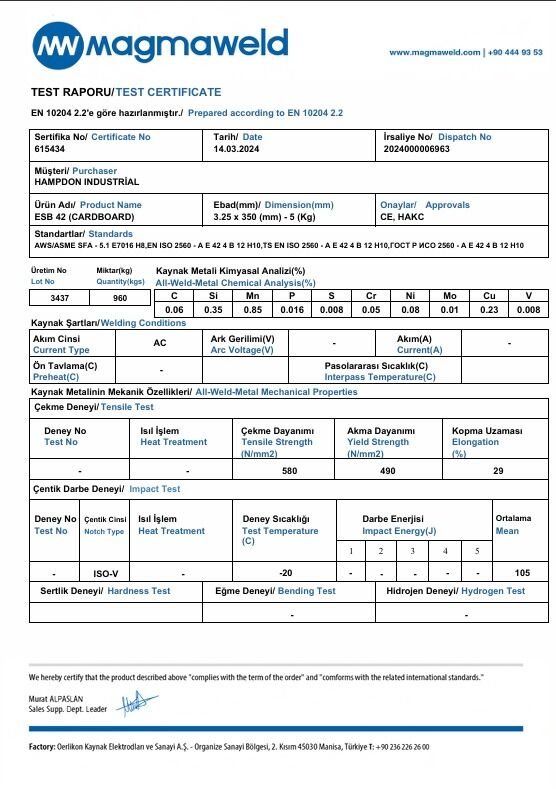

Every pack meets AWS/ASME SFA 5.1 and EN ISO 2560 standards. Backed by CE, TSE, and HAKC certifications, ensuring consistent performance in critical industrial environments.
Preguntas Frecuentes
Q: What is the recommended storage condition?
A: Store in dry conditions. Re-dry at 350¡ãC for 2 hours (maximum 5 re-drying cycles).
Q: Is this equivalent to Bossweld TC16?
A: Yes, directly equivalent to Bossweld TC16 (part# 110410) and Cigweld #53163234G0.
Q: Can it be used for one-sided root pass welding?
A: Yes, designed for melt-through root-pass and one-sided welding with penetration beads.
Ready to elevate your welding projects? Contact us today for bulk pricing and technical support.
