FURICK J10K Pyrex TIG Cup 2 Pack USA Made #10
$79.99

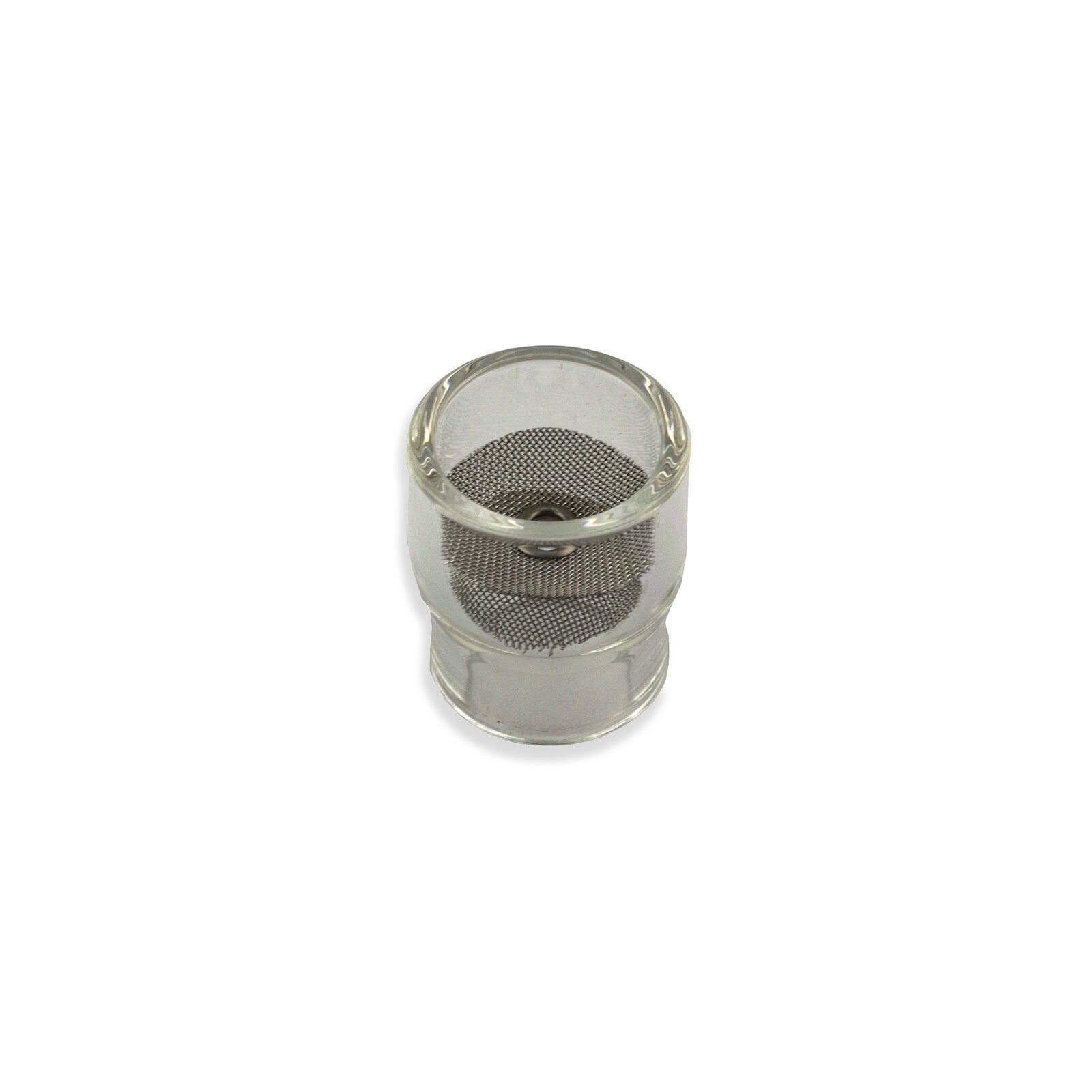

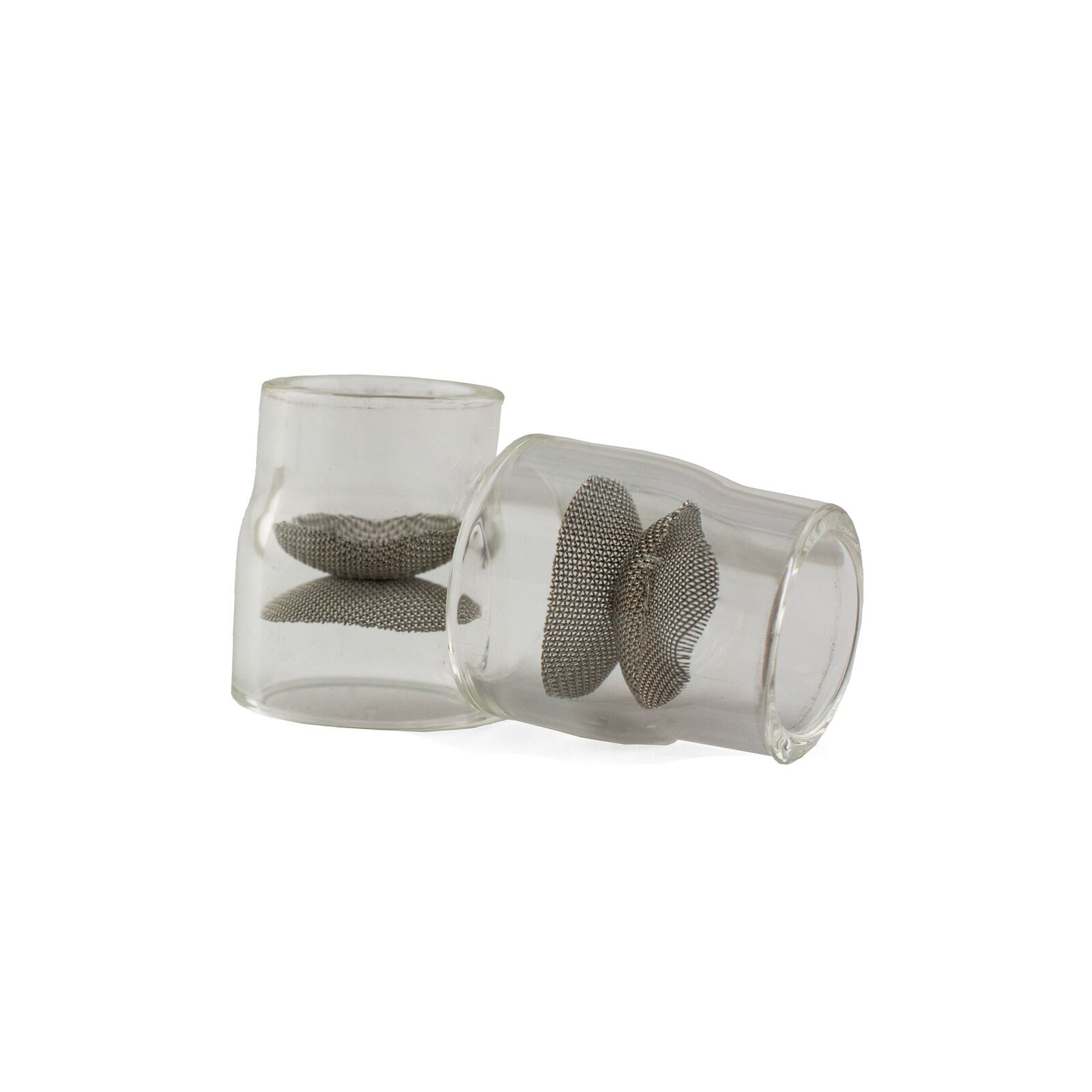

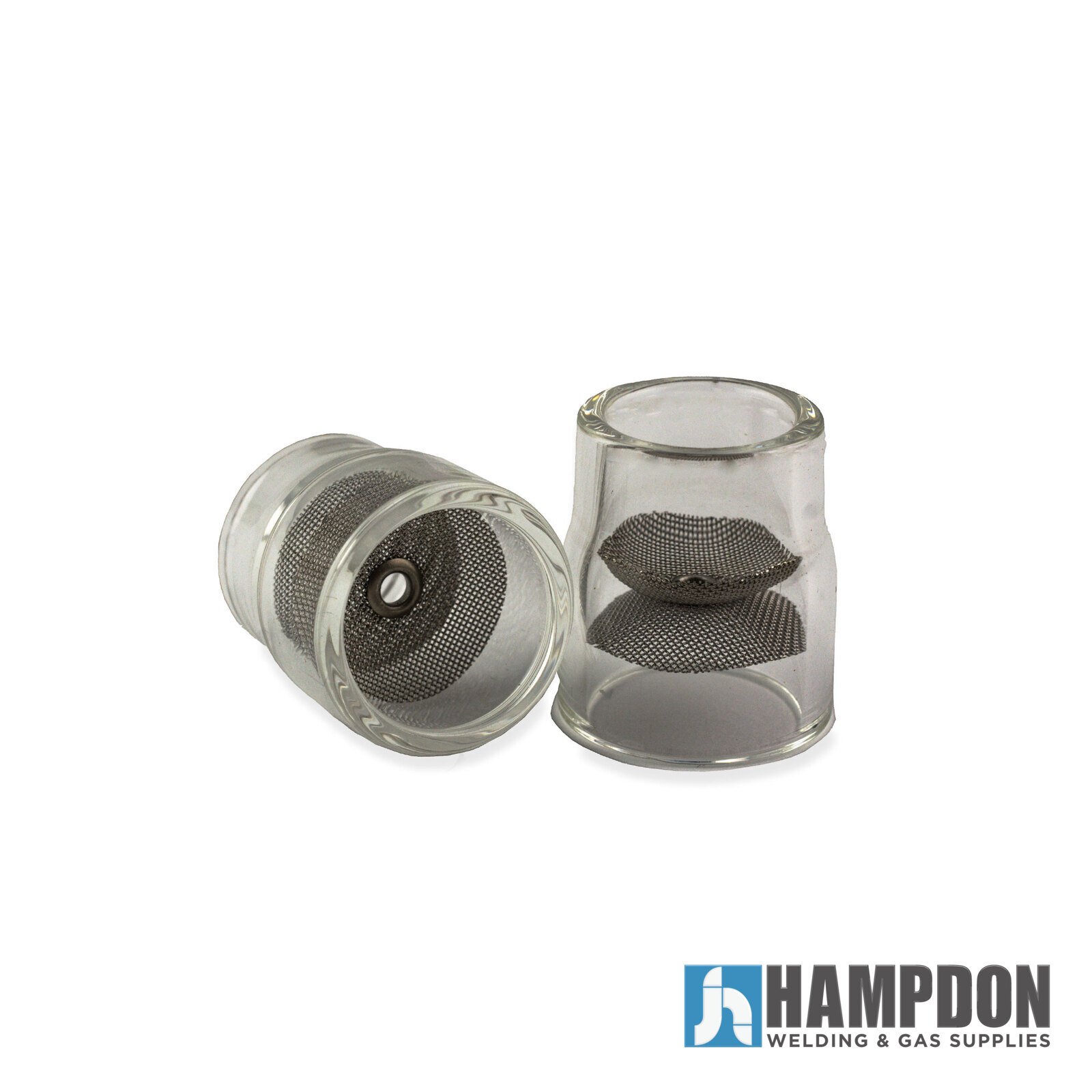

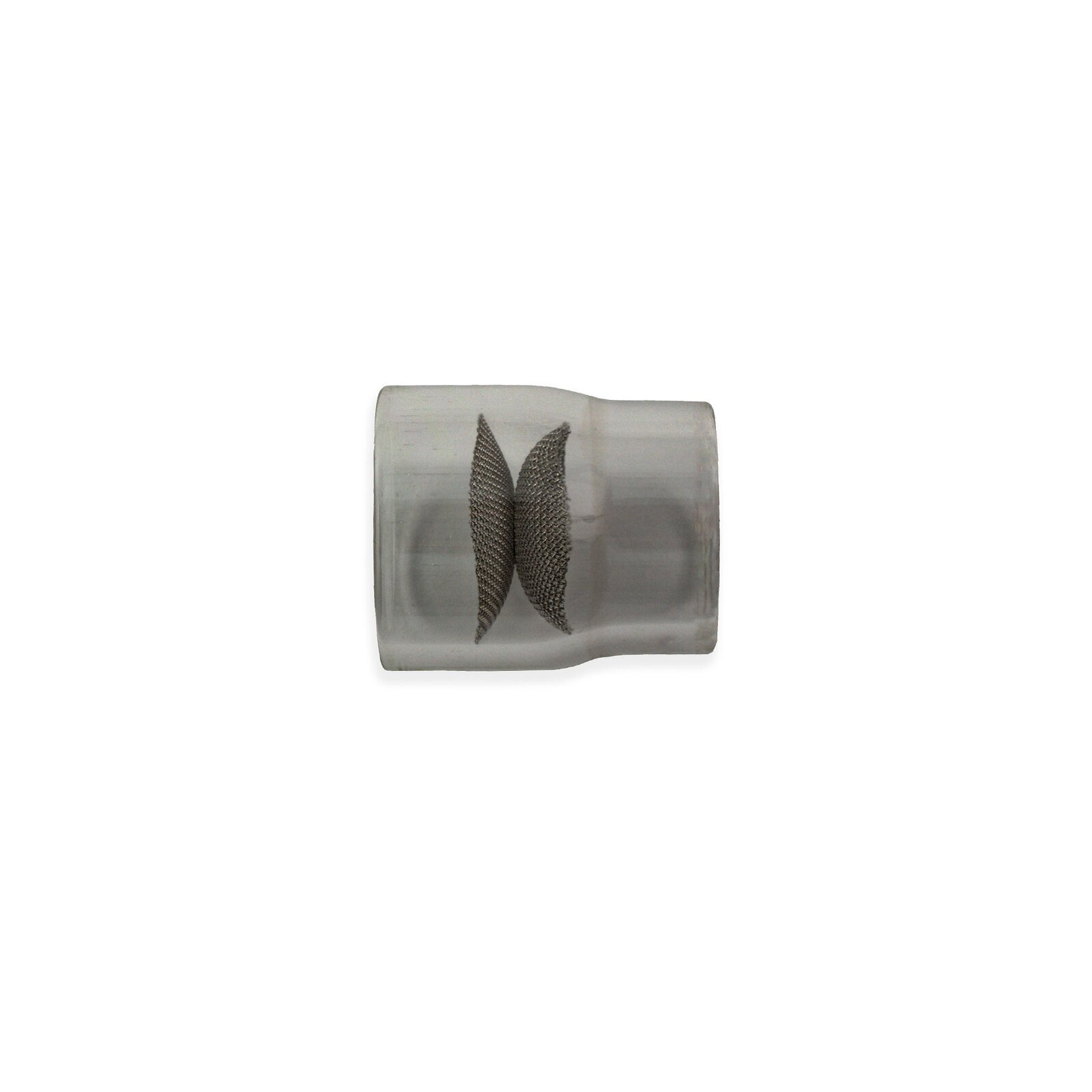

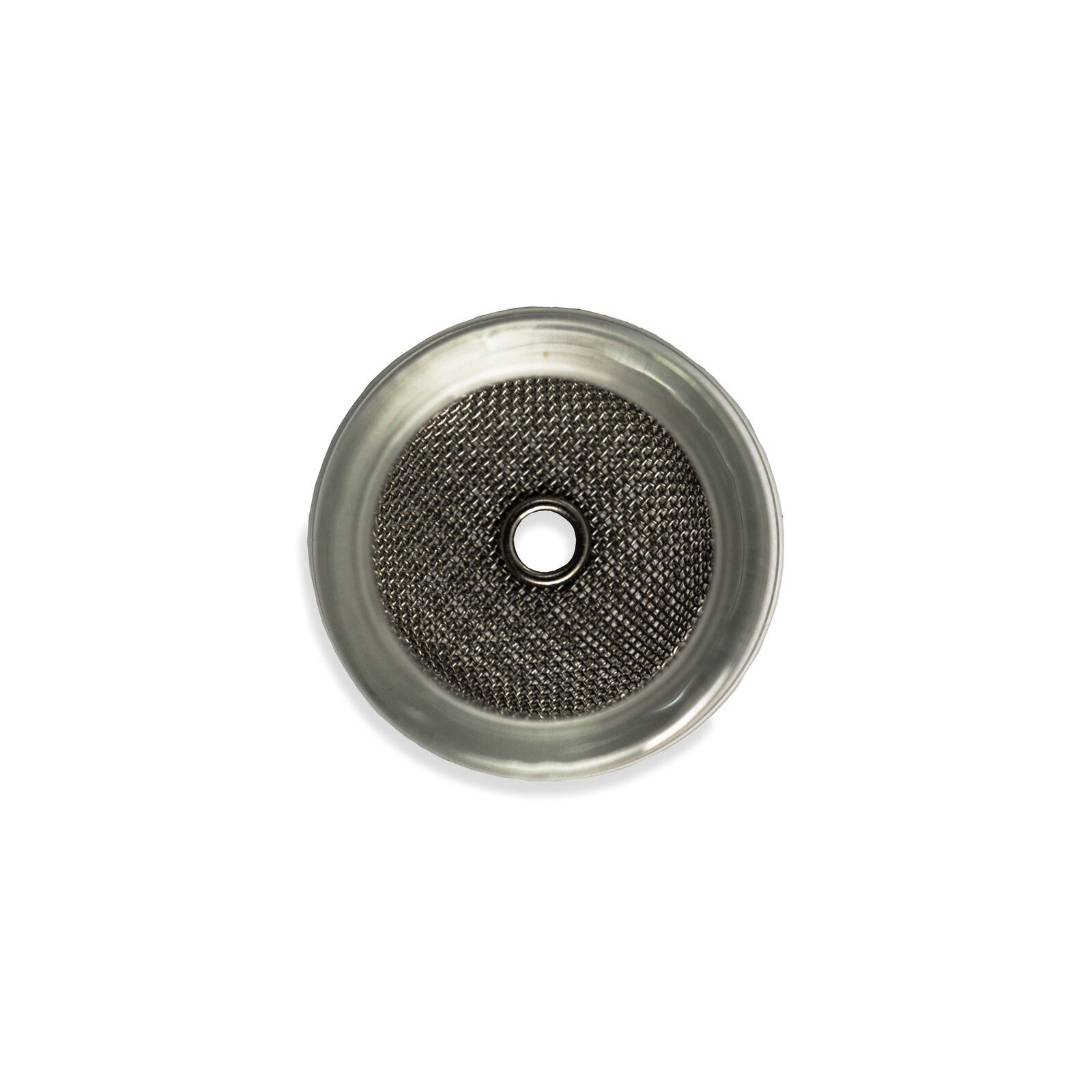

FURICK Jazzy #10 Pyrex TIG Cup – 2 Pack – J10K – Made in USA
Upgrade your TIG welding precision with the FURICK Jazzy #10 Pyrex TIG Cup, a premium 2-pack kit engineered for professional welders seeking unmatched gas coverage and durability. Crafted in the USA, this high-performance cup combines patented diffuser technology with ultra-thick Pyrex construction to deliver consistent results on mild steel and DC applications.
Especificaciones básicas
| 2 Pyrex cups + 1 spare diffuser | |
| Pyrex Thickness | |
| Bore ID/OD | 17.2mm / 22.1mm |
| 25.5mm | |
| Gas Lens Compatibility | 11617GL (1.6mm tungsten), 33217GL (2.4mm tungsten), 45V43/44/45 |
| Amperage Capacity | Up to 175 amps (non-continuous) |
| Gas Flow Rate | 20-25 CFH (8-12 LPM) |
| DC-only, mild steel welding | |
| Patented dual-mesh diffuser design |
Beneficios Clave
- Superior Gas Coverage: Dual mesh filter ensures uniform argon distribution for clean, spatter-free welds
- USA Quality: Precision-manufactured components guarantee long-lasting performance
- Versatile Compatibility: Works with 17/26 series torches (with gas lens) and 9/20 series torches
- Heat Resistance: Thick Pyrex construction handles high amperage welding sessions
- Cost-Effective Pack: Includes 2 cups and spare diffuser for extended productivity
Escenarios de Aplicación
Ideal for professional fabricators and hobbyists working with mild steel in automotive, industrial, or DIY projects. Perfect for DC TIG applications requiring precise heat control and consistent gas shielding.
Ventajas de Rendimiento
Engineered with the same patented diffuser technology as the FUPA12, the Jazzy #10 delivers stable gas flow at 20-25 CFH, reducing post-weld cleanup and improving bead appearance. The 2.8mm Pyrex thickness provides enhanced visibility and resistance to thermal shock.
Why Choose FURICK?
Unlike generic TIG cups, FURICK’s American-made components undergo rigorous quality testing. The dual-mesh diffuser design outperforms standard single-filter cups, ensuring better gas laminar flow and weld integrity.
Preguntas Frecuentes
Q: Does this kit include O-rings?
A: O-rings are required and sold separately.
Q: Can I use this with AC welding?
A: Recommended for DC-only applications.
Q: What tungsten sizes does it support?
A: 1.6mm (with 11617GL) and 2.4mm (with 33217GL) tungsten electrodes.
Ready to elevate your welding precision? Contact us for bulk pricing or technical support on integrating the Jazzy #10 Pyrex TIG Cup into your workflow.
