UNIMIG Razor U12003K 220A Digital Pulse TIG Welder
$1,615.00
Product Introduction
Professional-grade DC TIG welder with pulse functions, 220A max output, and 5-year warranty. Features PFC for 10A domestic plug use, HD backlit interface, and foot control readiness. Suitable for TIG (mild steel, stainless, copper, etc.) and MMA (mild steel, stainless, cast iron) welding.
Key Specifications
| Output Current | 5-220A (TIG), 20-160A (MMA) |
| Voltage | 240V Single Phase |
| Plug Type | 10 AMP Domestic |
| Duty Cycle (TIG) | 20%@220A, 100%@98A |
| Warranty | 5 Years |
UNIMIG Razor Digital Pulse DC 220 Amp Inverter TIG Welder U12003K – Professional-Grade Welding Excellence
Core Specifications
| Output Current Range | 5-220A (TIG), 20-160A (MMA) |
| Input Voltage | 240V Single Phase (10A domestic plug) |
| Key Functions | DC HF TIG, DC Pulse TIG, Advanced MMA |
| Duty Cycle (40¡ãC) | 20%@220A, 60%@127A, 100%@98A (TIG) |
| Welding Thickness | 1-8mm (TIG), 2-10mm (MMA) |
| Interface | HD Backlit Display |
| Protection Class | IP23S |
| Generator Requirement | 7.0 kVA minimum |
| Dimensions | 310¡Á150¡Á460mm |
| Warranty | 5-Year Manufacturer Guarantee |
Why Choose This Welder?
Experience precision welding with the UNIMIG Razor U12003K, engineered for professionals demanding consistent results. Its Power Factor Correction (PFC) technology ensures maximum electrical efficiency, while the 10A plug compatibility lets you operate from any domestic outlet ¨C no industrial power required.
Performance & Versatility
Master any project with dual TIG/MMA capabilities. The digital pulse function delivers superior heat control for thin materials, while the advanced MMA mode improves arc stability with 2.5-4.0mm electrodes. Perfect for mild steel, stainless steel, copper, titanium, and cast iron applications.
User-Centric Design

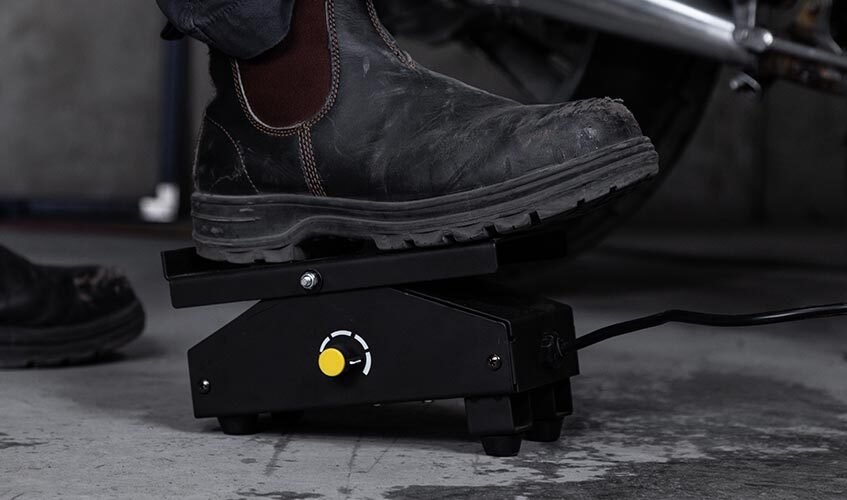

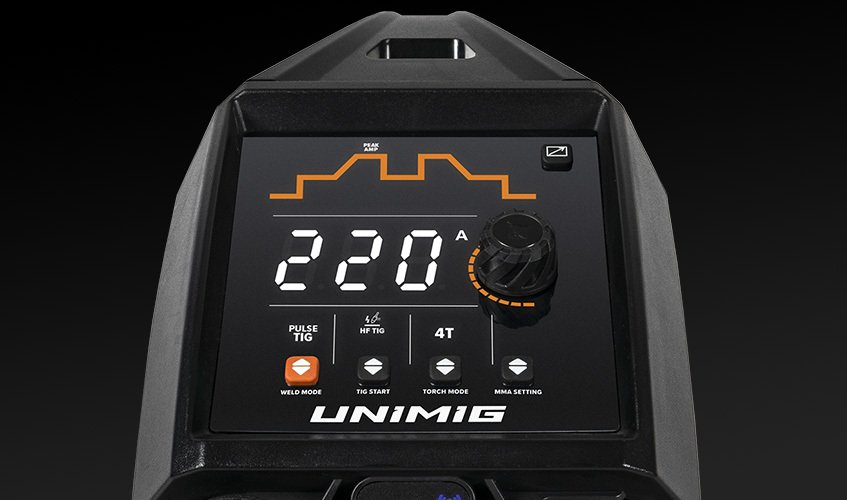

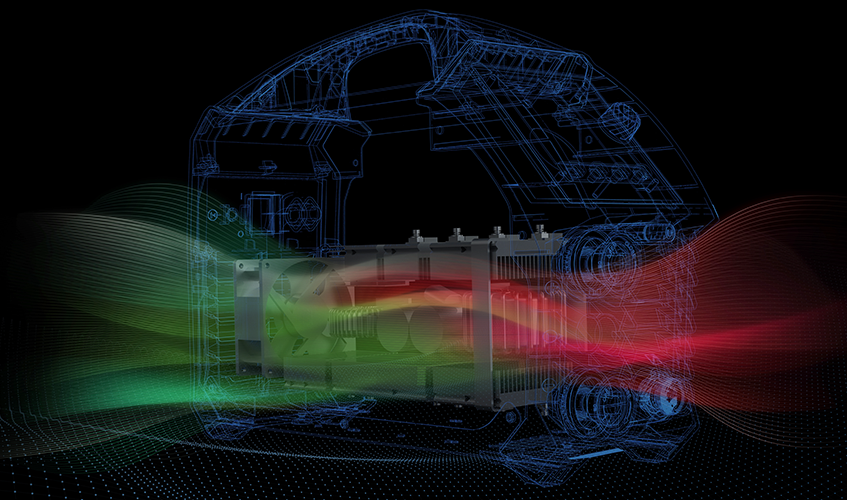

Navigate settings effortlessly via the HD backlit interface. The smart fan system reduces noise and extends component life, while the foot control ready design (accessory sold separately) offers hands-free operation for intricate welds.
Quality Assurance
Backed by a 5-year warranty, this IP23S protected welder meets AS/NZ60974-1 standards. Its H-class insulation ensures safe operation even in harsh environments, making it ideal for workshops, construction sites, and metal fabrication shops.
FAQ
Q: What materials can I weld?
A: TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium; MMA: Mild Steel, Stainless Steel, Cast Iron
Q: Does it require a special power supply?
A: No ¨C operates on standard 240V domestic 10A outlets
Q: Can I use a generator?
A: Yes, with minimum 7.0kVA capacity
Ready to Elevate Your Welding Projects?
Contact us now for bulk pricing, technical support, or to request a product demonstration. Our factory-direct team ensures you get the best value on professional-grade welding equipment.
Packaging & Transportation
