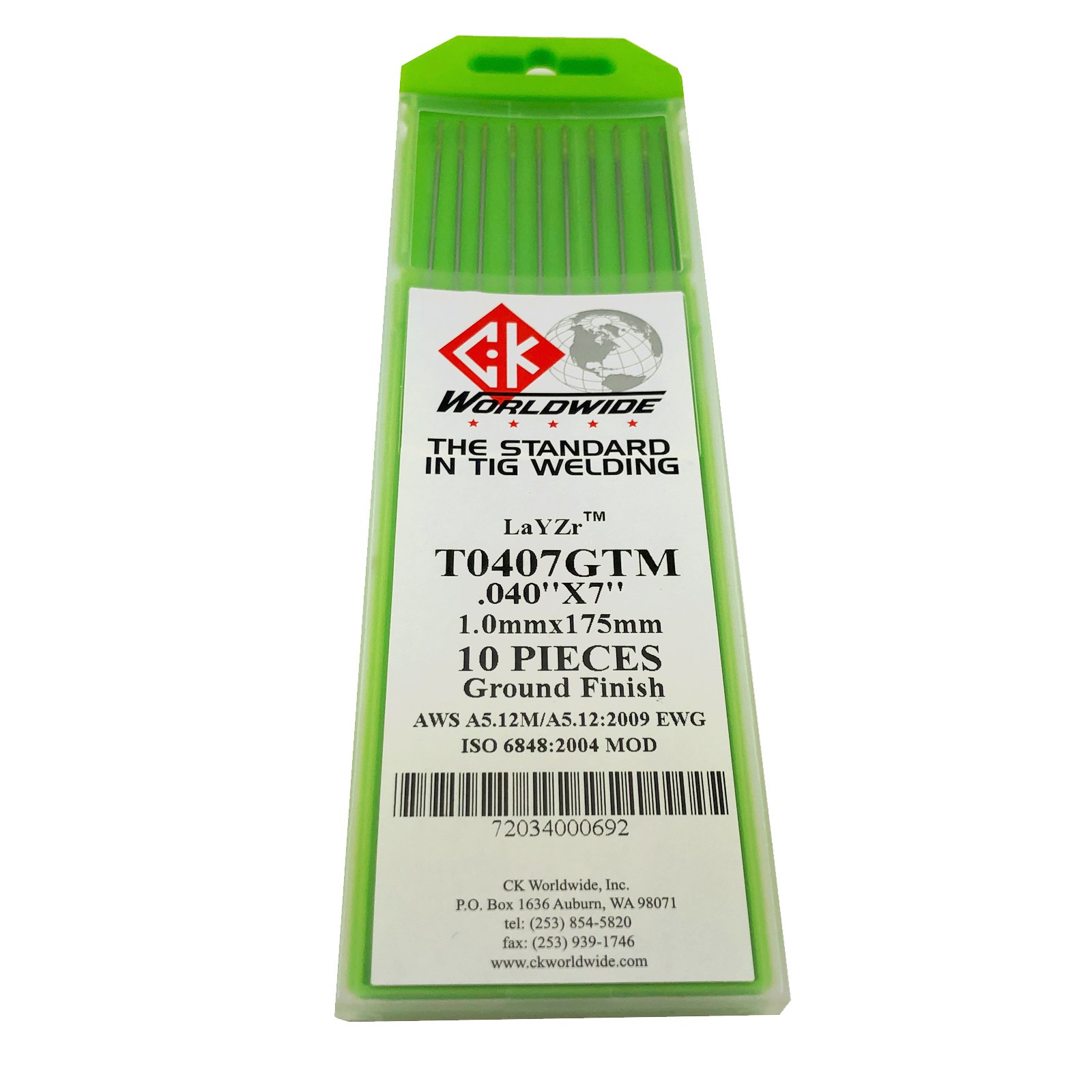

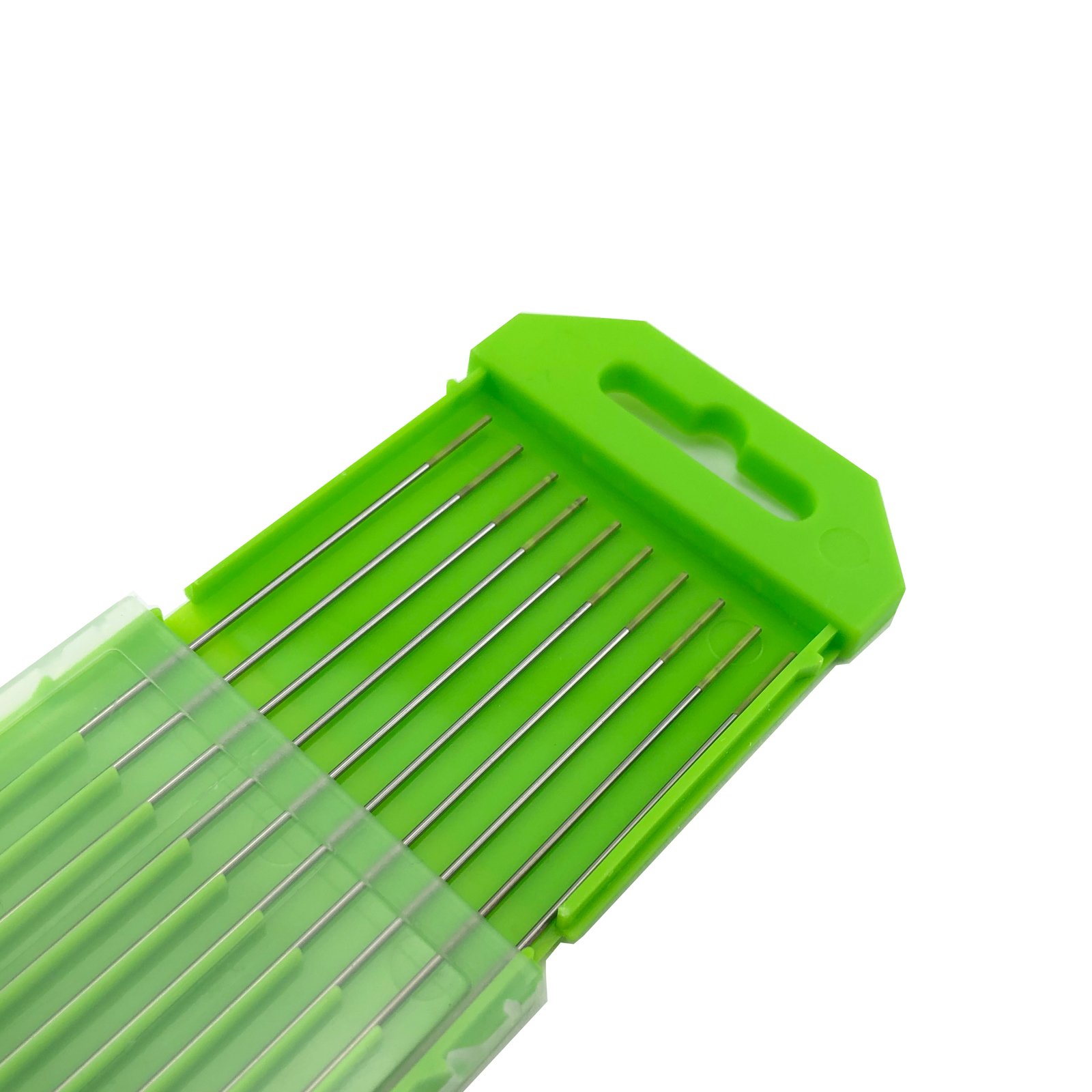

1.0mm LaYZr CK Chartreuse TIG Tungsten Electrodes 10pcs
$29.99
Product Introduction
CK Chartreuse LaYZr TIG Tungsten Electrodes (1.0mm) are ideal for automated/robotic AC/DC applications. They offer excellent arc starts, stable tip geometry, longer life, and work on carbon steel, stainless steel, aluminum, and more, replacing thoriated electrodes.
Specifications
| Pack | 10 Each |
| Diameter x Length | 1.0mm x 175mm |
| Oxide Content | 1.5% Lanthanum, 0.8% Yttrium, 0.8% Zirconium |
| Color | Chartreuse |
| Standards | ANSI/AWS A5.12M/A5.12:2009, ISO 6848:2004 MOD |
1.0mm LaYZr CK Chartreuse TIG Tungsten Electrodes – 10 Pack
Upgrade your welding precision with our premium 1.0mm LaYZr CK Chartreuse TIG Tungsten Electrodes. Engineered for optimal performance in automated, robotic, and manual welding applications, these electrodes deliver unmatched arc stability and longevity¡ªperfect for professionals seeking reliability in every weld.
Core Specifications
| Dimensions | 1.0mm x 175mm |
| Pack Quantity | 10 electrodes |
| Oxide Composition | 1.5% Lanthanum, 0.8% Yttrium, 0.8% Zirconium |
| Color Code | Chartreuse |
| Finish | Ground |
| Amperage Range | Low to medium |
| Power Compatibility | Inverter/transformer constant current (AC/DC) |
| Material Compatibility | Steel, stainless steel, aluminum, titanium, nickel alloys |
| Standards | ANSI/AWS A5.12M/A5.12:2009, ISO 6848:2004 MOD |
| Arc Start | Excellent low-amperage ignition |
Key Benefits
- Superior Arc Stability: Maintains consistent tip geometry for precise welds, even in automated systems.
- Extended Lifespan: Runs cooler than 2% thoriated electrodes, reducing burn-off and replacement costs.
- Multi-Material Versatility: Ideal for carbon steel, stainless steel, aluminum, titanium, and nickel alloys.
- Low Voltage Tolerance: Perfect for AC/DC applications with inverter or transformer power sources.
- Flake-Resistant: Durable construction prevents tip breakdown during high-demand operations.
Applications
Designed for industrial-grade performance, these electrodes excel in:
- Automated/robotic welding systems
- Precision manufacturing (aerospace, automotive, medical)
- Heavy-duty fabrication of steel, aluminum, and exotic alloys
- Low-amperage delicate welding tasks
Why Choose Our LaYZr Electrodes?
Unlike standard thoriated tungsten, our LaYZr blend offers non-radioactive safety without sacrificing performance. The triple-oxide composition ensures smoother arc starts, reduced spatter, and longer electrode life¡ªmaking it the smart choice for cost-conscious professionals.
FAQ
Q: Can these replace thoriated tungsten?
A: Yes, they are a direct, safer alternative with comparable performance.
Q: Are they suitable for AC welding?
A: Yes, optimized for both AC and DC electrode negative applications.
Q: What amperage range works best?
A: Ideal for low to medium amperages; perfect for precision tasks.
Request a Quote
Ready to enhance your welding efficiency? Contact our team for bulk pricing, technical support, or custom packaging options. Send us an inquiry today to elevate your welding operations.
Packaging & Transportation
